1bym
SOLUTION STRUCTURES OF THE C-TERMINAL DOMAIN OF DIPHTHERIA TOXIN REPRESSOR

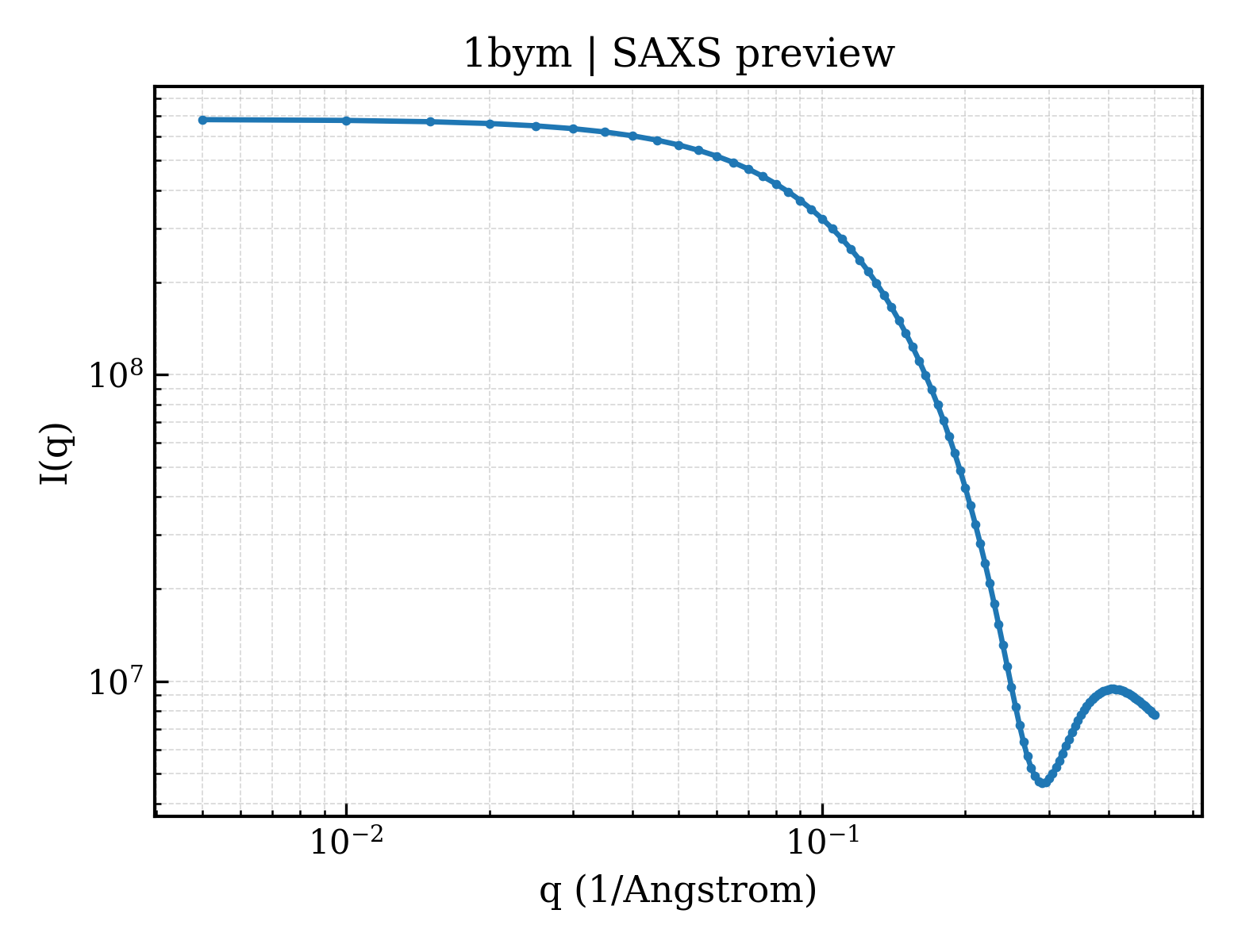

SAXS Profile

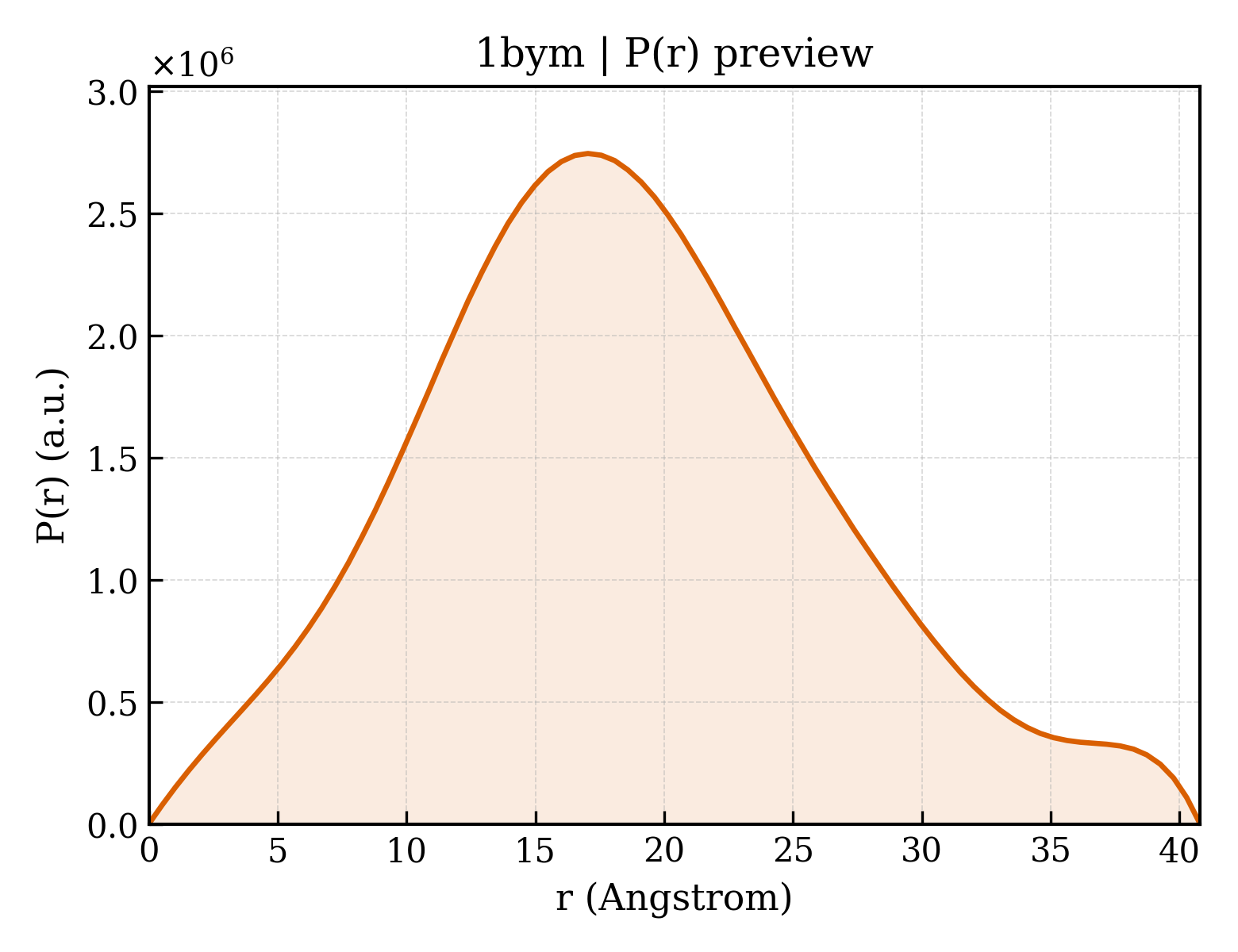

P(r) Distribution
1. Structure Basics
| entry_id | 1bym |
| deposition_date | 1998-10-17 |
| title | SOLUTION STRUCTURES OF THE C-TERMINAL DOMAIN OF DIPHTHERIA TOXIN REPRESSOR |
| keywords | REPRESSOR, DTXR, C-TERMINAL DOMAIN, PROKARYOTIC SH3 DOMAIN, TRANSCRIPTION REGULATION, PEPTIDE-BINDING, GENE REGULATION; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.13 Å |
| rg_electron | 14.76 Å |
| i0 | 681481000.00 |
| molecular_weight | 211760.0 kDa |
| excluded_volume | 262260 ų |
| envelope_volume | 57700 ų |
| shell_volume | 22430 ų |
| envelope_diameter | 74.1 Å |
| shell_rg | 28.71 Å |
| envelope_rg | 22.75 Å |
| shape_rg | 14.75 Å |
| total_rg | 15.22 Å |
| total_atoms | 29660 |
| n_residues | 1940 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.8 Å |
| rg_real | 14.21 Å |
| rg_real_error | 0.05 Å |
| i0_real | 6.4820e+08 |
| i0_real_error | 5.0060e+06 |
| rg_reciprocal | 15.24 Å |
| i0_reciprocal | 681500000.0000 |
| total_estimate | 0.6726 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 17.0 Å |
| skewness | 0.313 |
| kurtosis | -0.167 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.7950 |
| highest_alpha | 392000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.005; Oscil: 0.936; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.000 |
