1bo5

CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE.

Method: X-RAY DIFFRACTION Dmax: 114.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (GLYCEROL KINASE)

Escherichia coli

UniProt P0A6F3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain O； UniProt 2–502 Chain Z； UniProt 2–502 Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT Resolution 3.20 Å
2 Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count Chain O； UniProt 2–502 Chain Z； UniProt 2–502 Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 2 GOL GLYCEROL × 4 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT Resolution 3.20 Å
3 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain O； UniProt 2–502 Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT Resolution 3.20 Å
4 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain Z； UniProt 2–502 Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1BO5 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BOT CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；1M SODIUM CITRATE, 0.1M HEPES PH 7.5, 1MM BME, CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS
Resolution 3.05 Å
1BOT CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-05 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain Z 1–501（501 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；1M SODIUM CITRATE, 0.1M HEPES PH 7.5, 1MM BME, CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS
Resolution 3.05 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain O 1–501（501 aa）
Chain X 1–501（501 aa）
Chain Y 1–501（501 aa）
Chain Z 1–501（501 aa）
Mutation：A65T Mutation：A65T Mutation：A65T Mutation：A65T SO4 SULFATE ION × 6 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：A65T Mutation：A65T SO4 SULFATE ION × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain X 1–501（501 aa）
Chain Z 1–501（501 aa）
Mutation：A65T Mutation：A65T SO4 SULFATE ION × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1BWF ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION Deposited 1998-09-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：S58W Mutation：S58W MG MAGNESIUM ION × 2 ATF PHOSPHODIFLUOROMETHYLPHOSPHONIC ACID-ADENYLATE ESTER × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.00 Å
1GLA STRUCTURE OF THE REGULATORY COMPLEX OF ESCHERICHIA COLI IIIGLC WITH GLYCEROL KINASE Deposited 1992-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded GOL GLYCEROL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å
1GLB STRUCTURE OF THE REGULATORY COMPLEX OF ESCHERICHIA COLI IIIGLC WITH GLYCEROL KINASE Deposited 1992-10-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 GOL GLYCEROL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 MG MAGNESIUM ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 2 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 2 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLD CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded MN MANGANESE (II) ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.93 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 8 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLF CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain O 2–502（501 aa）
Chain X 2–502（501 aa）
Chain Y 2–502（501 aa）
Chain Z 2–502（501 aa）
Not recorded PO4 PHOSPHATE ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 4 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.50
Resolution 2.62 Å
1GLJ ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION Deposited 1998-09-03 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：S58W Mutation：S58W MG MAGNESIUM ION × 1 ATS GAMMA-ARSONO-BETA, GAMMA-METHYLENEADENOSINE-5'-DIPHOSPHATE × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.00 Å
1GLL ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION Deposited 1998-09-24 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：S58W Mutation：S58W MG MAGNESIUM ION × 2 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.00 Å
3EZW Crystal Structure of a Hyperactive Escherichia coli Glycerol Kinase Mutant Gly230 --> Asp Obtained Using Microfluidic Crystallization Devices Deposited 2008-10-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–501（500 aa）
Chain B 2–501（500 aa）
Chain E 2–501（500 aa）
Chain G 2–501（500 aa）
Mutation：G230D Mutation：G230D Mutation：G230D Mutation：G230D GOL GLYCEROL × 4 CL CHLORIDE ION × 4 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 9 X-RAY DIFFRACTION
X-ray crystallization conditions microfluidic free interface diffusion；pH 8.5；298 K；20% PEG 1500, 0.3 M MAGNESIUM CHLORIDE, 0.1 M TRIS-HCL, pH 8.5, microfluidic free interface diffusion, temperature 298K
Resolution 2.00 Å R-free 0.225
3EZW Crystal Structure of a Hyperactive Escherichia coli Glycerol Kinase Mutant Gly230 --> Asp Obtained Using Microfluidic Crystallization Devices Deposited 2008-10-23 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 2–501（500 aa）
Chain D 2–501（500 aa）
Chain F 2–501（500 aa）
Chain H 2–501（500 aa）
Mutation：G230D Mutation：G230D Mutation：G230D Mutation：G230D GOL GLYCEROL × 4 CL CHLORIDE ION × 4 EDO 1,2-ETHANEDIOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions microfluidic free interface diffusion；pH 8.5；298 K；20% PEG 1500, 0.3 M MAGNESIUM CHLORIDE, 0.1 M TRIS-HCL, pH 8.5, microfluidic free interface diffusion, temperature 298K
Resolution 2.00 Å R-free 0.225

12 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GLPK_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain O； PDBConstruct 1–501； UniProt 2–502 Author chain Z； PDBConstruct 1–501； UniProt 2–502

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1bo5

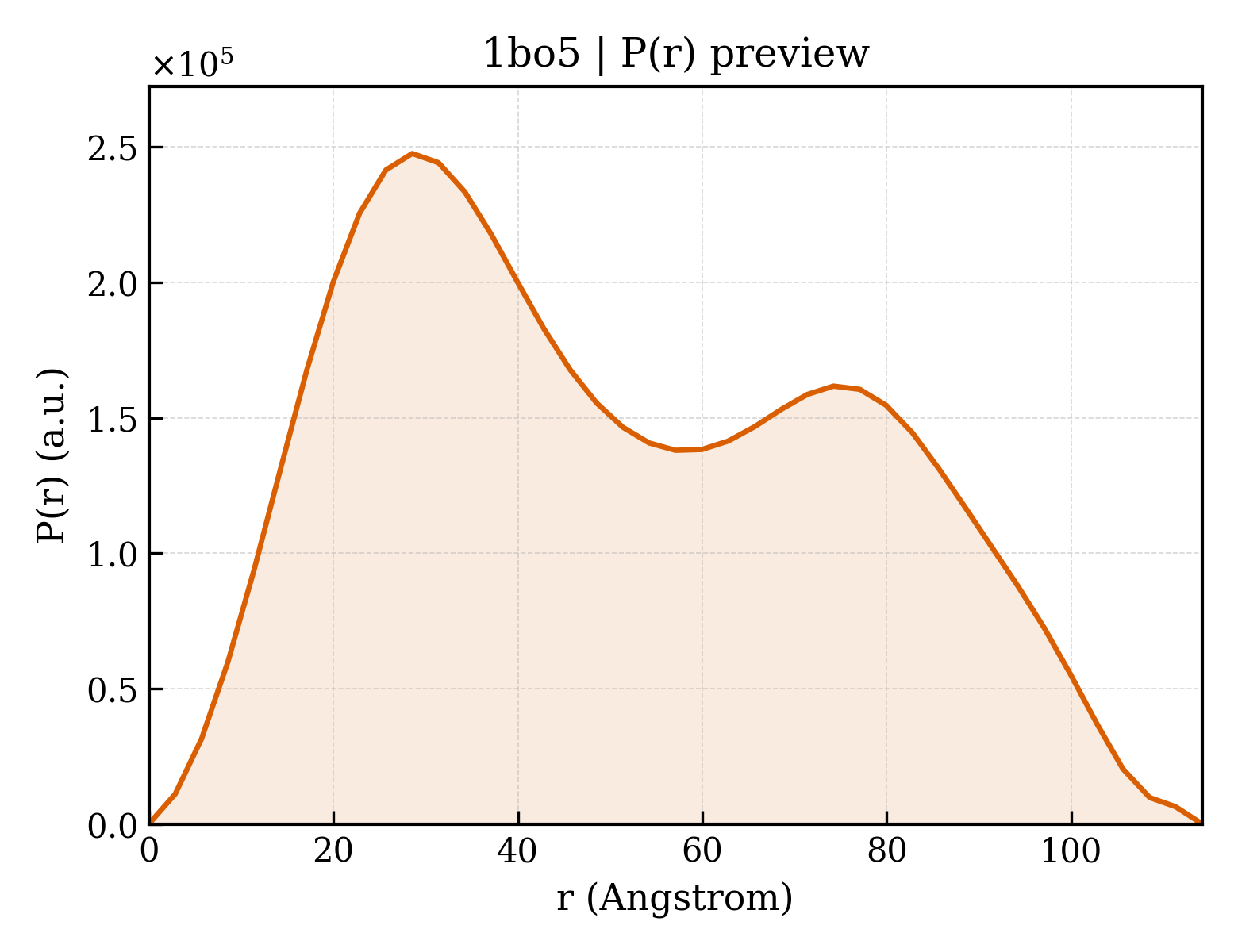

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1bo5
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1bo5
Deposition date deposition_date1998-08-10
Structure title titleCRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE.
Keywords keywordsKINASE, ALLOSTERIC REGULATION, FRUCTOSE BISPHOSPHATE, TRANSFERASE; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier39.60 Å
Radius of gyration Rg (electron density) rg_electron39.48 Å
Forward intensity I(0) i0187803000.00
Molecular weight molecular_weight110790.0 kDa
Excluded volume excluded_volume138080 ų
Envelope volume envelope_volume171430 ų
Hydration-shell volume shell_volume36629 ų
Envelope diameter envelope_diameter119.8 Å
Shell Rg shell_rg44.44 Å
Envelope Rg envelope_rg38.32 Å
Shape Rg shape_rg39.47 Å
Total Rg total_rg39.79 Å
Total atoms total_atoms7798
Residues n_residues996
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax114.2 Å
Rg (real space) rg_real39.91 Å
Rg uncertainty (real space) rg_real_error0.93 Å
I(0) (real space) i0_real1.8780e+08
I(0) uncertainty (real space) i0_real_error3.4280e+06
Rg (reciprocal space) rg_reciprocal39.73 Å
I(0) (reciprocal space) i0_reciprocal187800000.0000
Solution quality estimate total_estimate0.7618
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary28.6 Å
Skewness Skewness skewness0.281
Kurtosis Kurtosis kurtosis-1.026
Angular range angular_range— – 0.2000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha45360000.0000
Real-space data points n_real_points41
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.744; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.666; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd1bo5o1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bo5o2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bo5z1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bo5z2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase

CATH v4.4 (4 domains)

Domain ID domain_id1bo5O01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bo5O02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bo5Z01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bo5Z02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
▶
