1bwf

ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION

Method: X-RAY DIFFRACTION Dmax: 113.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLYCEROL KINASE

Escherichia coli

UniProt P0A6F3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain O； UniProt 1–501 Chain Y； UniProt 1–501 Mutation：S58W MG MAGNESIUM ION × 2 ATF PHOSPHODIFLUOROMETHYLPHOSPHONIC ACID-ADENYLATE ESTER × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5 Resolution 3.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1BWF Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BO5 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 2–502（501 aa）
Chain Z 2–502（501 aa）
Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT
Resolution 3.20 Å
1BO5 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain O 2–502（501 aa）
Chain Z 2–502（501 aa）
Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 2 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT
Resolution 3.20 Å
1BO5 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 2–502（501 aa）
Not recorded FBP 1,6-di-O-phosphono-beta-D-fructofuranose × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT
Resolution 3.20 Å
1BO5 CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-10 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain Z 2–502（501 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；PROTEIN CRYSTALLIZED FROM LIQUOR CONTAINING 1 M SODIUM CITRATE, 0.1 M HEPES PH 7.5, 1 MM BME. CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS. 20 MM FBP WAS ADDED TO THE CRYO PROTECTION IN THE SOAKING EXPERIMENT
Resolution 3.20 Å
1BOT CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-05 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Not recorded EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；1M SODIUM CITRATE, 0.1M HEPES PH 7.5, 1MM BME, CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS
Resolution 3.05 Å
1BOT CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN ESCHERICHIA COLI GLYCEROL KINASE AND THE ALLOSTERIC REGULATOR FRUCTOSE 1,6-BISPHOSPHATE. Deposited 1998-08-05 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain Z 1–501（501 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；1M SODIUM CITRATE, 0.1M HEPES PH 7.5, 1MM BME, CRYO PROTECTION WAS ACHIEVED BY SOAKING CRYSTAL IN MOTHER LIQUOR CONTAINING 20% GLYCEROL FOR 4 HOURS
Resolution 3.05 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain O 1–501（501 aa）
Chain X 1–501（501 aa）
Chain Y 1–501（501 aa）
Chain Z 1–501（501 aa）
Mutation：A65T Mutation：A65T Mutation：A65T Mutation：A65T SO4 SULFATE ION × 6 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：A65T Mutation：A65T SO4 SULFATE ION × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1BU6 CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain X 1–501（501 aa）
Chain Z 1–501（501 aa）
Mutation：A65T Mutation：A65T SO4 SULFATE ION × 3 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；20-22% (W/V) POLYETHYLENE GLYCOL MR 4000 0.2 M LISO4 0.1 M TRIS PH 8.5 - 8.8 CRYSTALLIZED BY HANGING DROP VAPOR DIFFUSION AT ROOM TEMPERATURE., vapor diffusion - hanging drop
Resolution 2.37 Å
1GLA STRUCTURE OF THE REGULATORY COMPLEX OF ESCHERICHIA COLI IIIGLC WITH GLYCEROL KINASE Deposited 1992-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded GOL GLYCEROL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å
1GLB STRUCTURE OF THE REGULATORY COMPLEX OF ESCHERICHIA COLI IIIGLC WITH GLYCEROL KINASE Deposited 1992-10-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 GOL GLYCEROL × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.60 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 MG MAGNESIUM ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 2 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLC CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 2 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.65 Å
1GLD CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded MN MANGANESE (II) ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.93 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 8 G3H GLYCERALDEHYDE-3-PHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLE CATION PROMOTED ASSOCIATION (CPA) OF A REGULATORY AND TARGET PROTEIN IS CONTROLLED BY PHOSPHORYLATION Deposited 1994-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–501（501 aa）
Not recorded ZN ZINC ION × 4 G3H GLYCERALDEHYDE-3-PHOSPHATE × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.94 Å
1GLF CRYSTAL STRUCTURES OF ESCHERICHIA COLI GLYCEROL KINASE AND THE MUTANT A65T IN AN INACTIVE TETRAMER: CONFORMATIONAL CHANGES AND IMPLICATIONS FOR ALLOSTERIC REGULATION Deposited 1998-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain O 2–502（501 aa）
Chain X 2–502（501 aa）
Chain Y 2–502（501 aa）
Chain Z 2–502（501 aa）
Not recorded PO4 PHOSPHATE ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 4 GOL GLYCEROL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.50
Resolution 2.62 Å
1GLJ ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION Deposited 1998-09-03 Different ligand/ion Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：S58W Mutation：S58W MG MAGNESIUM ION × 1 ATS GAMMA-ARSONO-BETA, GAMMA-METHYLENEADENOSINE-5'-DIPHOSPHATE × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.00 Å
1GLL ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION Deposited 1998-09-24 Different ligand/ion Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain O 1–501（501 aa）
Chain Y 1–501（501 aa）
Mutation：S58W Mutation：S58W MG MAGNESIUM ION × 2 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 2 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 3.00 Å
3EZW Crystal Structure of a Hyperactive Escherichia coli Glycerol Kinase Mutant Gly230 --> Asp Obtained Using Microfluidic Crystallization Devices Deposited 2008-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 2–501（500 aa）
Chain B 2–501（500 aa）
Chain E 2–501（500 aa）
Chain G 2–501（500 aa）
Mutation：G230D Mutation：G230D Mutation：G230D Mutation：G230D GOL GLYCEROL × 4 CL CHLORIDE ION × 4 MG MAGNESIUM ION × 1 EDO 1,2-ETHANEDIOL × 9 X-RAY DIFFRACTION
X-ray crystallization conditions microfluidic free interface diffusion；pH 8.5；298 K；20% PEG 1500, 0.3 M MAGNESIUM CHLORIDE, 0.1 M TRIS-HCL, pH 8.5, microfluidic free interface diffusion, temperature 298K
Resolution 2.00 Å R-free 0.225
3EZW Crystal Structure of a Hyperactive Escherichia coli Glycerol Kinase Mutant Gly230 --> Asp Obtained Using Microfluidic Crystallization Devices Deposited 2008-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain C 2–501（500 aa）
Chain D 2–501（500 aa）
Chain F 2–501（500 aa）
Chain H 2–501（500 aa）
Mutation：G230D Mutation：G230D Mutation：G230D Mutation：G230D GOL GLYCEROL × 4 CL CHLORIDE ION × 4 EDO 1,2-ETHANEDIOL × 10 X-RAY DIFFRACTION
X-ray crystallization conditions microfluidic free interface diffusion；pH 8.5；298 K；20% PEG 1500, 0.3 M MAGNESIUM CHLORIDE, 0.1 M TRIS-HCL, pH 8.5, microfluidic free interface diffusion, temperature 298K
Resolution 2.00 Å R-free 0.225

12 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GLPK_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain O； PDBConstruct 1–501； UniProt 1–501 Author chain Y； PDBConstruct 1–501； UniProt 1–501

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1bwf

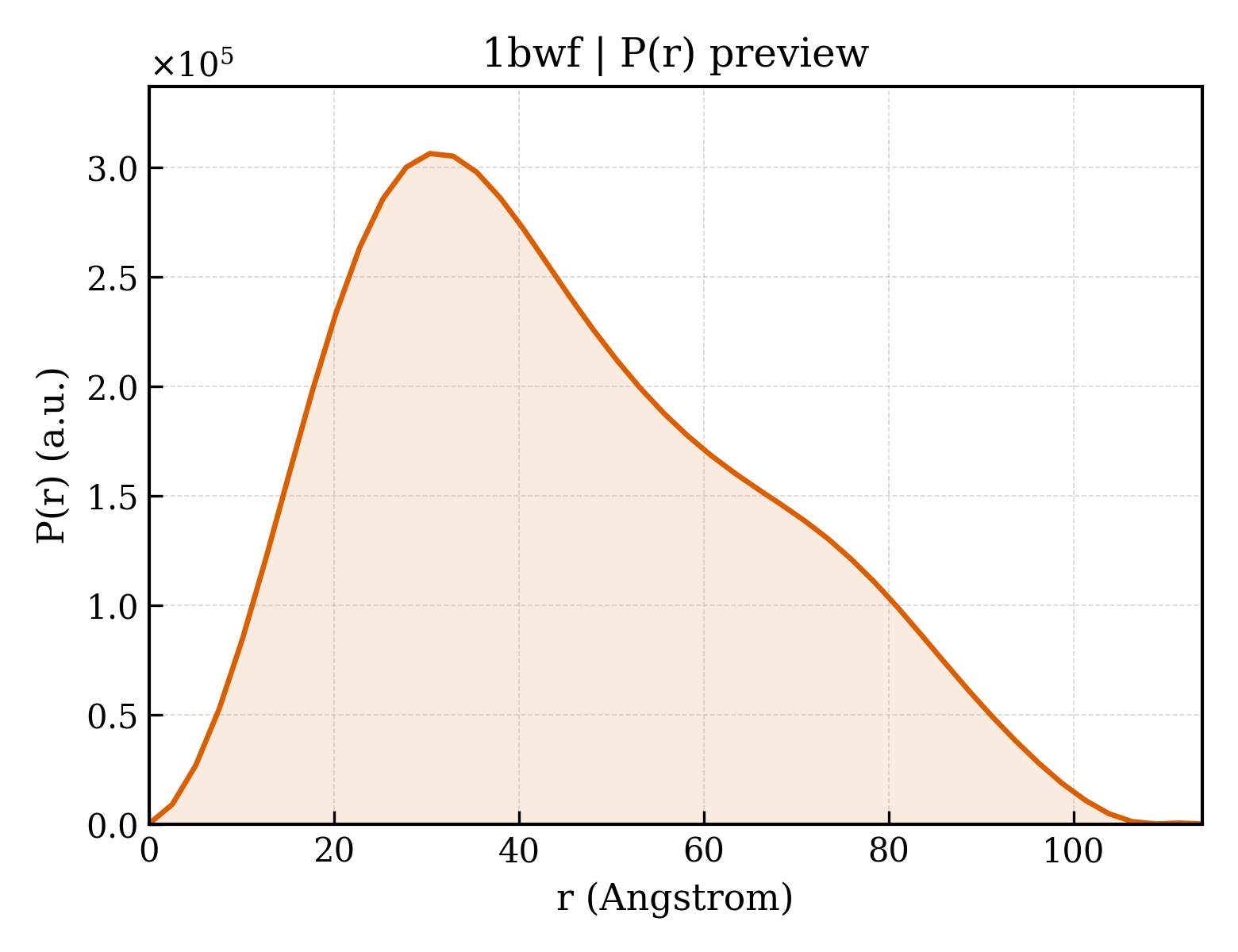

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1bwf
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1bwf
Deposition date deposition_date1998-09-23
Structure title titleESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION
Keywords keywordsTRANSFERASE, KINASE, DOMAIN MOTION, ALLOSTERIC REGULATION HYDROLASE, LIPID DEGRADATION, PLATELET FACTOR; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier34.80 Å
Radius of gyration Rg (electron density) rg_electron34.66 Å
Forward intensity I(0) i0200333000.00
Molecular weight molecular_weight112370.0 kDa
Excluded volume excluded_volume139700 ų
Envelope volume envelope_volume163240 ų
Hydration-shell volume shell_volume40683 ų
Envelope diameter envelope_diameter115.8 Å
Shell Rg shell_rg39.91 Å
Envelope Rg envelope_rg34.61 Å
Shape Rg shape_rg34.65 Å
Total Rg total_rg35.03 Å
Total atoms total_atoms7900
Residues n_residues988
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax113.9 Å
Rg (real space) rg_real35.00 Å
Rg uncertainty (real space) rg_real_error0.85 Å
I(0) (real space) i0_real2.0030e+08
I(0) uncertainty (real space) i0_real_error3.4520e+06
Rg (reciprocal space) rg_reciprocal34.88 Å
I(0) (reciprocal space) i0_reciprocal200300000.0000
Solution quality estimate total_estimate0.7870
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary30.4 Å
Skewness Skewness skewness0.450
Kurtosis Kurtosis kurtosis-0.584
Angular range angular_range— – 0.2250 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha125700000.0000
Real-space data points n_real_points46
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.881; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd1bwfo1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bwfo2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bwfy1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase
Domain ID domain_idd1bwfy2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamilyc.55.1 — Actin-like ATPase domain
Family Family familyc.55.1.4 — Glycerol kinase

CATH v4.4 (4 domains)

Domain ID domain_id1bwfO01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bwfO02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bwfY01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
Domain ID domain_id1bwfY02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily40 — ATPase, nucleotide binding domain
▶
