SAXSdb — 1gll

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gll
沉积日期 deposition_date	1998-09-24
结构标题 title	ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION
关键词 keywords	PHOSPHOTRANSFERASE, KINASE, DOMAIN MOTION, ALLOSTERIC REGULATION; PHOSPHOTRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.85 Å
回转半径 Rg (电子) rg_electron	34.70 Å
零角强度 I(0) i0	199904000.00
分子量 molecular_weight	112290.0 kDa
排除体积 excluded_volume	139670 Å³
包络体积 envelope_volume	163540 Å³
水化壳体积 shell_volume	40733 Å³
包络直径 envelope_diameter	117.3 Å
壳层 Rg shell_rg	39.86 Å
包络 Rg envelope_rg	34.64 Å
形状 Rg shape_rg	34.69 Å
总 Rg total_rg	35.06 Å
总原子数 total_atoms	7896
残基数 n_residues	988
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	114.5 Å
Rg (实空间) rg_real	35.05 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	1.9990e+08
I(0) 误差 (实空间) i0_real_error	2.9880e+06
Rg (倒空间) rg_reciprocal	34.93 Å
I(0) (倒空间) i0_reciprocal	199900000.0000
解质量估计 total_estimate	0.8417
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.5 Å
偏度 Skewness skewness	0.452
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	120500000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.776; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.878; Smooth: 0.731

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	GLYCEROL KINASE
分子量 formula_weight	56261.5 kDa
EC 编号 ec_number	2.7.1.30
突变 mutation	S58W
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y,O
原子数 atom_count	7896

TEKKYIVALDQGTTSSRAVVMDHDANIISVSQREFEQIYPKPGWVEHDPMEIWATQSWTLVEVLAKADISSDQIAAIGITNQRETTIVWEKETGKPIYNAIVWQCRRTAEICEHLKRDGLEDYIRSNTGLVIDPYFSGTKVKWILDHVEGSRERARRGELLFGTVDTWLIWKMTQGRVHVTDYTNASRTMLFNIHTLDWDDKMLEVLDIPREMLPEVRRSSEVYGQTNIGGKGGTRIPISGIAGDQQAALFGQLCVKEGMAKNTYGTGCFMLMNTGEKAVKSENGLLTTIACGPTGEVNYALEGAVFMAGASIQWLRDEMKLINDAYDSEYFATKVQNTNGVYVVPAFTGLGAPYWDPYARGAIFGLTRGVNANHIIRATLESIAYQTRDVLEAMQADSGIRLHALRVDGGAVANNFLMQFQSDILGTRVERPEVREVTALGAAYLAGLAVGFWQNLDELQEKAVIEREFRPGIETTERNYRYAGWKKAVKRAMAWEEHDE

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
分子量 formula_weight	505.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1gllo1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.4 — Glycerol kinase

结构域编号 domain_id	d1gllo2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.4 — Glycerol kinase

结构域编号 domain_id	d1glly1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.4 — Glycerol kinase

结构域编号 domain_id	d1glly2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.4 — Glycerol kinase

CATH v4.4 (4 domains)

结构域编号 domain_id	1gllO01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	1gllO02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	1gllY01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	1gllY02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	99.766 Å
晶胞边长 b length_b	201.148 Å
晶胞边长 c length_c	114.340 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.1760
R_free r_free	—

fit	/app/data/saxs_computation/gl/1gll/1gll.fit
pddf	/app/data/pr_computation/gl/1gll/1gll.pr.out
profile	/app/data/saxs_computation/gl/1gll/1gll.dat

ESCHERICHIA COLI GLYCEROL KINASE MUTANT WITH BOUND ATP ANALOG SHOWING SUBSTANTIAL DOMAIN MOTION

SAXS 散射曲线 SAXS Profile

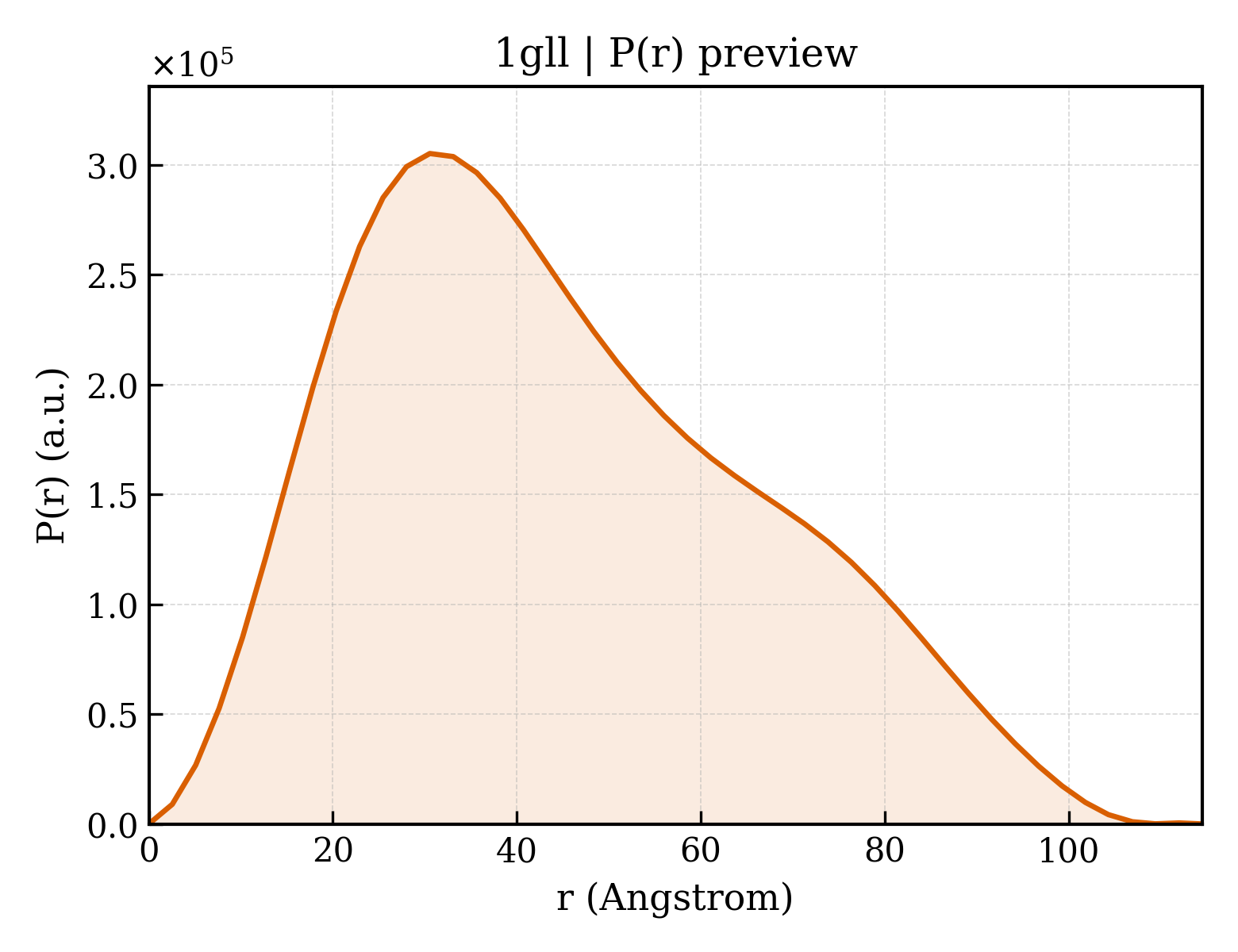

P(r) 距离分布 P(r) Distribution
