1bon
;THREE-DIMENSIONAL STRUCTURE OF BOMBYXIN-II, AN INSULIN-RELATED BRAIN-SECRETORY PEPTIDE OF THE SILKMOTH BOMBYX MORI: COMPARISON WITH INSULIN AND RELAXIN ;

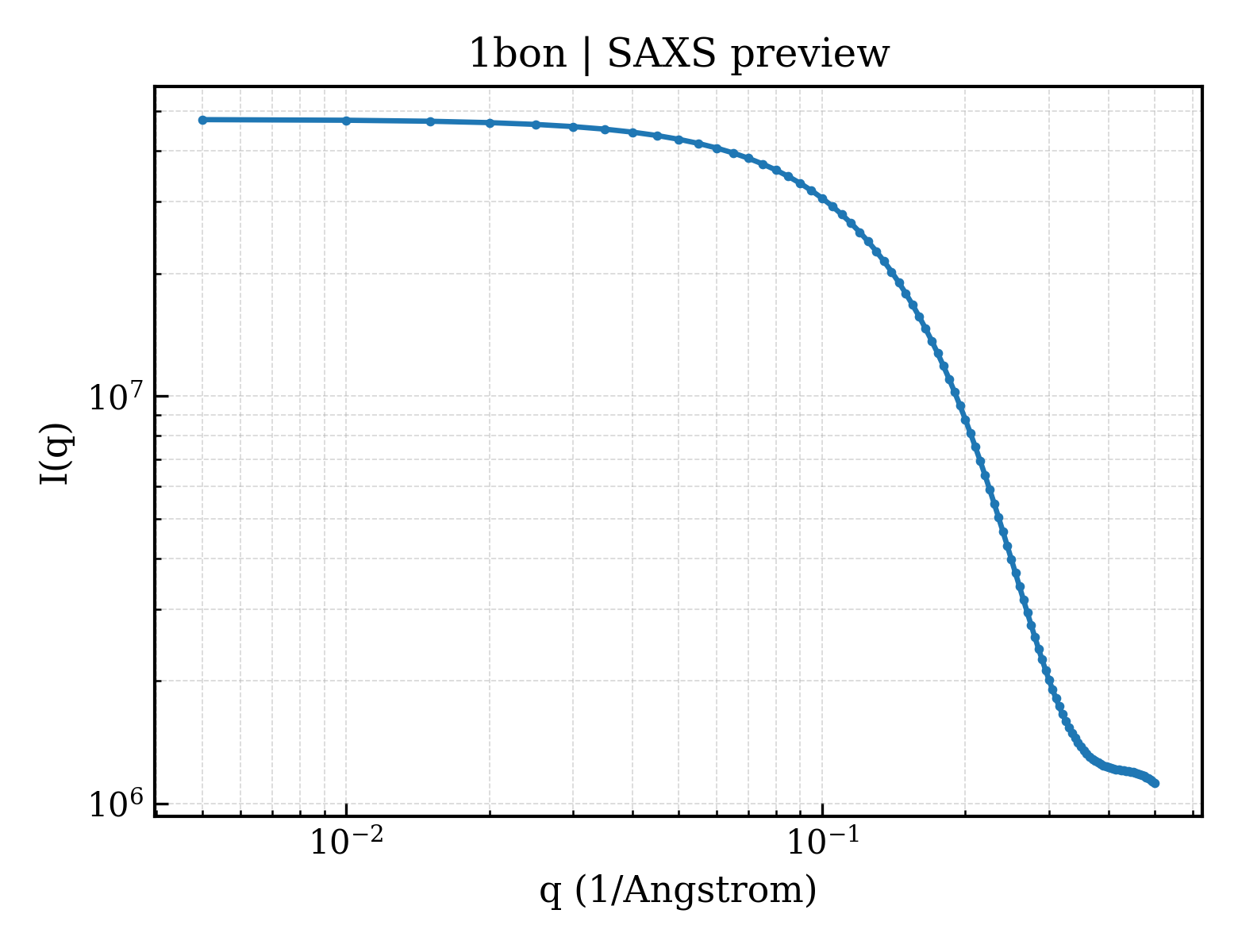

SAXS Profile

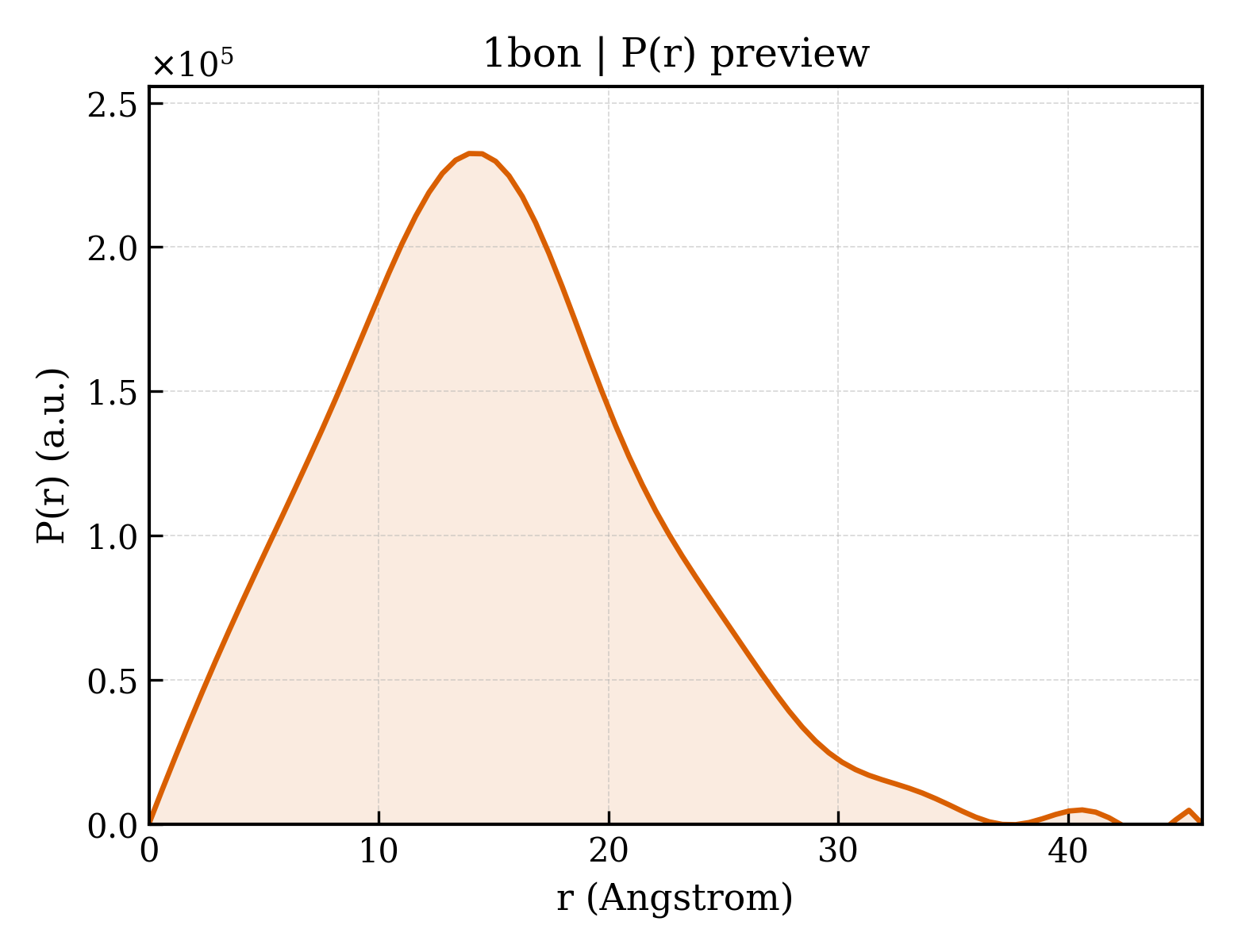

P(r) Distribution
1. Structure Basics
| entry_id | 1bon |
| deposition_date | 1994-07-21 |
| title | ;THREE-DIMENSIONAL STRUCTURE OF BOMBYXIN-II, AN INSULIN-RELATED BRAIN-SECRETORY PEPTIDE OF THE SILKMOTH BOMBYX MORI: COMPARISON WITH INSULIN AND RELAXIN ; |
| keywords | HORMONE, Structural Proteomics in Europe, SPINE, Structural Genomics; HORMONE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.57 Å |
| rg_electron | 11.15 Å |
| i0 | 47770100.00 |
| molecular_weight | 53071.0 kDa |
| excluded_volume | 64829 ų |
| envelope_volume | 15487 ų |
| shell_volume | 10130 ų |
| envelope_diameter | 51.7 Å |
| shell_rg | 18.65 Å |
| envelope_rg | 14.18 Å |
| shape_rg | 11.18 Å |
| total_rg | 11.47 Å |
| total_atoms | 7140 |
| n_residues | 470 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.8 Å |
| rg_real | 11.61 Å |
| rg_real_error | 0.56 Å |
| i0_real | 4.7770e+07 |
| i0_real_error | 5.4370e+05 |
| rg_reciprocal | 11.61 Å |
| i0_reciprocal | 47770000.0000 |
| total_estimate | 0.7004 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 13.9 Å |
| skewness | 0.433 |
| kurtosis | 0.154 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 45610.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.475; Stabil: 0.991; Sysdev: 1.000; Positv: 1.000; Valcen: 0.702; Smooth: 0.000 |
