THE XRAY STRUCTURE OF A GROWTH HORMONE-PROLACTIN RECEPTOR COMPLEX

entry_id	1bp3
deposition_date	1998-08-12
title	THE XRAY STRUCTURE OF A GROWTH HORMONE-PROLACTIN RECEPTOR COMPLEX
keywords	HORMONE, RECEPTOR, HORMONE/GROWTH FACTOR, HORMONE-GROWTH FACTOR complex; HORMONE/GROWTH FACTOR
method	X-RAY DIFFRACTION

rg_guinier	24.56 Å
rg_electron	23.80 Å
i0	32130900.00
molecular_weight	44283.0 kDa
excluded_volume	55627 ų
envelope_volume	69383 ų
shell_volume	24772 ų
envelope_diameter	83.6 Å
shell_rg	30.37 Å
envelope_rg	24.28 Å
shape_rg	23.82 Å
total_rg	24.55 Å
total_atoms	3123
n_residues	383
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	82.6 Å
rg_real	24.54 Å
rg_real_error	0.63 Å
i0_real	3.2130e+07
i0_real_error	4.4760e+05
rg_reciprocal	24.55 Å
i0_reciprocal	32130000.0000
total_estimate	0.8096
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	28.8 Å
skewness	0.323
kurtosis	-0.365
angular_range	— – 0.3250 Å−1
current_alpha	0.0000
highest_alpha	10320000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.000

Unit Cell

length_a	154.200 Å
length_b	69.800 Å
length_c	43.300 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

Refinement

resolution	2.900 Å
resolution_low	10.000 Å
r_factor	—
r_work	0.2200
r_free	—

Diffraction

temperature

300.0 K

Files (7)

• pr_distribution /app/data/pr_computation/bp/1bp3/pr_distribution.json
• pr_output /app/data/pr_computation/bp/1bp3/1bp3.pr.out

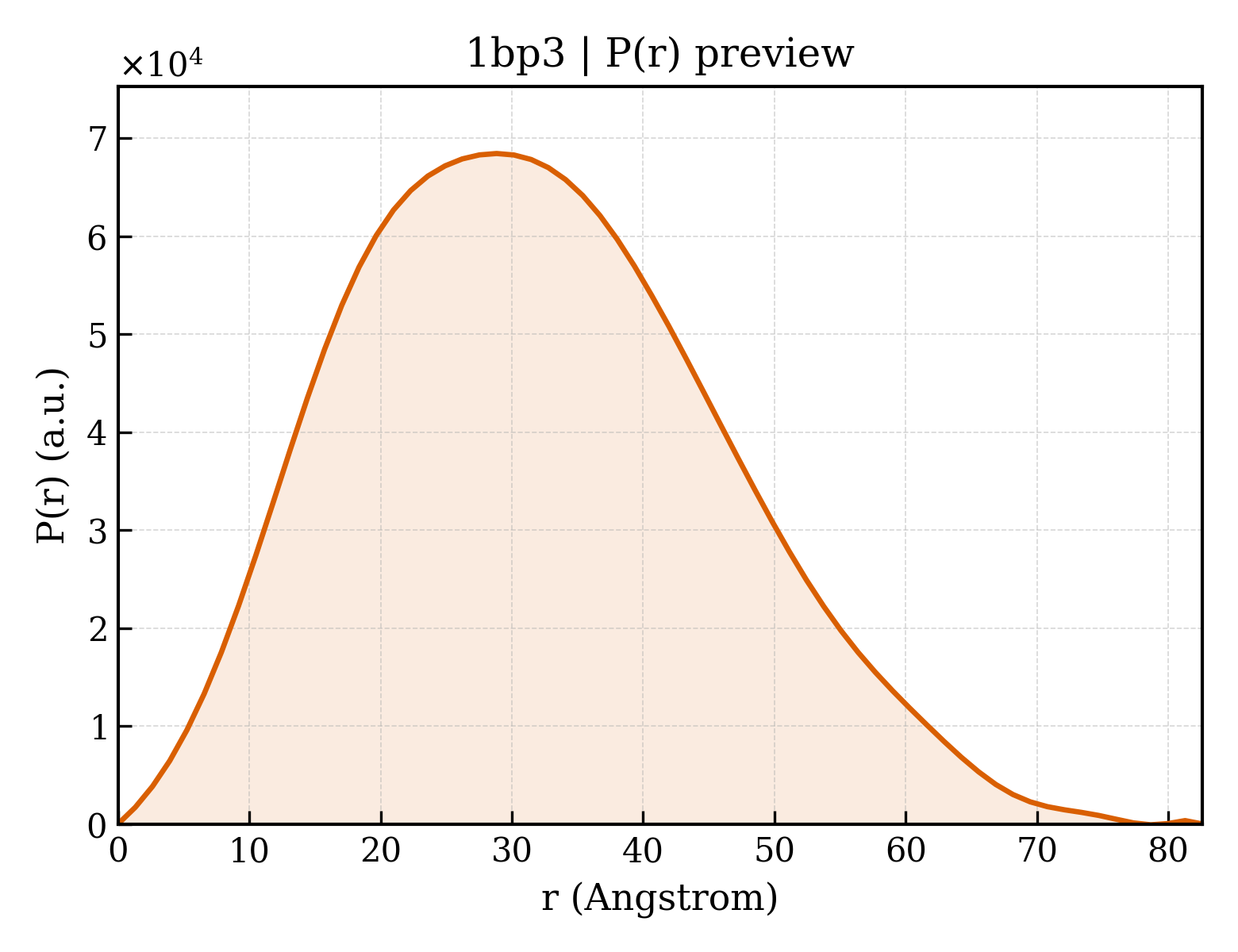

• pr_plot /app/data/visualization/pr_computation/bp/1bp3/1bp3_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/bp/1bp3/1bp3.dat
• saxs_fit /app/data/saxs_computation/bp/1bp3/1bp3.fit
• saxs_log /app/data/saxs_computation/bp/1bp3/1bp3.log
• saxs_plot /app/data/visualization/saxs_computation/bp/1bp3/1bp3_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/bp/1bp3/1bp3.fit
pddf	/app/data/pr_computation/bp/1bp3/1bp3.pr.out
profile	/app/data/saxs_computation/bp/1bp3/1bp3.dat
