1c7r

;THE CRYSTAL STRUCTURE OF PHOSPHOGLUCOSE ISOMERASE/AUTOCRINE MOTILITY FACTOR/NEUROLEUKIN COMPLEXED WITH ITS CARBOHYDRATE PHOSPHATE INHIBITORS AND ITS SUBSTRATE RECOGNITION MECHANISM ;

Method: X-RAY DIFFRACTION Dmax: 79.9 Å Quality: EXCELLENT

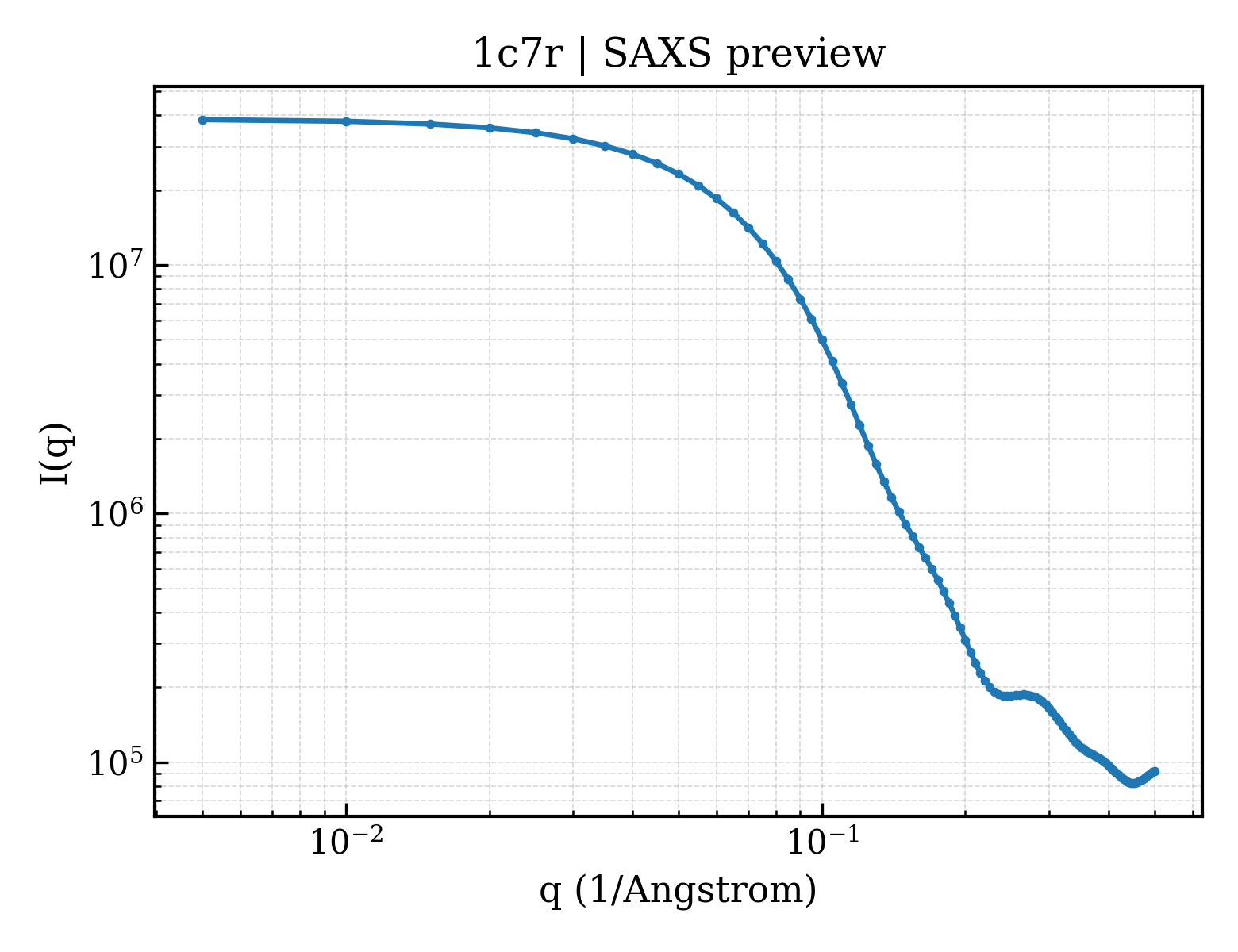

SAXS Profile

SAXS profile for 1c7r

P(r) Distribution

P(r) distribution for 1c7r
▼

1. Structure Basics

entry_id1c7r
deposition_date2000-03-02
title;THE CRYSTAL STRUCTURE OF PHOSPHOGLUCOSE ISOMERASE/AUTOCRINE MOTILITY FACTOR/NEUROLEUKIN COMPLEXED WITH ITS CARBOHYDRATE PHOSPHATE INHIBITORS AND ITS SUBSTRATE RECOGNITION MECHANISM ;
keywordsPHOSPHOGLUCOSE ISOMERASE/AUTOCRINE MOTILITY FACTOR/ NEUROLEUKIN, ISOMERASE; ISOMERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier24.66 Å
rg_electron23.47 Å
i038640700.00
molecular_weight48786.0 kDa
excluded_volume61304 ų
envelope_volume75005 ų
shell_volume26625 ų
envelope_diameter82.3 Å
shell_rg30.71 Å
envelope_rg23.89 Å
shape_rg23.44 Å
total_rg24.40 Å
total_atoms3443
n_residues432
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax79.9 Å
rg_real24.57 Å
rg_real_error0.44 Å
i0_real3.8640e+07
i0_real_error5.4790e+05
rg_reciprocal24.59 Å
i0_reciprocal38640000.0000
total_estimate0.9001
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary29.2 Å
skewness0.230
kurtosis-0.465
angular_range— – 0.3200 Å−1
current_alpha0.0000
highest_alpha5483000.0000
n_real_points64
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.993
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (2)

▶

7. Files & Curves (10)
