SAXSdb — 1c8o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ICE INHIBITOR

Cowpox virus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–300 Chain B； UniProt 301–341	Fragment：RESIDUES 1-300 Mutation：C93S,C102S,C124S,C223S,C269S,C298S Fragment：RESIDUES 301-341 Mutation：C304S,C313S,C336S	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.4；298 K；sodium/potassium phosphate 1.6M, pH 5.4, vapor diffusion/hanging drop, temperature 298K	Resolution 2.90 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C8O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F0C STRUCTURE OF THE VIRAL SERPIN CRMA Deposited 2000-05-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–305（305 aa） Fragment：RESIDUES 1-305 Chain B 306–341（36 aa） Fragment：RESIDUES 306-341	Not recorded	DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；296 K；0.1 M Na-Acetate, 15% PEG 4000, 0.1 M MgCl2, VAPOR DIFFUSION, temperature 296K	Resolution 2.26 Å R-free 0.272
1M93 1.65 A Structure of Cleaved Viral Serpin CRMA Deposited 2002-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–55（55 aa） Fragment：RESIDUES 1-55 Chain B 56–300（245 aa） Fragment：RESIDUES 56-300 Chain C 301–341（41 aa） Fragment：RESIDUES 301-341	Mutation：C93S, C102S, C124S, C223S, C269S, C298S Mutation：C304S, C313S, C336S	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；sodium/potassium phosphate 1.6M, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.65 Å R-free 0.245

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPI2_CWPXB
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–300； UniProt 1–300 Author chain B； PDBConstruct 1–41； UniProt 301–341

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c8o
Deposition date deposition_date	2000-06-01
Structure title title	2.9 A STRUCTURE OF CLEAVED VIRAL SERPIN CRMA
Keywords keywords	SERPIN FOLD, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.96 Å
Radius of gyration Rg (electron density) rg_electron	20.78 Å
Forward intensity I(0) i0	21623500.00
Molecular weight molecular_weight	36104.0 kDa
Excluded volume excluded_volume	45355 Å³
Envelope volume envelope_volume	51590 Å³
Hydration-shell volume shell_volume	21157 Å³
Envelope diameter envelope_diameter	70.5 Å
Shell Rg shell_rg	26.96 Å
Envelope Rg envelope_rg	20.99 Å
Shape Rg shape_rg	20.78 Å
Total Rg total_rg	21.60 Å
Total atoms total_atoms	2546
Residues n_residues	332
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

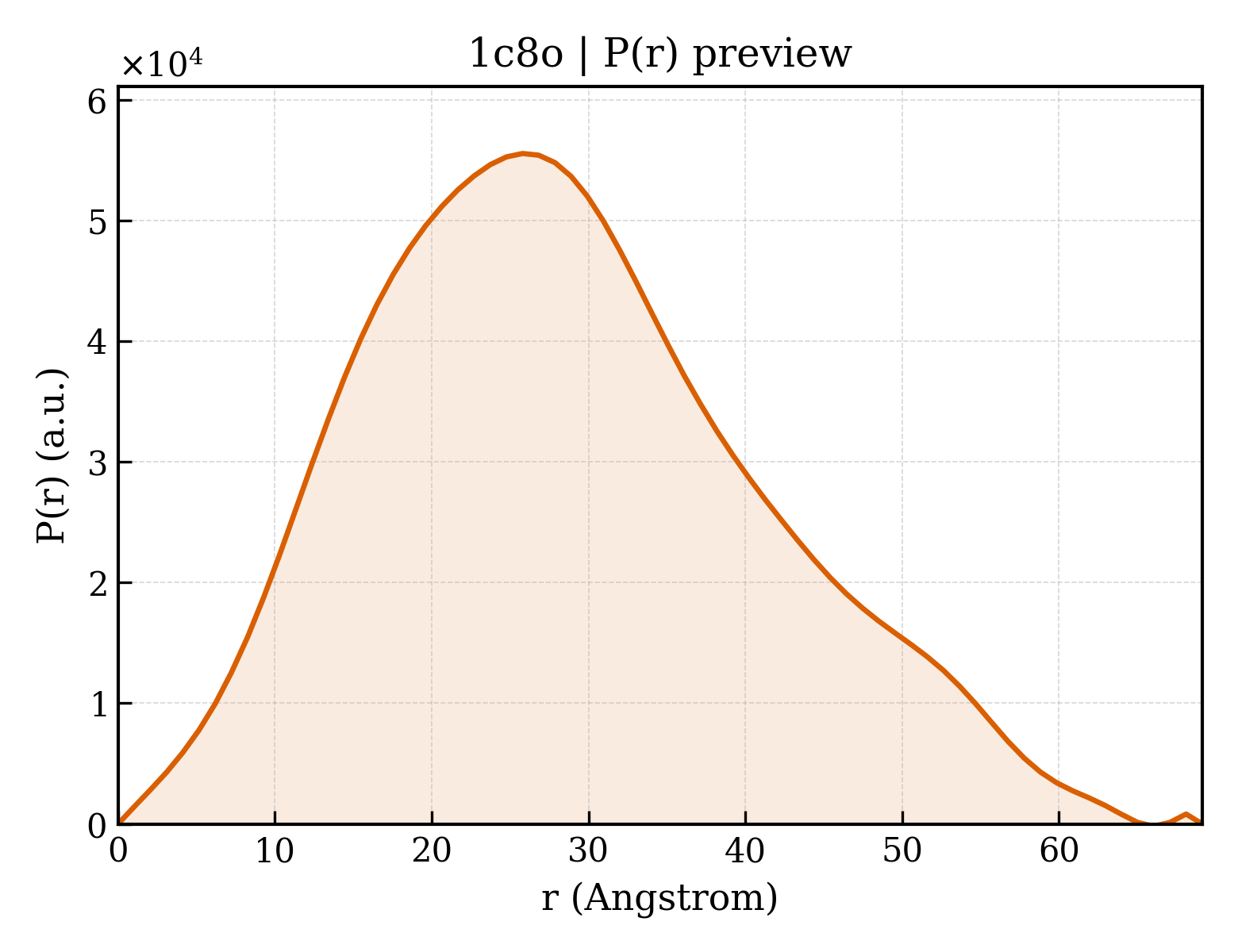

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.2 Å
Rg (real space) rg_real	21.96 Å
Rg uncertainty (real space) rg_real_error	0.49 Å
I(0) (real space) i0_real	2.1620e+07
I(0) uncertainty (real space) i0_real_error	2.8900e+05
Rg (reciprocal space) rg_reciprocal	21.96 Å
I(0) (reciprocal space) i0_reciprocal	21620000.0000
Solution quality estimate total_estimate	0.8182
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.8 Å
Skewness Skewness skewness	0.371
Kurtosis Kurtosis kurtosis	-0.354
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4884000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ICE INHIBITOR
Molecular weight formula_weight	33465.6 kDa
Mutation mutation	C93S,C102S,C124S,C223S,C269S,C298S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2564

MDIFREIASSMKGENVFISPPSISSVLTILYYGANGSTAEQLSKYVEKEADKNKDDISFKSMNKVYGRYSAVFKDSFLRKIGDNFQTVDFTDSRTVDAINKSVDIFTEGKINPLLDEPLSPDTSLLAISAVYFKAKWLMPFEKEFTSDYPFYVSPTEMVDVSMMSMYGEAFNHASVKESFGNFSIIELPYVGDTSMVVILPDNIDGLESIEQNLTDTNFKKWSDSMDAMFIDVHIPKFKVTGSYNLVDALVKLGLTEVFGSTGDYSNMSNSDVSVDAMIHKTYIDVNEEYTEAAAATSAL

来源 Source

来源生物 organism	Cowpox virus
NCBI Class编号 ncbi_taxonomy_id	10243
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ICE INHIBITOR
Molecular weight formula_weight	4518.0 kDa
Mutation mutation	C304S,C313S,C336S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VADSASTVTNEFSADHPFIYVIRHVDGKILFVGRYSSPTTN

来源 Source

来源生物 organism	Cowpox virus
NCBI Class编号 ncbi_taxonomy_id	10243
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	18

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1c8o.1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.1 — Serpins
Superfamily Superfamily superfamily	e.1.1 — Serpins
Family Family family	e.1.1.1 — Serpins

CATH v4.4 (2 domains)

Domain ID domain_id	1c8oA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	497 — Antithrombin; Chain I, domain 2
Homologous superfamily homologous superfamily	10 — Antithrombin, subunit I, domain 2

Domain ID domain_id	1c8oA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	39 — Alpha-1-antitrypsin; domain 1
Homologous superfamily homologous superfamily	10 — Alpha-1-antitrypsin, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.670 Å
Unit-cell length b length_b	93.150 Å
Unit-cell length c length_c	101.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	38.790 Å
R factor r_factor	—
R_work r_work	0.2230
R_free r_free	0.2870

fit	/app/data/saxs_computation/c8/1c8o/1c8o.fit
pddf	/app/data/pr_computation/c8/1c8o/1c8o.pr.out
profile	/app/data/saxs_computation/c8/1c8o/1c8o.dat
