1c90
Endo-Beta-N-Acetylglucosaminidase H, E132Q Mutant
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1c90 |
| deposition_date | 1999-07-30 |
| title | Endo-Beta-N-Acetylglucosaminidase H, E132Q Mutant |
| keywords | (BETA/ALPHA)8 BARREL, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.99 Å |
| rg_electron | 31.38 Å |
| i0 | 53522800.00 |
| molecular_weight | 56991.0 kDa |
| excluded_volume | 70764 ų |
| envelope_volume | 88768 ų |
| shell_volume | 24115 ų |
| envelope_diameter | 102.7 Å |
| shell_rg | 37.48 Å |
| envelope_rg | 30.79 Å |
| shape_rg | 31.33 Å |
| total_rg | 32.03 Å |
| total_atoms | 4032 |
| n_residues | 530 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

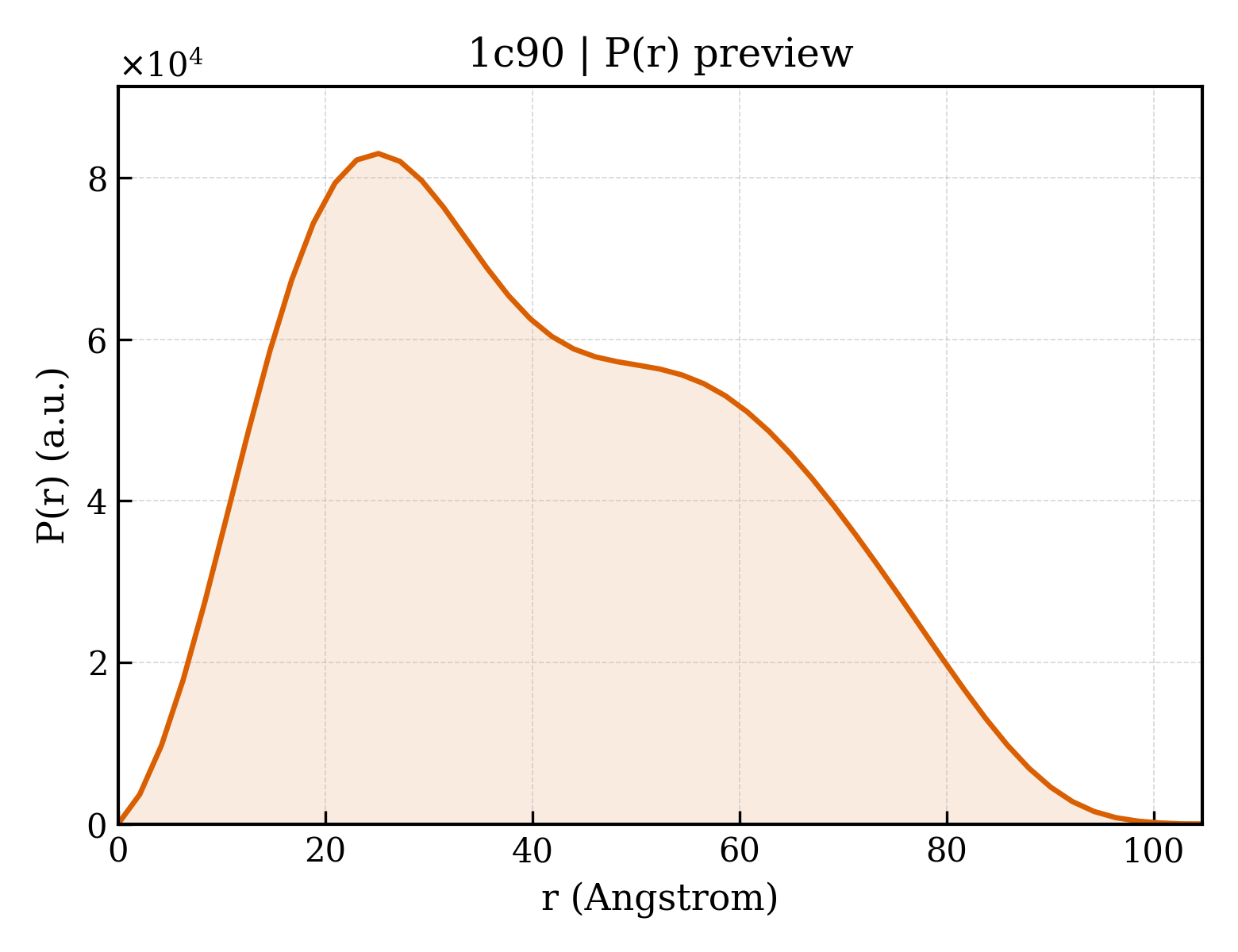

3. P(r) Analysis (GNOM)
| dmax | 104.7 Å |
| rg_real | 32.23 Å |
| rg_real_error | 0.81 Å |
| i0_real | 5.3520e+07 |
| i0_real_error | 9.2510e+05 |
| rg_reciprocal | 32.13 Å |
| i0_reciprocal | 53520000.0000 |
| total_estimate | 0.8373 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 25.1 Å |
| skewness | 0.342 |
| kurtosis | -0.792 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8192000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.768; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.705; Smooth: 0.871 |
