1cic

IDIOTOPE-ANTI-IDIOTOPE FAB-FAB COMPLEX; D1.3-E225

Method: X-RAY DIFFRACTION D_max: 139.0 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (IG HEAVY CHAIN V REGIONS)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–214 Chain C； UniProt 15–228	Fragment：FAB IMMUNOGLOBULIN FRAGMENT	PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （P01867） PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （P01869）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.9；12% PEG 800, 75 MILLIMOLAR SODIUM ACETATE PH 4.85 10MGM/ML PROTEIN CONCENTRATION , pH 4.9	Resolution 2.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CIC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K6Q Crystal structure of antibody Fab fragment D3 Deposited 2001-10-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 5–210（206 aa） Fragment：Fab fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.6；293 K；lithium sulphate, sodium acetate, pH 3.6, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.298

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9R1A5_MOUSE
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–214； UniProt 1–214 Author chain C； PDBConstruct 1–214； UniProt 15–228

PROTEIN (IG HEAVY CHAIN V REGIONS)

OrganismNot specified

UniProt P01867

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–217	Fragment：FAB IMMUNOGLOBULIN FRAGMENT	PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （Q9R1A5） PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （Q9R1A5） PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （P01869）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.9；12% PEG 800, 75 MILLIMOLAR SODIUM ACETATE PH 4.85 10MGM/ML PROTEIN CONCENTRATION , pH 4.9	Resolution 2.50 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1CIC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HQ4 STRUCTURE OF NATIVE CATALYTIC ANTIBODY HA5-19A4 Deposited 2000-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–99（99 aa） Fragment：VARIABLE REGIONS OF FAB LIGHT AND HEAVY CHAINS	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；PEG 6000, cadmium chloride, hepes, ph 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.265
1HQ4 STRUCTURE OF NATIVE CATALYTIC ANTIBODY HA5-19A4 Deposited 2000-12-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–99（99 aa） Fragment：VARIABLE REGIONS OF FAB LIGHT AND HEAVY CHAINS	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；PEG 6000, cadmium chloride, hepes, ph 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.265
1MAM CRYSTAL STRUCTURE TO 2.45 A RESOLUTION OF A MONOCLONAL FAB SPECIFIC FOR THE BRUCELLA A CELL WALL POLYSACCHARIDE ANTIGEN Deposited 1992-01-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–98（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.45 Å
1NBV AN AUTOANTIBODY TO SINGLE-STRANDED DNA: COMPARISON OF THE THREE-DIMENSIONAL STRUCTURES OF THE UNLIGANDED FAB AND A DEOXYNUCLEOTIDE-FAB COMPLEX Deposited 1993-03-16	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–98（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1OSP CRYSTAL STRUCTURE OF OUTER SURFACE PROTEIN A OF BORRELIA BURGDORFERI COMPLEXED WITH A MURINE MONOCLONAL ANTIBODY FAB Deposited 1996-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–98（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.95 Å R-free 0.295
2RGS FC-fragment of monoclonal antibody IGG2B from Mus musculus Deposited 2007-10-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 117–334（218 aa） Fragment：Fc-fragment Chain B 117–334（218 aa） Fragment：Fc-fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；301 K；20% PEG2000, 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.13 Å R-free 0.213
5UBX Crystal structure of a mutant mIgG2b Fc heterodimer in complex with Protein A peptide analog Z34C Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 108–335（228 aa） Fragment：UNP residues 108-335 Chain B 108–335（228 aa） Fragment：UNP residues 108-335	Mutation：P307T, Q309L, V370K, K409R Mutation：I253D, F405L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；17% PEG 3350, 0.2 M LiCl, 0.1 M Tris, pH 8.0	Resolution 2.70 Å R-free 0.257
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 117–334（218 aa） Chain B 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 117–334（218 aa） Chain D 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 117–334（218 aa） Chain F 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRV Crystal structure of mouse IgG2b Fc complexed with B domain of Protein A Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 117–334（218 aa） Chain B 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；60% (v/v) Tacsimate (pH 7.0)	Resolution 3.30 Å R-free 0.250
6KRV Crystal structure of mouse IgG2b Fc complexed with B domain of Protein A Deposited 2019-08-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；60% (v/v) Tacsimate (pH 7.0)	Resolution 3.30 Å R-free 0.250

8 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCBM_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–217； UniProt 1–217

PROTEIN (IG HEAVY CHAIN V REGIONS)

OrganismNot specified

UniProt P01869

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 1–218	Fragment：FAB IMMUNOGLOBULIN FRAGMENT	PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （Q9R1A5） PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （P01867） PROTEIN (IG HEAVY CHAIN V REGIONS) × 1 （Q9R1A5）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.9；12% PEG 800, 75 MILLIMOLAR SODIUM ACETATE PH 4.85 10MGM/ML PROTEIN CONCENTRATION , pH 4.9	Resolution 2.50 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1CIC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
15C8 CATALYTIC ANTIBODY 5C8, FREE FAB Deposited 1998-03-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 2–217（216 aa） Fragment：FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.5	Resolution 2.50 Å R-free 0.251
1ACY CRYSTAL STRUCTURE OF THE PRINCIPAL NEUTRALIZING SITE OF HIV-1 Deposited 1994-02-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–100（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1AE6 IGG-FAB FRAGMENT OF MOUSE MONOCLONAL ANTIBODY CTM01 Deposited 1997-03-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–98（98 aa） Fragment：FAB FRAGMENT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；20-25% PEG4000, BUFFERED AT PH 5.6 WITH 20MM BIS-TRIS.	Resolution 3.00 Å R-free 0.311
1CL7 ANTI HIV1 PROTEASE FAB Deposited 1999-05-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 133–214（82 aa） Fragment：FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 3.00 Å R-free 0.280
1F11 F124 FAB FRAGMENT FROM A MONOCLONAL ANTI-PRES2 ANTIBODY Deposited 2000-05-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–102（101 aa） Fragment：FAB FRAGMENT (UNP Q65ZR6 residues 18-134, P01869 residues 2-102)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；290 K；PEG 400, sodium acetate, ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 3.00 Å R-free 0.271
1F11 F124 FAB FRAGMENT FROM A MONOCLONAL ANTI-PRES2 ANTIBODY Deposited 2000-05-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–102（101 aa） Fragment：FAB FRAGMENT (UNP Q65ZR6 residues 18-134, P01869 residues 2-102)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；290 K；PEG 400, sodium acetate, ammonium sulfate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 3.00 Å R-free 0.271
1JHK Crystal structure of the anti-estradiol antibody 57-2 Deposited 2001-06-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 12–229（218 aa） Fragment：residues 1-215	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.1；277 K；PEG4000, PEG8000, Tris-HCl, pH 9.1, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.51 Å R-free 0.262
1KC5 CRYSTAL STRUCTURE OF ANTIBODY PC287 IN COMPLEX WITH PS1 PEPTIDE Deposited 2001-11-07	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–101（101 aa） Fragment：heavy chain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；20% PEG 8K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.50 Å R-free 0.270
1KCR CRYSTAL STRUCTURE OF ANTIBODY PC283 IN COMPLEX WITH PS1 PEPTIDE Deposited 2001-11-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–102（102 aa） Fragment：heavy chain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；18% PEG 3K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.90 Å R-free 0.277
1L7T Crystal Structure Analysis of the anti-testosterone Fab fragment Deposited 2002-03-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–103（103 aa） Fragment：fab77 fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；298 K；peg3350, MES, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.275
1ORS X-ray structure of the KvAP potassium channel voltage sensor in complex with an Fab Deposited 2003-03-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–103（103 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PEG4000, Hepes, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.251
1RUQ Crystal Structure (H) of u.v.-irradiated Diels-Alder antibody 13G5 Fab at pH 8.0 with a data set collected in house. Deposited 2003-12-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa） Fragment：fab	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M imidazole, pH 8.0, 0.2 M zinc acetate, 5-7% (v/v) isopropanol, 20% (w/v) PEG 3000, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.86 Å R-free 0.256
1RUR Crystal Structure (I) of native Diels-Alder antibody 13G5 Fab at pH 8.0 with a data set collected at SSRL beamline 9-1. Deposited 2003-12-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa） Fragment：fab	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295 K；0.1 M imidazole, pH 8.0, 0.2 M zinc acetate, 5-7% (v/v) isopropanol, 20% (w/v) PEG 3000, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.50 Å R-free 0.238
1S5I Fab (LNKB-2) of monoclonal antibody to Human Interleukin-2, crystal structure Deposited 2004-01-21	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–102（102 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；300 K；PEG-8000, ZnAc, NaN3, Na(CH3)2AsO4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.70 Å R-free 0.275
25C8 CATALYTIC ANTIBODY 5C8, FAB-HAPTEN COMPLEX Deposited 1998-03-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 2–217（216 aa） Fragment：FAB	Not recorded	GEP N-METHYL-N-(PARA-GLUTARAMIDOPHENYL-ETHYL)-PIPERIDINIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.5	Resolution 2.00 Å R-free 0.292

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IGH1M_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–218； UniProt 1–218

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

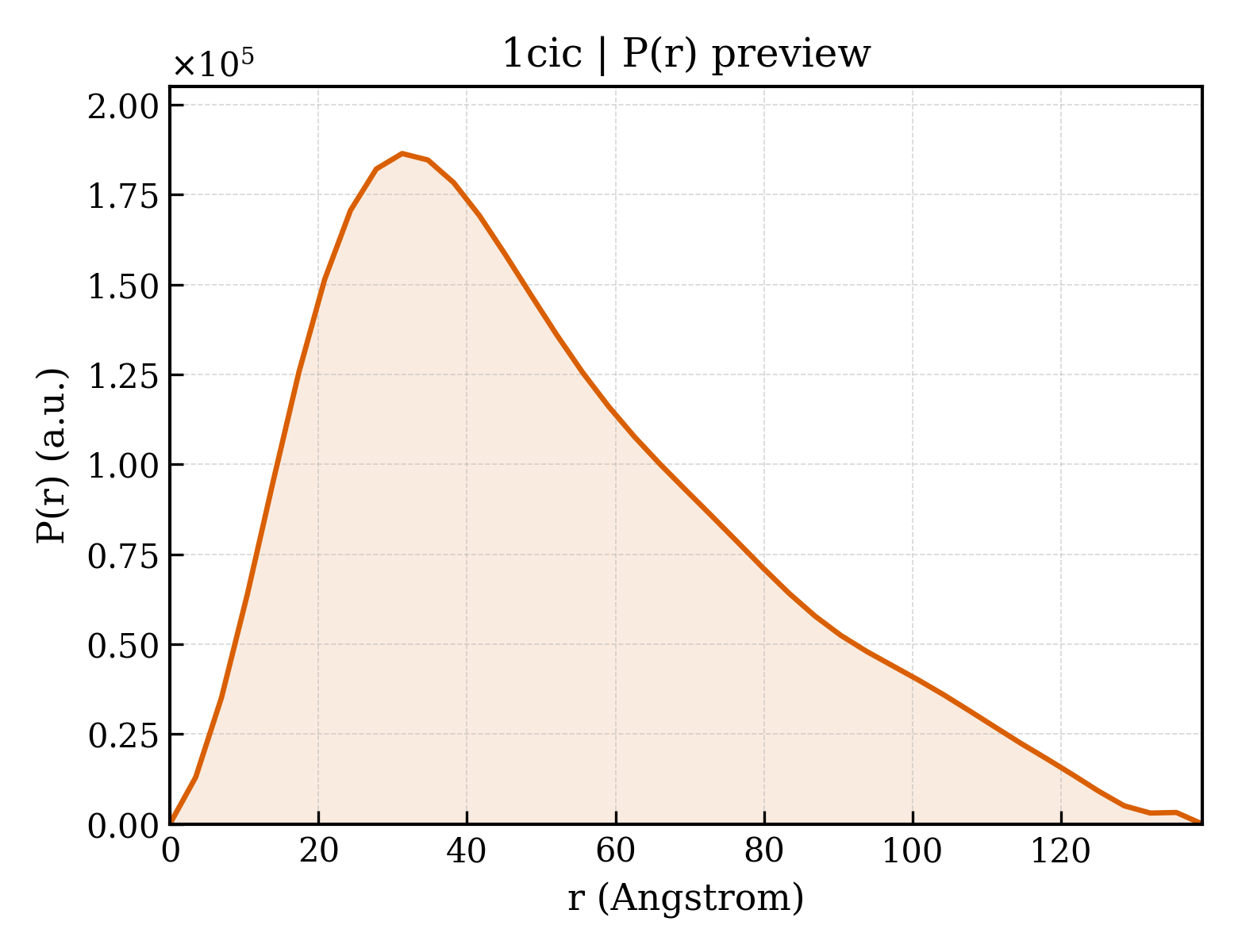

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cic
Deposition date deposition_date	1999-03-31
Structure title title	IDIOTOPE-ANTI-IDIOTOPE FAB-FAB COMPLEX; D1.3-E225
Keywords keywords	IMMUNOGLOBULIN, FAB COMPLEX, IDIOTOPE, ANTI-IDIOTOPE; IMMUNOGLOBULIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.45 Å
Radius of gyration Rg (electron density) rg_electron	40.03 Å
Forward intensity I(0) i0	141823000.00
Molecular weight molecular_weight	93908.0 kDa
Excluded volume excluded_volume	116370 Å³
Envelope volume envelope_volume	155140 Å³
Hydration-shell volume shell_volume	36460 Å³
Envelope diameter envelope_diameter	146.9 Å
Shell Rg shell_rg	39.60 Å
Envelope Rg envelope_rg	40.14 Å
Shape Rg shape_rg	39.96 Å
Total Rg total_rg	40.22 Å
Total atoms total_atoms	6605
Residues n_residues	863
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	139.0 Å
Rg (real space) rg_real	40.32 Å
Rg uncertainty (real space) rg_real_error	1.76 Å
I(0) (real space) i0_real	1.4180e+08
I(0) uncertainty (real space) i0_real_error	2.7530e+06
Rg (reciprocal space) rg_reciprocal	39.78 Å
I(0) (reciprocal space) i0_reciprocal	141700000.0000
Solution quality estimate total_estimate	0.7387
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.3 Å
Skewness Skewness skewness	0.680
Kurtosis Kurtosis kurtosis	-0.191
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13370000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.589; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.436; Smooth: 0.396

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEIN (IG HEAVY CHAIN V REGIONS)
Molecular weight formula_weight	23761.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6733

DIVMTQSHKFMSTSVGDRVSITCKASQDVRIAVAWYQQKPGQSPKLLIYWASTRHTGVPDRFTGSGSGTDFTLTISNVQSEDLADYFCQHCGSYPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLDSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 2 Entity 2 polymer

Description description	PROTEIN (IG HEAVY CHAIN V REGIONS)
Molecular weight formula_weight	23157.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQQPGSELVRPGASVKLSCKASGYTFTNYWMHWVKQRPGQGLEWIGNIYPGSGDSNYDEKFKSKATLTVDTSSSTAYMQLSGLTSEDSAVYYCARGLAFYFDHWGQGTTLTVSSALTTPPSVYPLAPGCGDTTGSSVTLGCLVKGYFPEPVTVTWNSGSLSSSVHTFPALLQSGLYTMSSSVTVPSSTWPSETVTCSVAHPASSTTVDKKLEPS

Entity 3 Entity 3 polymer

Description description	PROTEIN (IG HEAVY CHAIN V REGIONS)
Molecular weight formula_weight	23678.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DIQMTQSPASLSASVGETVTITCRASGNIHNYLAWYQQKQGKSPQLLVYYTTTLADGVPSRFSGSGSGTQYSLKINSLQPEDFGSYYCQHFWSTPRTFGGGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLDSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 4 Entity 4 polymer

Description description	PROTEIN (IG HEAVY CHAIN V REGIONS)
Molecular weight formula_weight	23398.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVQLKESGPGLVAPSQSLSITCTVSGFSLTGYGVNWVRQPPGKGLEWLGMIWGDGNTDYNSALKSRLSISKDNSKSQVFLKMNSLHTDDTARYYCARERDYRLDYWGQGTTLTVSSASTTPPSVFPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKIVPRDC

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1cica1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1cica2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1cicb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1cicb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1cicc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1cicc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1cicd1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1cicd2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

Domain ID domain_id	1cicA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cicD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.110 Å
Unit-cell length b length_b	77.650 Å
Unit-cell length c length_c	96.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	—
R_work r_work	0.1790
R_free r_free	—

fit	/app/data/saxs_computation/ci/1cic/1cic.fit
pddf	/app/data/pr_computation/ci/1cic/1cic.pr.out
profile	/app/data/saxs_computation/ci/1cic/1cic.dat

IDIOTOPE-ANTI-IDIOTOPE FAB-FAB COMPLEX; D1.3-E225

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (IG HEAVY CHAIN V REGIONS)

State in the Current Structure

Other States of the Same Protein in the Database

PROTEIN (IG HEAVY CHAIN V REGIONS)

State in the Current Structure

Other States of the Same Protein in the Database

PROTEIN (IG HEAVY CHAIN V REGIONS)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
