SAXSdb — 1mam

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

IGG2B-KAPPA YST9.1 FAB (HEAVY CHAIN)

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 1–98	Not recorded	IGG2B-KAPPA YST9.1 FAB (LIGHT CHAIN) × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.45 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MAM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CIC IDIOTOPE-ANTI-IDIOTOPE FAB-FAB COMPLEX; D1.3-E225 Deposited 1999-03-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–217（217 aa） Fragment：FAB IMMUNOGLOBULIN FRAGMENT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.9；12% PEG 800, 75 MILLIMOLAR SODIUM ACETATE PH 4.85 10MGM/ML PROTEIN CONCENTRATION , pH 4.9	Resolution 2.50 Å
1HQ4 STRUCTURE OF NATIVE CATALYTIC ANTIBODY HA5-19A4 Deposited 2000-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–99（99 aa） Fragment：VARIABLE REGIONS OF FAB LIGHT AND HEAVY CHAINS	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；PEG 6000, cadmium chloride, hepes, ph 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.265
1HQ4 STRUCTURE OF NATIVE CATALYTIC ANTIBODY HA5-19A4 Deposited 2000-12-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–99（99 aa） Fragment：VARIABLE REGIONS OF FAB LIGHT AND HEAVY CHAINS	Not recorded	CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；PEG 6000, cadmium chloride, hepes, ph 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.265
1NBV AN AUTOANTIBODY TO SINGLE-STRANDED DNA: COMPARISON OF THE THREE-DIMENSIONAL STRUCTURES OF THE UNLIGANDED FAB AND A DEOXYNUCLEOTIDE-FAB COMPLEX Deposited 1993-03-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–98（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1OSP CRYSTAL STRUCTURE OF OUTER SURFACE PROTEIN A OF BORRELIA BURGDORFERI COMPLEXED WITH A MURINE MONOCLONAL ANTIBODY FAB Deposited 1996-11-23	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–98（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.95 Å R-free 0.295
2RGS FC-fragment of monoclonal antibody IGG2B from Mus musculus Deposited 2007-10-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 117–334（218 aa） Fragment：Fc-fragment Chain B 117–334（218 aa） Fragment：Fc-fragment	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；301 K；20% PEG2000, 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 301K	Resolution 2.13 Å R-free 0.213
5UBX Crystal structure of a mutant mIgG2b Fc heterodimer in complex with Protein A peptide analog Z34C Deposited 2016-12-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 108–335（228 aa） Fragment：UNP residues 108-335 Chain B 108–335（228 aa） Fragment：UNP residues 108-335	Mutation：P307T, Q309L, V370K, K409R Mutation：I253D, F405L	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；17% PEG 3350, 0.2 M LiCl, 0.1 M Tris, pH 8.0	Resolution 2.70 Å R-free 0.257
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 117–334（218 aa） Chain B 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 117–334（218 aa） Chain D 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRU Crystal structure of mouse IgG2b Fc Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 117–334（218 aa） Chain F 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；16% PEG3350, 0.2 M lithium chloride, and 0.1 M Bis-Tris (pH 6.5)	Resolution 2.30 Å R-free 0.237
6KRV Crystal structure of mouse IgG2b Fc complexed with B domain of Protein A Deposited 2019-08-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 117–334（218 aa） Chain B 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；60% (v/v) Tacsimate (pH 7.0)	Resolution 3.30 Å R-free 0.250
6KRV Crystal structure of mouse IgG2b Fc complexed with B domain of Protein A Deposited 2019-08-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 117–334（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；60% (v/v) Tacsimate (pH 7.0)	Resolution 3.30 Å R-free 0.250

8 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GCBM_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 120–217； UniProt 1–98

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mam
Deposition date deposition_date	1992-01-14
Structure title title	CRYSTAL STRUCTURE TO 2.45 A RESOLUTION OF A MONOCLONAL FAB SPECIFIC FOR THE BRUCELLA A CELL WALL POLYSACCHARIDE ANTIGEN
Keywords keywords	IMMUNOGLOBULIN; IMMUNOGLOBULIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.50 Å
Radius of gyration Rg (electron density) rg_electron	24.46 Å
Forward intensity I(0) i0	38534500.00
Molecular weight molecular_weight	46889.0 kDa
Excluded volume excluded_volume	58107 Å³
Envelope volume envelope_volume	71463 Å³
Hydration-shell volume shell_volume	24526 Å³
Envelope diameter envelope_diameter	82.8 Å
Shell Rg shell_rg	31.38 Å
Envelope Rg envelope_rg	24.09 Å
Shape Rg shape_rg	24.45 Å
Total Rg total_rg	25.25 Å
Total atoms total_atoms	3296
Residues n_residues	431
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

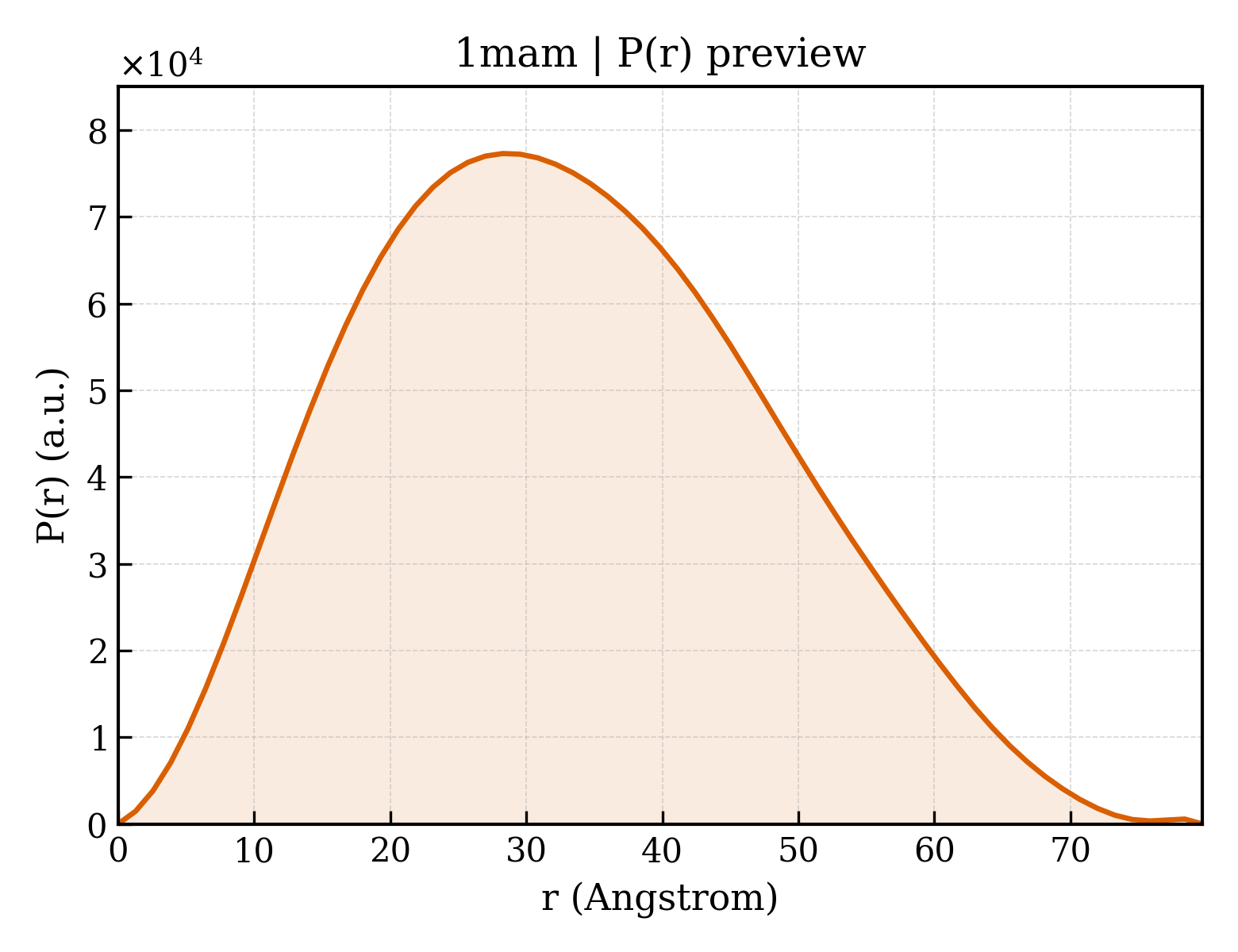

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.7 Å
Rg (real space) rg_real	25.47 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	3.8530e+07
I(0) uncertainty (real space) i0_real_error	4.9470e+05
Rg (reciprocal space) rg_reciprocal	25.48 Å
I(0) (reciprocal space) i0_reciprocal	38530000.0000
Solution quality estimate total_estimate	0.9128
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.3 Å
Skewness Skewness skewness	0.258
Kurtosis Kurtosis kurtosis	-0.546
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6017000.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.978

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	IGG2B-KAPPA YST9.1 FAB (LIGHT CHAIN)
Molecular weight formula_weight	23772.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3296

DIQMTQTTSSLSASLGDRVTISCRASQDIYNYLNWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTISNLNQEDMATYICQQGNTLPFTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 2 Entity 2 polymer

Description description	IGG2B-KAPPA YST9.1 FAB (HEAVY CHAIN)
Molecular weight formula_weight	23156.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVKLVESGGGLVQPGGSLRLSCATSGFTFTDYYMSWVRQPPGKALEWLGFIRNKADGYTTEYSASVKGRFTISRDNSQSILYLQMNTLRAEDSATYYCTRDPYGPAAYWGQGTLVTVSAAKTTPPSVYPLAPGCGDTTGSSVTLGCLVKGYFPESVTVTWNSGSLSSSVHTFPALLQSGLYTMSSSVTVPSSTWPSQTVTCSVAHPASSTTVDKKLE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1mamh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1mamh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1maml1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1maml2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	1mamH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mamH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mamL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1mamL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.730 Å
Unit-cell length b length_b	126.820 Å
Unit-cell length c length_c	46.820 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2150
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/ma/1mam/1mam.fit
pddf	/app/data/pr_computation/ma/1mam/1mam.pr.out
profile	/app/data/saxs_computation/ma/1mam/1mam.dat

CRYSTAL STRUCTURE TO 2.45 A RESOLUTION OF A MONOCLONAL FAB SPECIFIC FOR THE BRUCELLA A CELL WALL POLYSACCHARIDE ANTIGEN
