1cje
ADRENODOXIN FROM BOVINE
SAXS Profile

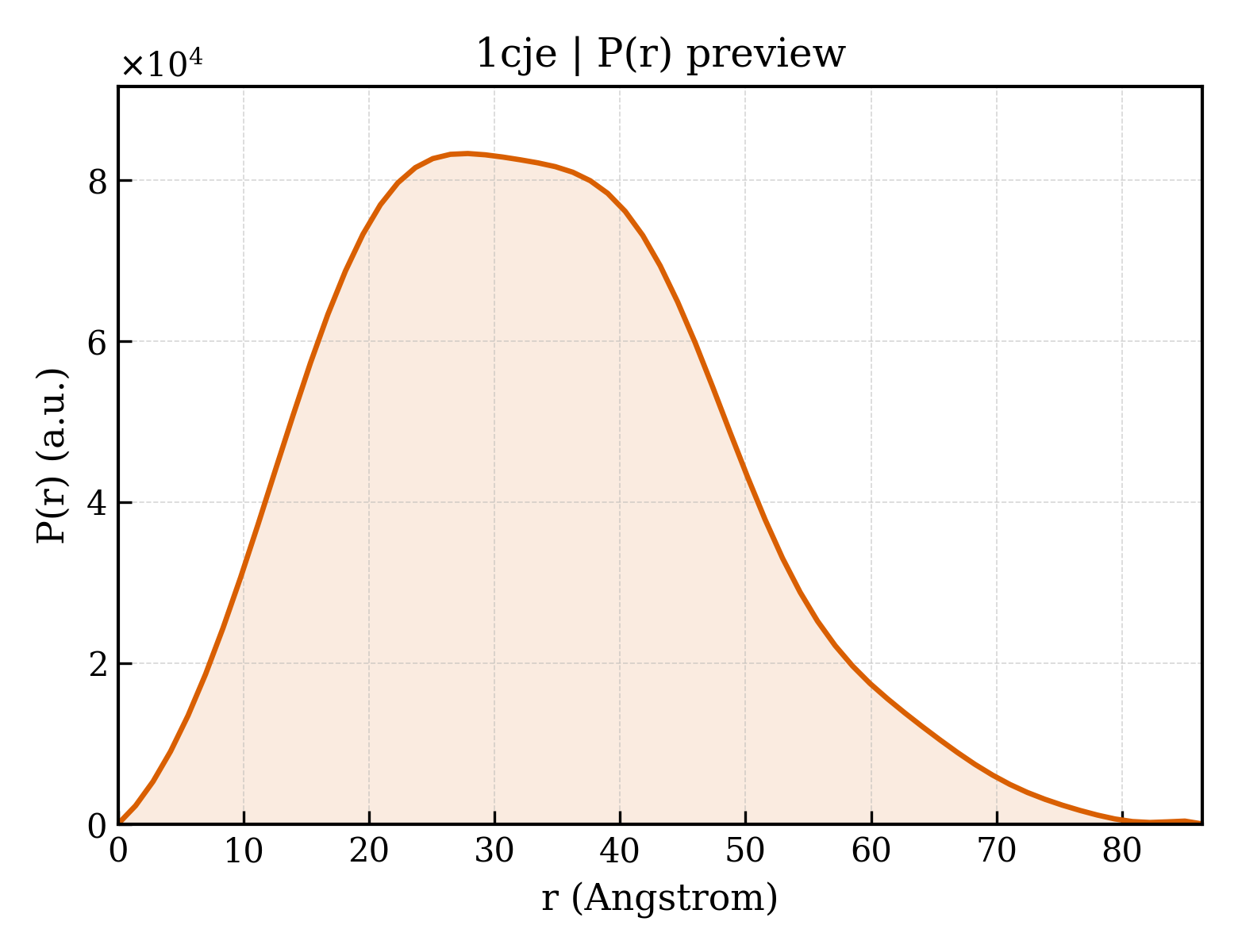

P(r) Distribution
1. Structure Basics
| entry_id | 1cje |
| deposition_date | 1999-04-12 |
| title | ADRENODOXIN FROM BOVINE |
| keywords | ELECTRON TRANSPORT PROTEIN, IRON SULFUR PROTEIN, 2FE-2S FERREDOXIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.49 Å |
| rg_electron | 24.57 Å |
| i0 | 42075800.00 |
| molecular_weight | 47561.0 kDa |
| excluded_volume | 58430 ų |
| envelope_volume | 72351 ų |
| shell_volume | 25515 ų |
| envelope_diameter | 89.8 Å |
| shell_rg | 30.66 Å |
| envelope_rg | 24.27 Å |
| shape_rg | 24.47 Å |
| total_rg | 25.53 Å |
| total_atoms | 3282 |
| n_residues | 426 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 86.4 Å |
| rg_real | 25.49 Å |
| rg_real_error | 0.62 Å |
| i0_real | 4.2080e+07 |
| i0_real_error | 5.9050e+05 |
| rg_reciprocal | 25.49 Å |
| i0_reciprocal | 42080000.0000 |
| total_estimate | 0.8816 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.9 Å |
| skewness | 0.341 |
| kurtosis | -0.285 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11190000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.986 |
