SAXSdb — 2bt6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADRENODOXIN 1

BOS TAURUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 63–166	Fragment：RESIDUES 63-166	FES FE2/S2 (INORGANIC) CLUSTER × 1 RUA (4'-METHYL-2,2'BIPYRIDINE)BIS(2,2'-BIPYRIDINE) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.4；30% PEG 4000, 10% GLYCEROL, 10MM TRIS, PH 7.4, 10MM MGCL2, 20 MG/ML PROTEIN	Resolution 1.50 Å R-free 0.186
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 63–166	Fragment：RESIDUES 63-166	FES FE2/S2 (INORGANIC) CLUSTER × 1 RUA (4'-METHYL-2,2'BIPYRIDINE)BIS(2,2'-BIPYRIDINE) × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.4；30% PEG 4000, 10% GLYCEROL, 10MM TRIS, PH 7.4, 10MM MGCL2, 20 MG/ML PROTEIN	Resolution 1.50 Å R-free 0.186

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2BT6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AYF BOVINE ADRENODOXIN (OXIDIZED) Deposited 1997-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 62–166（105 aa） Chain B 62–166（105 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；PROTEIN WAS CRYSTALLIZED FROM 30% PEG 4000, 10% GLYCEROL, 100 MM TRIS, PH 7.4, 100MM MGCL2, 20 MG/ML PROTEIN	Resolution 1.85 Å R-free 0.253
1CJE ADRENODOXIN FROM BOVINE Deposited 1999-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 60–186（127 aa） Chain B 60–186（127 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.298
1CJE ADRENODOXIN FROM BOVINE Deposited 1999-04-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 60–186（127 aa） Chain D 60–186（127 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.50 Å R-free 0.298
1E6E ADRENODOXIN REDUCTASE/ADRENODOXIN COMPLEX OF MITOCHONDRIAL P450 SYSTEMS Deposited 2000-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 59–186（128 aa）	Mutation：YES	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 SO4 SULFATE ION × 3 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；HANGING DROP VAPOR-DIFFUSION AT 4 DEGR. 0.5MM COMPLEX IN 100MMTRIS-HCL, PH 7.4, 0.9M AMMONIUMSULFATE.	Resolution 2.30 Å R-free 0.268
1E6E ADRENODOXIN REDUCTASE/ADRENODOXIN COMPLEX OF MITOCHONDRIAL P450 SYSTEMS Deposited 2000-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 59–186（128 aa）	Mutation：YES	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 SO4 SULFATE ION × 2 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；277 K；HANGING DROP VAPOR-DIFFUSION AT 4 DEGR. 0.5MM COMPLEX IN 100MMTRIS-HCL, PH 7.4, 0.9M AMMONIUMSULFATE.	Resolution 2.30 Å R-free 0.268
1L6U NMR STRUCTURE OF OXIDIZED ADRENODOXIN Deposited 2002-03-14	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–186（128 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；300 K；Ionic strength (raw mmCIF value) 100 mM salt；Pressure 1 NMR sample composition 2-3mM Adrenodoxin 15N,13C, 50 mM phosphate buffer, 50mM NaCl, 10% D2O, 0.04% NaN3 \| 90% H2O/10% D2O	Resolution not provided
1L6V STRUCTURE OF REDUCED BOVINE ADRENODOXIN Deposited 2002-03-14	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 59–186（128 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；300 K；Ionic strength (raw mmCIF value) 100mM salt；Pressure 1 NMR sample composition 2-3mM Adrenodoxin, 0mM Phosphate, 50mM NaCl, Dithionite, 10% D2O, 90% H2O, 0.04% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2JQR Solution model of crosslinked complex of cytochrome c and adrenodoxin Deposited 2007-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 62–166（105 aa） Fragment：2Fe-2S ferredoxin-type domain, residues 62-166	Mutation：L80C, C95S	HEC HEME C × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；285 K；Pressure ambient NMR measurement conditions pH 7.4；301 K；Ionic strength (raw mmCIF value) 0.4；Pressure ambient NMR sample composition 0.4 mM [U-98% 15N] CcV28C, 0.2-0.6 mM AdxL80C, 20 mM potassium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-98% 15N] AdxL80C, 0.2-0.6 mM CcV28C, 20 mM potassium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1.0 mM [U-98% 15N] CcV28C, 5 mM DTT, 20 mM potassium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [U-98% 15N] AdxL80C, 5 mM DTT, 20 mM potassium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ADX_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–108； UniProt 63–166 Author chain B； PDBConstruct 5–108； UniProt 63–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2bt6
Deposition date deposition_date	2005-05-26
Structure title title	Ru(bpy)2(mbpy)-Modified Bovine Adrenodoxin
Keywords keywords	RUTHENIUM(II) BIPYRIDYL COMPLEX, INTRAMOLECULAR ELECTRON TRANSFER, ELECTRON TRANSPORT, METAL-BINDING; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

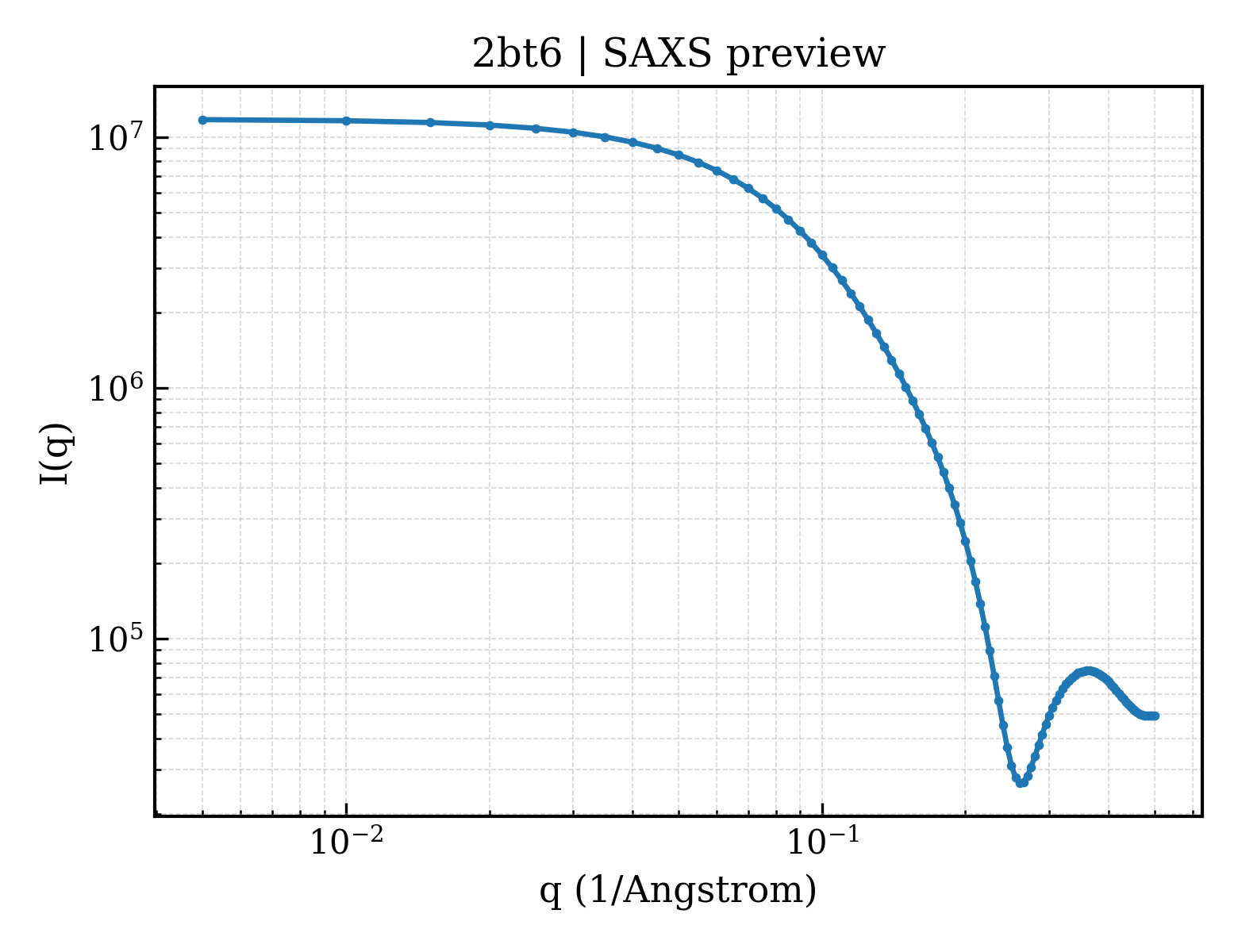

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.83 Å
Radius of gyration Rg (electron density) rg_electron	19.45 Å
Forward intensity I(0) i0	11782700.00
Molecular weight molecular_weight	24665.0 kDa
Excluded volume excluded_volume	30440 Å³
Envelope volume envelope_volume	36336 Å³
Hydration-shell volume shell_volume	16366 Å³
Envelope diameter envelope_diameter	70.7 Å
Shell Rg shell_rg	24.73 Å
Envelope Rg envelope_rg	19.68 Å
Shape Rg shape_rg	19.56 Å
Total Rg total_rg	19.93 Å
Total atoms total_atoms	1692
Residues n_residues	209
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	68.0 Å
Rg (real space) rg_real	19.93 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	1.1780e+07
I(0) uncertainty (real space) i0_real_error	1.5860e+05
Rg (reciprocal space) rg_reciprocal	19.92 Å
I(0) (reciprocal space) i0_reciprocal	11780000.0000
Solution quality estimate total_estimate	0.7636
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	20.1 Å
Skewness Skewness skewness	0.486
Kurtosis Kurtosis kurtosis	-0.258
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5613000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.686; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.867; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ADRENODOXIN 1
Molecular weight formula_weight	11820.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2021

GSSGDKITVHFINRDGETLTTKGKIGDSLLDVVVQNNLDIDGFGACEGTLACSTCHLIFEQHIFEKLEAITDEENDMLDLAYGLTDRSRLGCQICLTKAMDNMTVRVP

来源 Source

来源生物 organism	BOS TAURUS
通用名 common_name	BOVINE
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	(4'-METHYL-2,2'BIPYRIDINE)BIS(2,2'-BIPYRIDINE)
Molecular weight formula_weight	625.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	211

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2bt6a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

Domain ID domain_id	d2bt6a3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2bt6b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (2 domains)

Domain ID domain_id	2bt6A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	2bt6B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	50.510 Å
Unit-cell length b length_b	56.970 Å
Unit-cell length c length_c	79.080 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1630
R_work r_work	0.1610
R_free r_free	0.1860

fit	/app/data/saxs_computation/bt/2bt6/2bt6.fit
pddf	/app/data/pr_computation/bt/2bt6/2bt6.pr.out
profile	/app/data/saxs_computation/bt/2bt6/2bt6.dat
