1e6e

ADRENODOXIN REDUCTASE/ADRENODOXIN COMPLEX OF MITOCHONDRIAL P450 SYSTEMS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NADPH\:ADRENODOXIN OXIDOREDUCTASE

BOS TAURUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ADRENODOXIN × 1 （P00257） FLAVIN-ADENINE DINUCLEOTIDE × 1 SULFATE ION × 3 FE2/S2 (INORGANIC) CLUSTER × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ADRENODOXIN × 1 （P00257） FLAVIN-ADENINE DINUCLEOTIDE × 1 SULFATE ION × 2 FE2/S2 (INORGANIC) CLUSTER × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADRO_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–460； UniProt 33–492 Author chain C； PDBConstruct 1–460； UniProt 33–492

ADRENODOXIN

BOS TAURUS

UniProt P00257

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	NADPH\:ADRENODOXIN OXIDOREDUCTASE × 1 （P08165） FLAVIN-ADENINE DINUCLEOTIDE × 1 SULFATE ION × 3 FE2/S2 (INORGANIC) CLUSTER × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	NADPH\:ADRENODOXIN OXIDOREDUCTASE × 1 （P08165） FLAVIN-ADENINE DINUCLEOTIDE × 1 SULFATE ION × 2 FE2/S2 (INORGANIC) CLUSTER × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ADX1_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–128； UniProt 59–186 Author chain D； PDBConstruct 1–128； UniProt 59–186

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1e6e
Deposition date deposition_date	2000-08-15
Structure title title	ADRENODOXIN REDUCTASE/ADRENODOXIN COMPLEX OF MITOCHONDRIAL P450 SYSTEMS
Keywords keywords	FLAVOENZYME, ELECTRON TRANSFERASE, OXIDOREDUCTASE, [2FE-2S]FERREDOXIN, ADRENODOXIN, ELECTRON TRANSPORT, COMPLEX; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1e6e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1e6e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

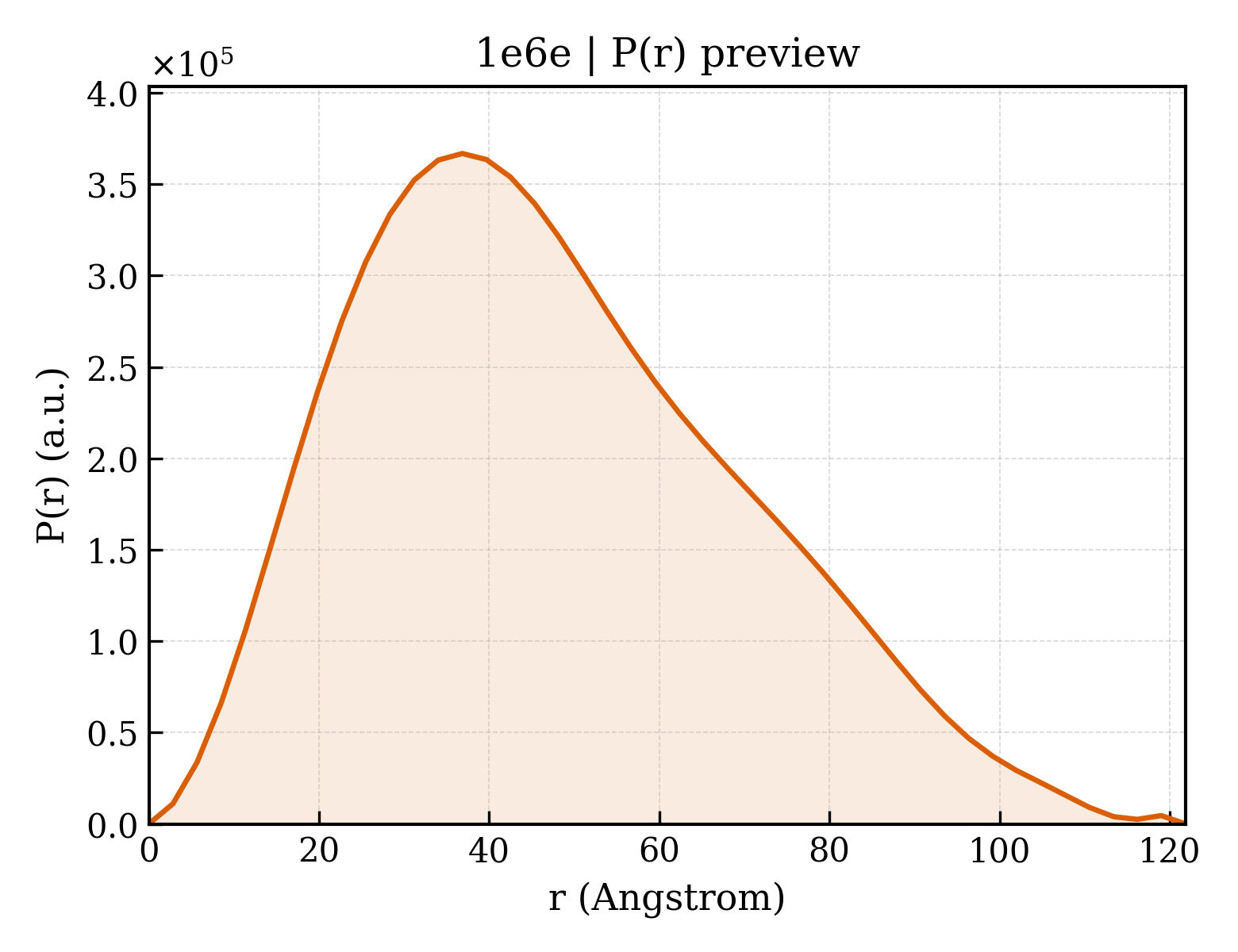

1e6e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.59 Å
Rg (electron density)	24.56 Å
Total Rg	25.42 Å
Atom count	4448
Residues	570
Excluded volume	78808 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1e6e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1e6e__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	NADPH\:ADRENODOXIN OXIDOREDUCTASE
Molecular weight formula_weight	50360.4 kDa
EC 编号 ec_number	1.18.1.2, 1.18.1.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	9112

STQEQTPQICVVGSGPAGFYTAQHLLKHHSRAHVDIYEKQLVPFGLVRFGVAPDHPEVKNVINTFTQTARSDRCAFYGNVEVGRDVTVQELQDAYHAVVLSYGAEDHQALDIPGEELPGVFSARAFVGWYNGLPENRELAPDLSCDTAVILGQGNVALDVARILLTPPDHLEKTDITEAALGALRQSRVKTVWIVGRRGPLQVAFTIKELREMIQLPGTRPMLDPADFLGLQDRIKEAARPRKRLMELLLRTATEKPGVEEAARRASASRAWGLRFFRSPQQVLPSPDGRRAAGIRLAVTRLEGIGEATRAVPTGDVEDLPCGLVLSSIGYKSRPIDPSVPFDPKLGVVPNMEGRVVDVPGLYCSGWVKRGPTGVITTTMTDSFLTGQILLQDLKAGHLPSGPRPGSAFIKALLDSRGVWPVSFSDWEKLDAEEVSRGQASGKPREKLLDPQEMLRLLGH

Source Source

Source organism organism	BOS TAURUS
Common name common_name	BOVINE
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	ADRENODOXIN
Molecular weight formula_weight	14031.7 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSSEDKITVHFINRDGETLTTKGKIGDSLLDVVVQNNLDIDGFGACEGTLACSTCHLIFEQHIFEKLEAITDEENDMLDLAYGLTDRSRLGCQICLTKAMDNMTVRVPDAVSDARESIDMGMNSSKIE

Source Source

Source organism organism	BOS TAURUS
Common name common_name	BOVINE
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	274

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1e6ea1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.1 — C-terminal domain of adrenodoxin reductase-like

Domain ID domain_id	d1e6ea2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.4 — Nucleotide-binding domain
Superfamily Superfamily superfamily	c.4.1 — Nucleotide-binding domain
Family Family family	c.4.1.1 — N-terminal domain of adrenodoxin reductase-like

Domain ID domain_id	d1e6eb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

Domain ID domain_id	d1e6ec1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.1 — C-terminal domain of adrenodoxin reductase-like

Domain ID domain_id	d1e6ec2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.4 — Nucleotide-binding domain
Superfamily Superfamily superfamily	c.4.1 — Nucleotide-binding domain
Family Family family	c.4.1.1 — N-terminal domain of adrenodoxin reductase-like

Domain ID domain_id	d1e6ed_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (6 domains)

Domain ID domain_id	1e6eA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1e6eA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1e6eB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1e6eC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1e6eC02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1e6eD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

Unit-cell length a length_a	92.210 Å
Unit-cell length b length_b	92.210 Å
Unit-cell length c length_c	607.850 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2680
