1ckx
;Cystic fibrosis transmembrane conductance regulator: Solution structures of peptides based on the Phe508 region, the most common site of disease-causing Delta-F508 mutation ;

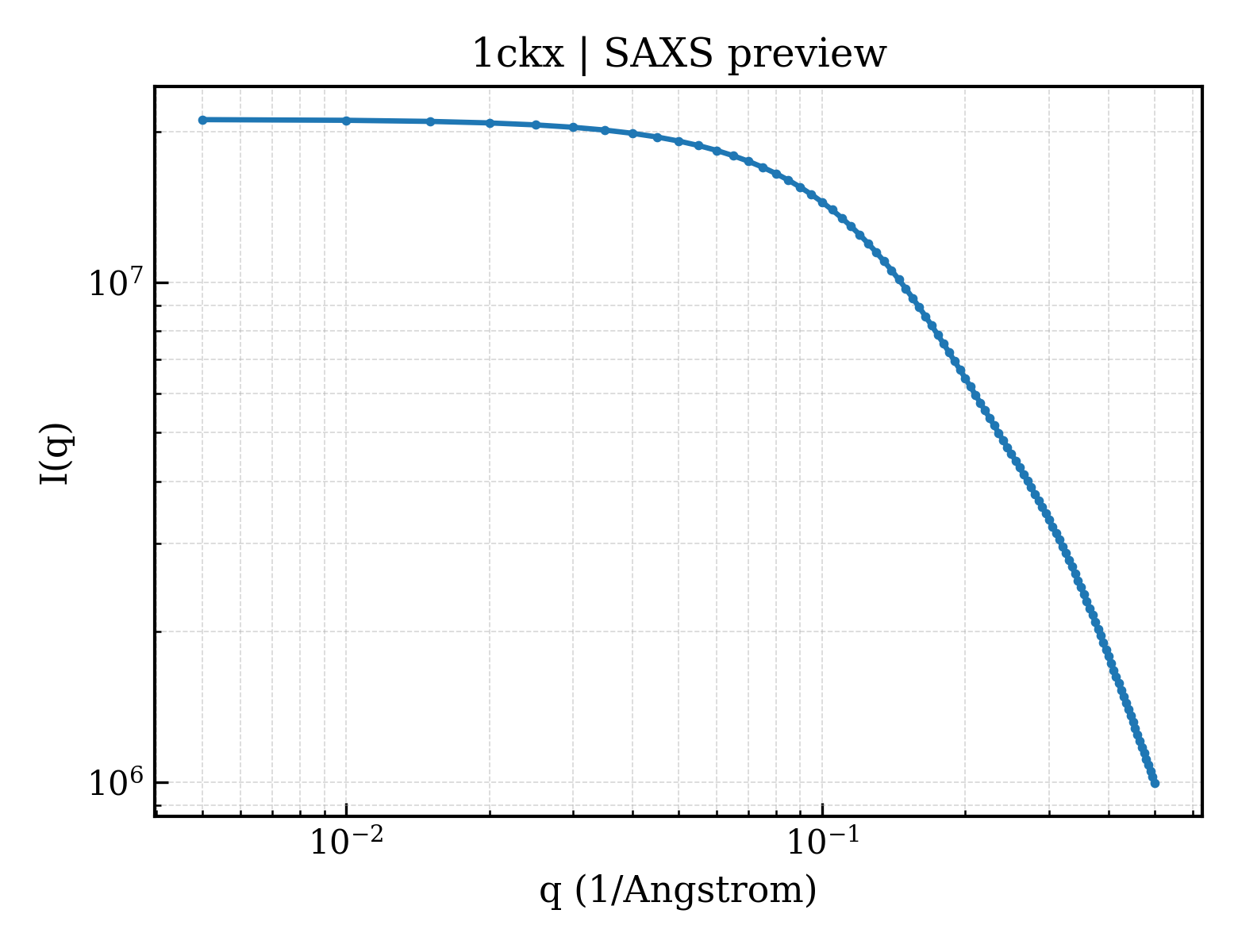

SAXS Profile

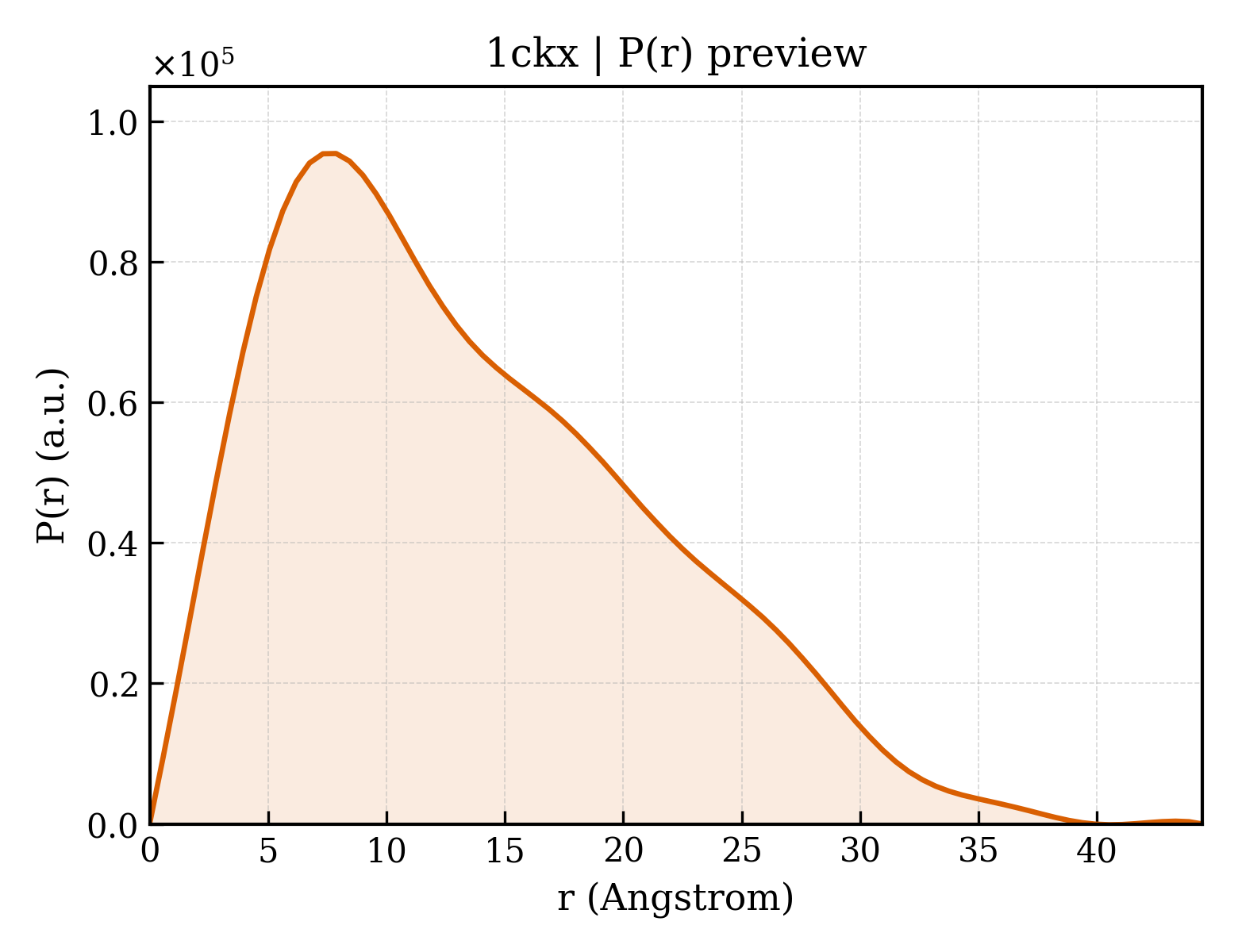

P(r) Distribution
1. Structure Basics
| entry_id | 1ckx |
| deposition_date | 1999-04-26 |
| title | ;Cystic fibrosis transmembrane conductance regulator: Solution structures of peptides based on the Phe508 region, the most common site of disease-causing Delta-F508 mutation ; |
| keywords | P26_TFE, CYSTIC FIBROSIS, PEPTIDES, METAL TRANSPORT; METAL TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.75 Å |
| rg_electron | 11.41 Å |
| i0 | 21162200.00 |
| molecular_weight | 39670.0 kDa |
| excluded_volume | 50467 ų |
| envelope_volume | 10216 ų |
| shell_volume | 7465 ų |
| envelope_diameter | 48.2 Å |
| shell_rg | 17.22 Å |
| envelope_rg | 13.69 Å |
| shape_rg | 11.25 Å |
| total_rg | 12.30 Å |
| total_atoms | 5629 |
| n_residues | 338 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.4 Å |
| rg_real | 11.01 Å |
| rg_real_error | 0.60 Å |
| i0_real | 2.1160e+07 |
| i0_real_error | 2.6140e+05 |
| rg_reciprocal | 11.00 Å |
| i0_reciprocal | 21160000.0000 |
| total_estimate | 0.6718 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 7.9 Å |
| skewness | 0.608 |
| kurtosis | -0.313 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5559.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.244; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.009; Smooth: 0.989 |
