1cky
;CYSTIC FIBROSIS TRANSMEMBRANE CONDUCTANCE REGULATOR: SOLUTION STRUCTURES OF PEPTIDES BASED ON THE PHE508 REGION, THE MOST COMMON SITE OF DISEASE-CAUSING DELTA-F508 MUTATION ;

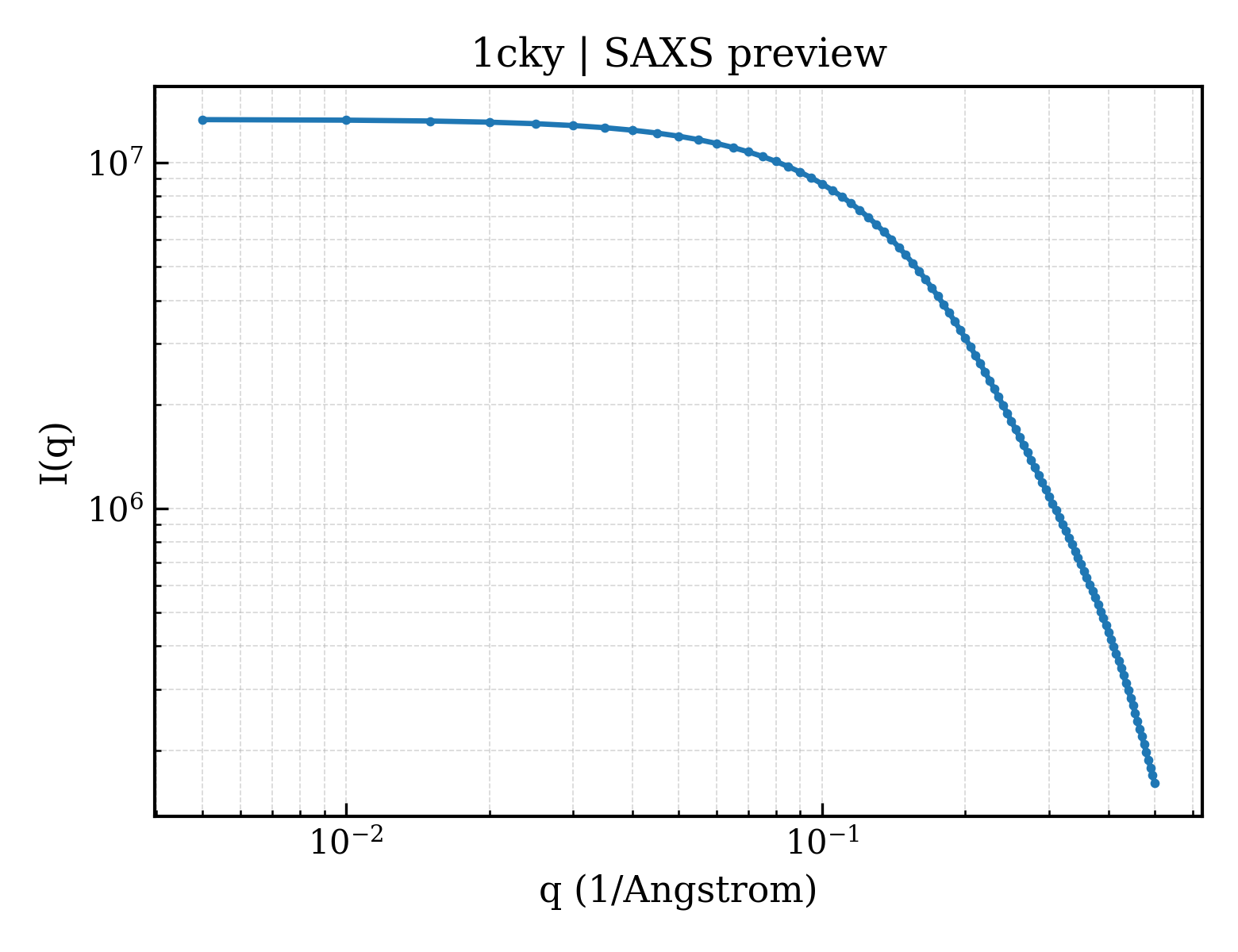

SAXS Profile

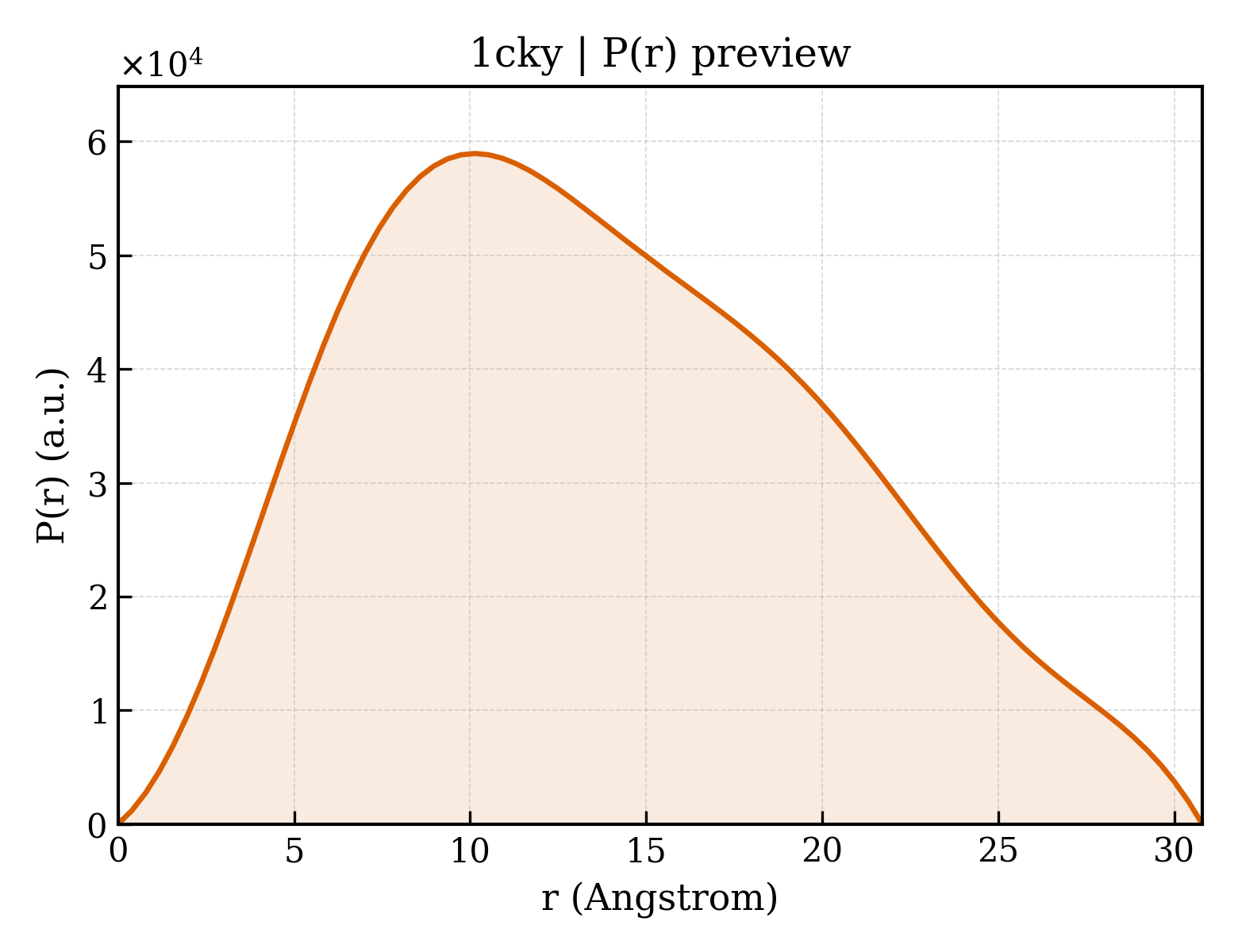

P(r) Distribution
1. Structure Basics
| entry_id | 1cky |
| deposition_date | 1999-04-26 |
| title | ;CYSTIC FIBROSIS TRANSMEMBRANE CONDUCTANCE REGULATOR: SOLUTION STRUCTURES OF PEPTIDES BASED ON THE PHE508 REGION, THE MOST COMMON SITE OF DISEASE-CAUSING DELTA-F508 MUTATION ; |
| keywords | CYSTIC FIBROSIS, PEPTIDES, METAL TRANSPORT; METAL TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.42 Å |
| rg_electron | 11.50 Å |
| i0 | 13343100.00 |
| molecular_weight | 30515.0 kDa |
| excluded_volume | 38821 ų |
| envelope_volume | 13992 ų |
| shell_volume | 9405 ų |
| envelope_diameter | 53.8 Å |
| shell_rg | 18.41 Å |
| envelope_rg | 14.26 Å |
| shape_rg | 11.37 Å |
| total_rg | 12.61 Å |
| total_atoms | 4330 |
| n_residues | 260 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 30.8 Å |
| rg_real | 10.76 Å |
| rg_real_error | 0.05 Å |
| i0_real | 1.2790e+07 |
| i0_real_error | 1.0380e+05 |
| rg_reciprocal | 11.61 Å |
| i0_reciprocal | 13340000.0000 |
| total_estimate | 0.6776 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 10.1 Å |
| skewness | 0.324 |
| kurtosis | -0.644 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 4.9690 |
| highest_alpha | 31730.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.996; Stabil: 0.971; Sysdev: 0.000; Positv: 1.000; Valcen: 0.907; Smooth: 0.000 |
