1ckz
;CYSTIC FIBROSIS TRANSMEMBRANE CONDUCTANCE REGULATOR: SOLUTION STRUCTURES OF PEPTIDES BASED ON THE PHE508 REGION, THE MOST COMMON SITE OF DISEASE-CAUSING DELTA-F508 MUTATION ;

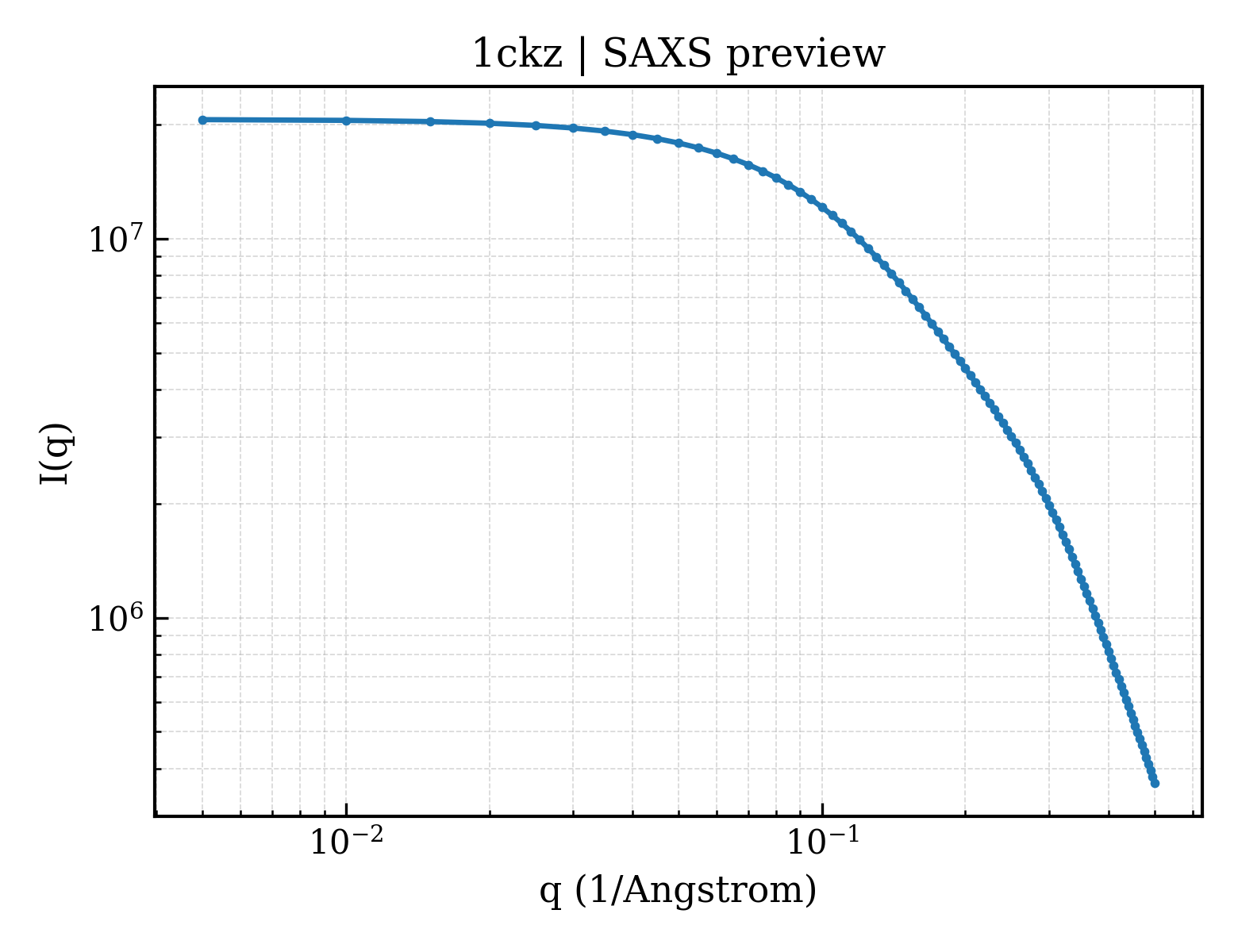

SAXS Profile

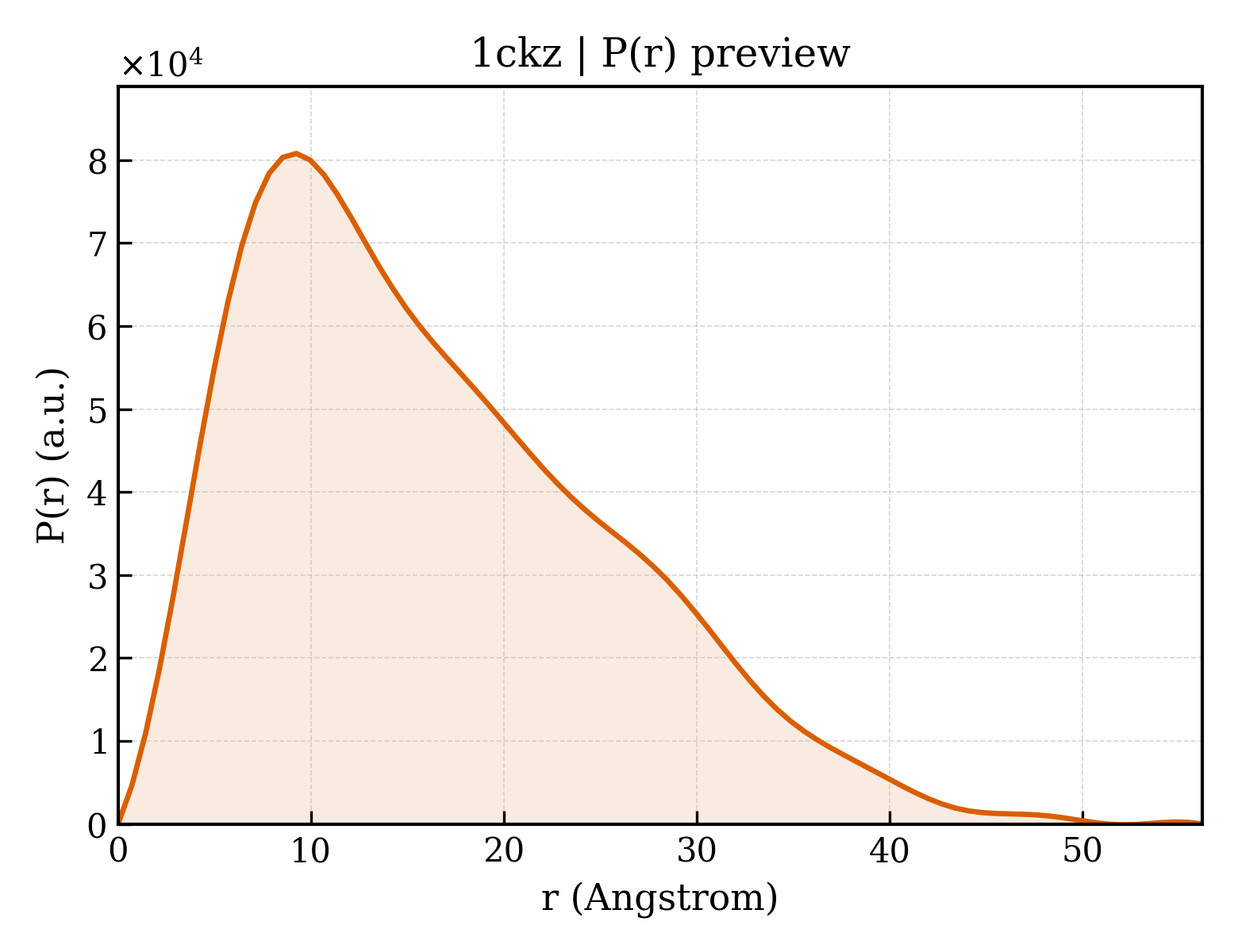

P(r) Distribution
1. Structure Basics
| entry_id | 1ckz |
| deposition_date | 1999-04-26 |
| title | ;CYSTIC FIBROSIS TRANSMEMBRANE CONDUCTANCE REGULATOR: SOLUTION STRUCTURES OF PEPTIDES BASED ON THE PHE508 REGION, THE MOST COMMON SITE OF DISEASE-CAUSING DELTA-F508 MUTATION ; |
| keywords | CYSTIC FIBROSIS, PEPTIDES, METAL TRANSPORT; METAL TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.93 Å |
| rg_electron | 13.42 Å |
| i0 | 20635800.00 |
| molecular_weight | 37757.0 kDa |
| excluded_volume | 47782 ų |
| envelope_volume | 15598 ų |
| shell_volume | 9591 ų |
| envelope_diameter | 57.8 Å |
| shell_rg | 19.74 Å |
| envelope_rg | 16.14 Å |
| shape_rg | 13.25 Å |
| total_rg | 14.47 Å |
| total_atoms | 5369 |
| n_residues | 325 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.2 Å |
| rg_real | 13.26 Å |
| rg_real_error | 0.90 Å |
| i0_real | 2.0640e+07 |
| i0_real_error | 2.6080e+05 |
| rg_reciprocal | 13.24 Å |
| i0_reciprocal | 20640000.0000 |
| total_estimate | 0.6455 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 9.2 Å |
| skewness | 0.699 |
| kurtosis | -0.055 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 33040.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.133; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.003; Smooth: 0.985 |
