ANTI-CARCINOEMBRYONIC ANTIGEN MONOCLONAL ANTIBODY A5B7

entry_id	1clo
deposition_date	1996-05-01
title	ANTI-CARCINOEMBRYONIC ANTIGEN MONOCLONAL ANTIBODY A5B7
keywords	IMMUNOGLOBULIN, FAB-FRAGMENT; IMMUNOGLOBULIN
method	X-RAY DIFFRACTION

rg_guinier	25.42 Å
rg_electron	24.37 Å
i0	38611300.00
molecular_weight	47267.0 kDa
excluded_volume	58716 ų
envelope_volume	72152 ų
shell_volume	24751 ų
envelope_diameter	80.5 Å
shell_rg	31.52 Å
envelope_rg	24.11 Å
shape_rg	24.34 Å
total_rg	25.23 Å
total_atoms	3327
n_residues	435
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	78.1 Å
rg_real	25.38 Å
rg_real_error	0.47 Å
i0_real	3.8610e+07
i0_real_error	5.2380e+05
rg_reciprocal	25.40 Å
i0_reciprocal	38610000.0000
total_estimate	0.9131
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	29.0 Å
skewness	0.249
kurtosis	-0.555
angular_range	— – 0.3100 Å−1
current_alpha	0.0000
highest_alpha	7554000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.974; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.949

Unit Cell

length_a	38.890 Å
length_b	79.680 Å
length_c	68.520 Å
angle_alpha	90.00 °
angle_beta	104.91 °
angle_gamma	90.00 °
z_pdb	2

Symmetry

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

Refinement

resolution	2.100 Å
resolution_low	8.000 Å
r_factor	0.2120
r_work	0.2120
r_free	—

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/cl/1clo/pr_distribution.json
• pr_output /app/data/pr_computation/cl/1clo/1clo.pr.out

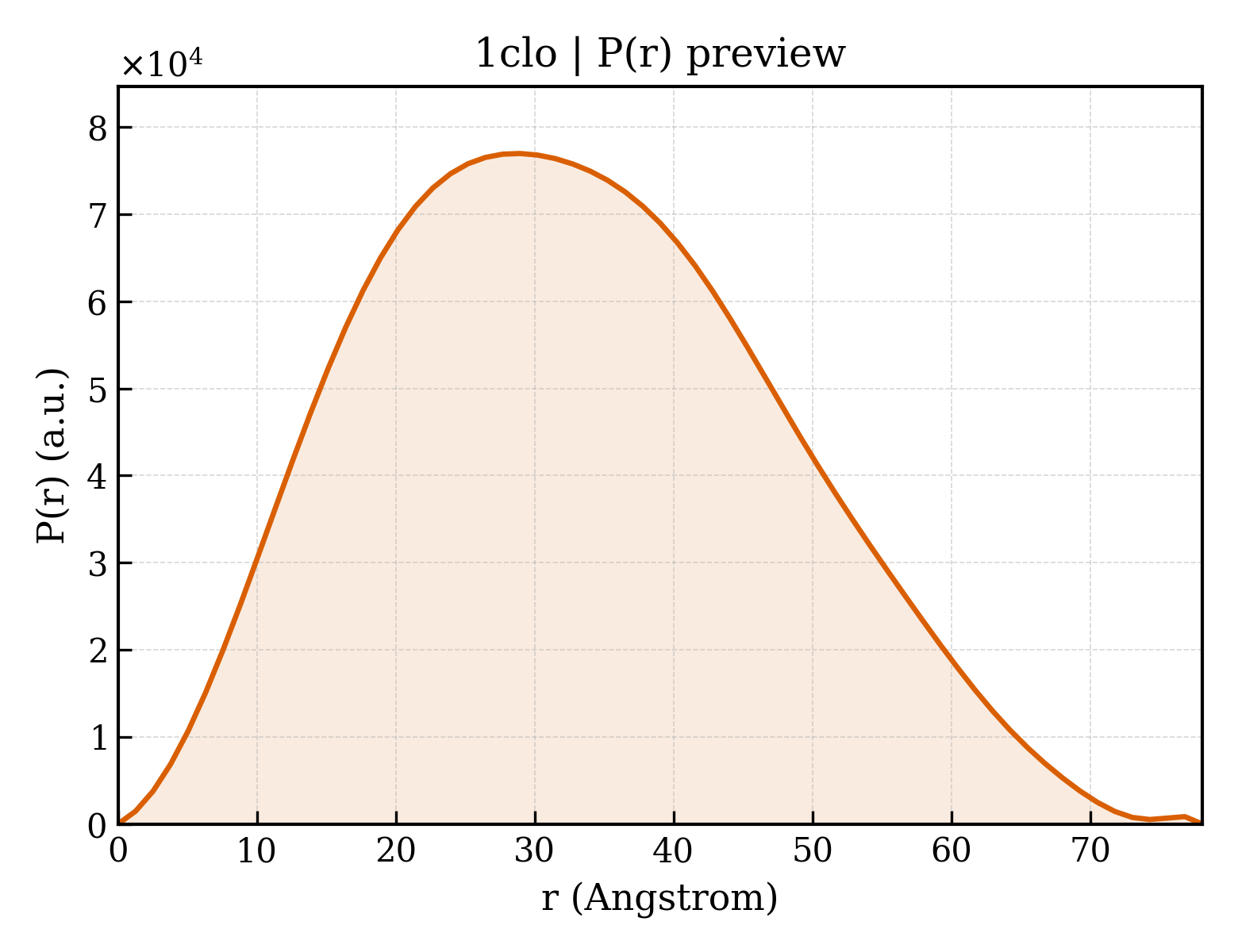

• pr_plot /app/data/visualization/pr_computation/cl/1clo/1clo_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/cl/1clo/1clo.dat
• saxs_fit /app/data/saxs_computation/cl/1clo/1clo.fit
• saxs_log /app/data/saxs_computation/cl/1clo/1clo.log
• saxs_plot /app/data/visualization/saxs_computation/cl/1clo/1clo_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/cl/1clo/1clo.fit
pddf	/app/data/pr_computation/cl/1clo/1clo.pr.out
profile	/app/data/saxs_computation/cl/1clo/1clo.dat
