1fbi

CRYSTAL STRUCTURE OF A CROSS-REACTION COMPLEX BETWEEN FAB F9.13.7 AND GUINEA-FOWL LYSOZYME

Method: X-RAY DIFFRACTION D_max: 209.0 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

IGG1 F9.13.7 FAB (HEAVY CHAIN)

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain H； UniProt 1–99	Not recorded	IGG1 F9.13.7 FAB (LIGHT CHAIN) × 1 GUINEA FOWL LYSOZYME × 1 （P00704）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.00 Å
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain Q； UniProt 1–99	Not recorded	IGG1 F9.13.7 FAB (LIGHT CHAIN) × 1 GUINEA FOWL LYSOZYME × 1 （P00704）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.00 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FBI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AI1 HIV-1 V3 LOOP MIMIC Deposited 1996-11-06	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–100（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.80 Å
1CLO ANTI-CARCINOEMBRYONIC ANTIGEN MONOCLONAL ANTIBODY A5B7 Deposited 1996-05-01	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–101（101 aa） Fragment：ANTIGEN BINDING FRAGMENT, FAB	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1DBA THREE-DIMENSIONAL STRUCTURE OF AN ANTI-STEROID FAB' AND PROGESTERONE-FAB' COMPLEX Deposited 1992-11-10	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	EOH ETHANOL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1DBB THREE-DIMENSIONAL STRUCTURE OF AN ANTI-STEROID FAB' AND PROGESTERONE-FAB' COMPLEX Deposited 1992-11-11	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	STR PROGESTERONE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
1DBJ MOLECULAR BASIS OF CROSS-REACTIVITY AND THE LIMITS OF ANTIBODY-ANTIGEN COMPLEMENTARITY Deposited 1993-08-24	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	AE2 AETIOCHOLANOLONE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
1DBK MOLECULAR BASIS OF CROSS-REACTIVITY AND THE LIMITS OF ANTIBODY-ANTIGEN COMPLEMENTARITY Deposited 1993-08-24	Different construct Different oligomeric state Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	ANO 5-BETA-ANDROSTANE-3,17-DIONE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å
1DBM MOLECULAR BASIS OF CROSS-REACTIVITY AND THE LIMITS OF ANTIBODY-ANTIGEN COMPLEMENTARITY Deposited 1993-08-24	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	SIH PROGESTERONE-11-ALPHA-OL-HEMISUCCINATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.70 Å
1KEL CATALYTIC ANTIBODY 28B4 FAB FRAGMENT COMPLEXED WITH HAPTEN (1-[N-4'-NITROBENZYL-N-4'-CARBOXYBUTYLAMINO] METHYLPHOSPHONIC ACID) Deposited 1996-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa） Fragment：VARIABLE REGIONS OF LIGHT AND HEAVY CHAINS	Not recorded	AAH 1-[N-4'-NITROBENZYL-N-4'-CARBOXYBUTYLAMINO]METHYLPHOSPHONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 1.90 Å R-free 0.258
1KEM CATALYTIC ANTIBODY 28B4 FAB FRAGMENT Deposited 1996-04-16	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–99（99 aa） Fragment：VARIABLE REGIONS OF LIGHT AND HEAVY CHAINS	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 2.20 Å R-free 0.288
1NTL Model of mouse Crry-Ig determined by solution scattering, curve fitting and homology modelling Deposited 2003-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental method Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 98–324（227 aa） Fragment：Q64735 residues 83-401,P01868 residues 98-324 Chain B 98–324（227 aa） Fragment：Q64735 residues 83-401,P01868 residues 98-324	Not recorded	No recorded non-water small molecule	SOLUTION SCATTERING mmCIF provides none of the parsed conditions	Resolution 30.00 Å
1OPG OPG2 FAB FRAGMENT Deposited 1995-04-28	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–102（102 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1T2Q The Crystal Structure of an NNA7 Fab that recognizes an N-type blood group antigen Deposited 2004-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–102（102 aa）	Not recorded	GOL GLYCEROL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PEG MME 5K, ammonium sulfate, MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.83 Å R-free 0.247
1YED STRUCTURE OF A CATALYTIC ANTIBODY IGG2A FAB FRAGMENT (D2.4) Deposited 1997-04-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–102（102 aa）	Not recorded	PNB 4-NITRO-BENZYLPHOSPHONOBUTANOYL-GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 3.10 Å R-free 0.260
1YED STRUCTURE OF A CATALYTIC ANTIBODY IGG2A FAB FRAGMENT (D2.4) Deposited 1997-04-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–102（102 aa）	Not recorded	PNB 4-NITRO-BENZYLPHOSPHONOBUTANOYL-GLYCINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 3.10 Å R-free 0.260
2ATY Complement receptor chimaeric conjugate CR2-Ig Deposited 2005-08-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 98–324（227 aa） Chain B 98–324（227 aa）	Not recorded	No recorded non-water small molecule	SOLUTION SCATTERING mmCIF provides none of the parsed conditions	Resolution not provided
2DBL MOLECULAR BASIS OF CROSS-REACTIVITY AND THE LIMITS OF ANTIBODY-ANTIGEN COMPLEMENTARITY Deposited 1994-02-08	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–100（100 aa）	Not recorded	S5H 5-ALPHA-PREGNANE-3-BETA-OL-HEMISUCCINATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å
2DBL MOLECULAR BASIS OF CROSS-REACTIVITY AND THE LIMITS OF ANTIBODY-ANTIGEN COMPLEMENTARITY Deposited 1994-02-08	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain H 1–100（100 aa）	Not recorded	S5H 5-ALPHA-PREGNANE-3-BETA-OL-HEMISUCCINATE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å

15 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GC1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 123–221； UniProt 1–99 Author chain Q； PDBConstruct 123–221； UniProt 1–99

GUINEA FOWL LYSOZYME

Numida meleagris

UniProt P00704

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain X； UniProt 1–129	Not recorded	IGG1 F9.13.7 FAB (LIGHT CHAIN) × 1 IGG1 F9.13.7 FAB (HEAVY CHAIN) × 1 （P01868）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.00 Å
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain Y； UniProt 1–129	Not recorded	IGG1 F9.13.7 FAB (LIGHT CHAIN) × 1 IGG1 F9.13.7 FAB (HEAVY CHAIN) × 1 （P01868）	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.00 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1FBI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1HHL THE THREE-DIMENSIONAL STRUCTURE OF PHEASANT AND GUINEA-FOWL EGG LYSOZYMES Deposited 1993-05-04	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–129（129 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LYSC_NUMME
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain X； PDBConstruct 1–129； UniProt 1–129 Author chain Y； PDBConstruct 1–129； UniProt 1–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fbi
Deposition date deposition_date	1995-01-19
Structure title title	CRYSTAL STRUCTURE OF A CROSS-REACTION COMPLEX BETWEEN FAB F9.13.7 AND GUINEA-FOWL LYSOZYME
Keywords keywords	COMPLEX (ANTIBODY-ANTIGEN), COMPLEX (ANTIBODY-ANTIGEN) complex; COMPLEX (ANTIBODY/ANTIGEN)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	70.93 Å
Radius of gyration Rg (electron density) rg_electron	71.94 Å
Forward intensity I(0) i0	217598000.00
Molecular weight molecular_weight	121200.0 kDa
Excluded volume excluded_volume	150070 Å³
Envelope volume envelope_volume	255330 Å³
Hydration-shell volume shell_volume	30227 Å³
Envelope diameter envelope_diameter	228.4 Å
Shell Rg shell_rg	67.96 Å
Envelope Rg envelope_rg	69.44 Å
Shape Rg shape_rg	71.91 Å
Total Rg total_rg	71.99 Å
Total atoms total_atoms	8521
Residues n_residues	1128
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

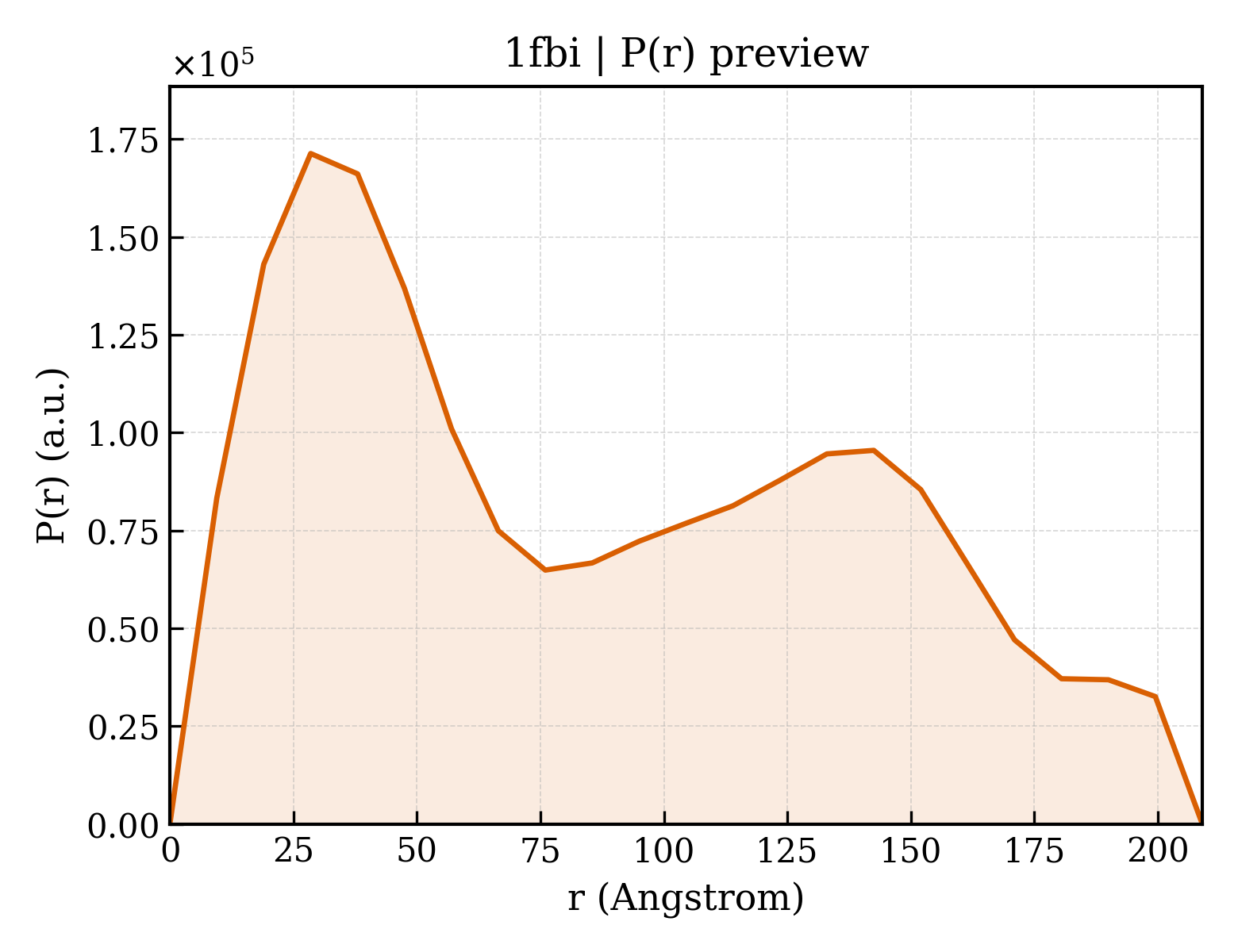

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	209.0 Å
Rg (real space) rg_real	71.60 Å
Rg uncertainty (real space) rg_real_error	1.93 Å
I(0) (real space) i0_real	2.1740e+08
I(0) uncertainty (real space) i0_real_error	4.4700e+06
Rg (reciprocal space) rg_reciprocal	67.62 Å
I(0) (reciprocal space) i0_reciprocal	215900000.0000
Solution quality estimate total_estimate	0.5649
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.5 Å
Skewness Skewness skewness	0.352
Kurtosis Kurtosis kurtosis	-1.129
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0014
Highest regularization parameter α highest_alpha	3980000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.075; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.056; Smooth: 0.063

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	IGG1 F9.13.7 FAB (LIGHT CHAIN)
Molecular weight formula_weight	23833.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,P
Atom count atom_count	8521

DIQMTQTTSSLSASLGDRVTISCRASQDISNYLNWYQKKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGTDYSLTIRNLEQEDIATYFCQQGYTLPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 2 Entity 2 polymer

Description description	IGG1 F9.13.7 FAB (HEAVY CHAIN)
Molecular weight formula_weight	23634.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,Q

QVQLQQPGAELVKPGASVKLSCKASGYTFTSYWMHWVKQGPGQGLEWIGEIDPSDSYPNYNEKFKGKATLTVDKSSSTAYMQLSSLTSEDSAVYYCASLYYYGTSYGVLDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKIVP

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 3 Entity 3 polymer

Description description	GUINEA FOWL LYSOZYME
Molecular weight formula_weight	14329.2 kDa
EC 编号 ec_number	3.2.1.17
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

KVFGRCELAAAMKRHGLDNYRGYSLGNWVCAAKFESNFNSQATNRNTDGSTDYGVLQINSRWWCNDGRTPGSRNLCNIPCSALQSSDITATANCAKKIVSDGNGMNAWVAWRKHCKGTDVRVWIKGCRL

来源 Source

来源生物 organism	Numida meleagris
通用名 common_name	helmeted guineafowl
NCBI Class编号 ncbi_taxonomy_id	8996

▼

7. Fold Classification (SCOP + CATH) 22 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1fbih1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1fbih2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1fbih3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1fbil1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1fbil2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1fbip1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1fbip2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1fbiq1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1fbiq2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1fbiq3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1fbix_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.2 — Lysozyme-like
Superfamily Superfamily superfamily	d.2.1 — Lysozyme-like
Family Family family	d.2.1.2 — C-type lysozyme

Domain ID domain_id	d1fbiy_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.2 — Lysozyme-like
Superfamily Superfamily superfamily	d.2.1 — Lysozyme-like
Family Family family	d.2.1.2 — C-type lysozyme

CATH v4.4 (10 domains)

Domain ID domain_id	1fbiH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiP01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiP02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiQ01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiQ02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1fbiX00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fbiY00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (3)

▶

Unit-cell length a length_a	83.700 Å
Unit-cell length b length_b	195.500 Å
Unit-cell length c length_c	50.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.1900
R_work r_work	0.1900
R_free r_free	—

fit	/app/data/saxs_computation/fb/1fbi/1fbi.fit
pddf	/app/data/pr_computation/fb/1fbi/1fbi.pr.out
profile	/app/data/saxs_computation/fb/1fbi/1fbi.dat

CRYSTAL STRUCTURE OF A CROSS-REACTION COMPLEX BETWEEN FAB F9.13.7 AND GUINEA-FOWL LYSOZYME

1. Protein Identity and Related Structures Protein Identity & Related Structures

IGG1 F9.13.7 FAB (HEAVY CHAIN)

State in the Current Structure

Other States of the Same Protein in the Database

GUINEA FOWL LYSOZYME

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 22 domains

SCOP 2.08 (12 domains)

CATH v4.4 (10 domains)

8. Citations (3)

9. Files and Curves (10)

Files (7)

Curves (3)
