TAILSPIKE PROTEIN FROM PHAGE P22, V331A MUTANT

Method: X-RAY DIFFRACTION D_max: 129.1 Å Quality: REASONABLE

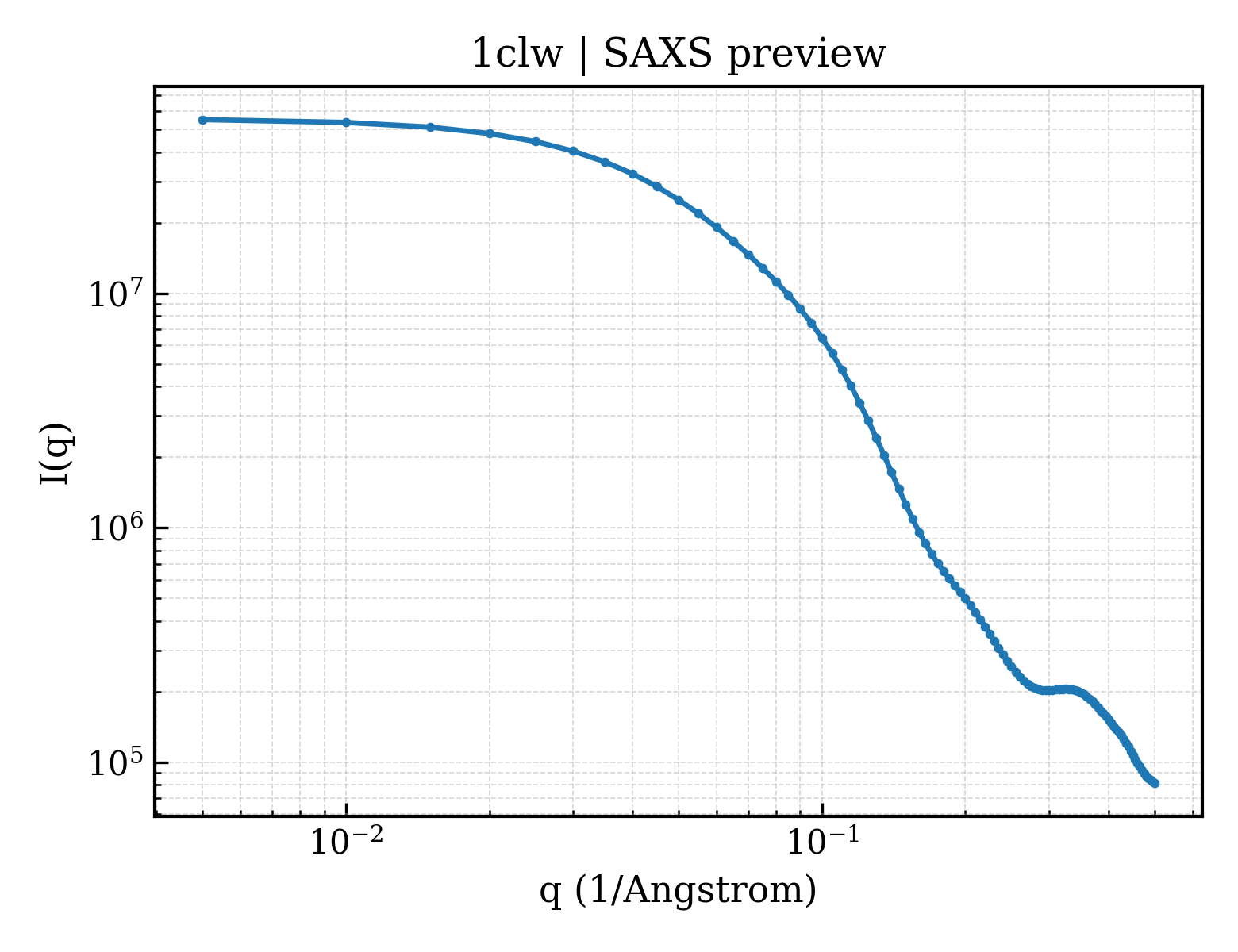

SAXS Profile

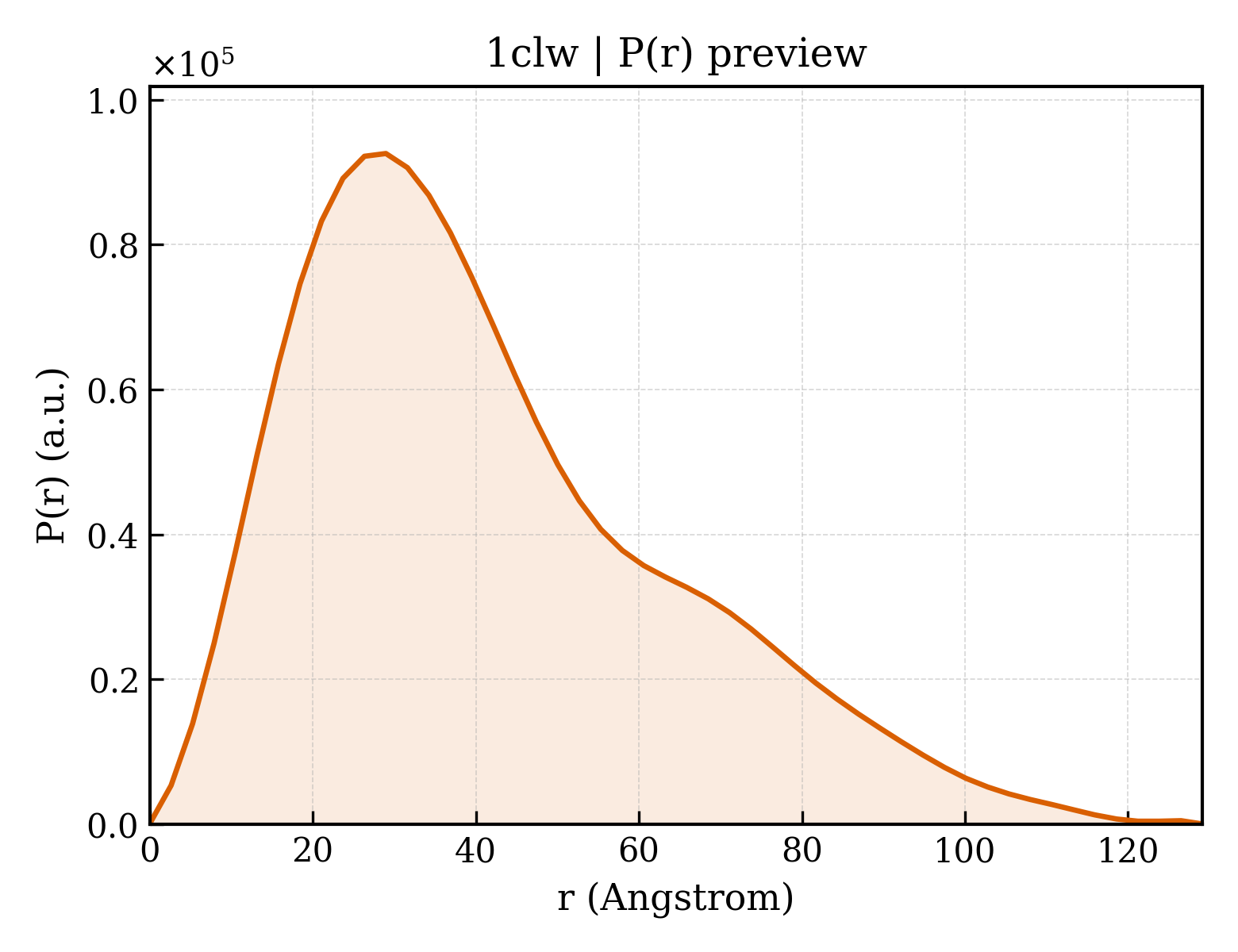

P(r) Distribution

▼

1. Structure Basics

entry_id	1clw
deposition_date	1999-05-04
title	TAILSPIKE PROTEIN FROM PHAGE P22, V331A MUTANT
keywords	LATE PROTEIN, VIRUS/VIRAL PROTEIN, Viral protein; VIRAL PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.56 Å
rg_electron	33.59 Å
i0	55571500.00
molecular_weight	58350.0 kDa
excluded_volume	72883 Å³
envelope_volume	97650 Å³
shell_volume	27896 Å³
envelope_diameter	135.2 Å
shell_rg	34.43 Å
envelope_rg	34.92 Å
shape_rg	33.57 Å
total_rg	33.72 Å
total_atoms	4113
n_residues	543
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	129.1 Å
rg_real	33.39 Å
rg_real_error	1.87 Å
i0_real	5.5570e+07
i0_real_error	1.0890e+06
rg_reciprocal	33.04 Å
i0_reciprocal	55550000.0000
total_estimate	0.6913
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	29.0 Å
skewness	0.795
kurtosis	0.120
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	7064000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.278; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.178; Smooth: 0.972

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	120.900 Å
length_b	120.900 Å
length_c	120.900 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 3
int_tables_number	198
crystal_system	—

resolution	2.000 Å
resolution_low	8.000 Å
r_factor	0.1710
r_work	0.1710
r_free	—

description	TAILSPIKE PROTEIN
formula_weight	59588.6 kDa
mutation	V331A
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	4326

TAILSPIKE PROTEIN FROM PHAGE P22, V331A MUTANT

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Enterobacteria phage P22
ncbi_taxonomy_id	10754
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	213

fit	/app/data/saxs_computation/cl/1clw/1clw.fit
pddf	/app/data/pr_computation/cl/1clw/1clw.pr.out
profile	/app/data/saxs_computation/cl/1clw/1clw.dat
