SAXSdb — 1cnl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ALPHA-CONOTOXIN IMI)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–12	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 3.1；280 K NMR sample composition：10% D2O/90% H2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CNL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1E74 NMR SOLUTION STRUCTURE OF ALPHA-CONOTOXIN IM1 POINT MUTATION VARIANT R11E Deposited 2000-08-24	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.1；298 K	Resolution not provided
1E75 NMR SOLUTION STRUCTURE OF ALPHA-CONOTOXIN IM1 POINT MUTATION VARIANT R7L Deposited 2000-08-24	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.7；298 K	Resolution not provided
1E76 NMR SOLUTION STRUCTURE OF ALPHA-CONOTOXIN IM1 POINT MUTATION VARIANT D5N Deposited 2000-08-24	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.1；298 K	Resolution not provided
1G2G MINIMAL CONFORMATION OF THE ALPHA-CONOTOXIN IMI FOR THE ALPHA7 NEURONAL NICOTINIC ACETYLCHOLINE RECEPTOR RECOGNITION Deposited 2000-10-19	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.8；278 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 5-6 mM alpha-ImI; 90 % H2O, 10 % D2O; 0.1 M potassium phosphate buffer pH 5.8 \| 90 % H2O, 10 % D2O; 0.1 M potassium phosphate buffer pH 5.8	Resolution not provided
1IM1 NMR SOLUTION STRUCTURE OF ALPHA-CONOTOXIN IM1, 20 STRUCTURES Deposited 1998-11-18	Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3；298 K NMR sample composition 90% H2O/10% D2O OR 100% D2O	Resolution not provided
1IMI SOLUTION STRUCTURE OF ALPHA-CONOTOXIN IM1 Deposited 1998-11-27	Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–12（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；278 K；Pressure 1 NMR sample composition 90% H2O/ 10% D2O	Resolution not provided
2BC7 Solution structure of [Sec2,8]-ImI Deposited 2005-10-18	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–16（12 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.5；290 K；Ionic strength (raw mmCIF value) 1；Pressure ambient NMR sample composition 1mM peptide \| 90% H2O/10% D2O	Resolution not provided
2BC8 [Sec2,3,8,12]-ImI Deposited 2005-10-18	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–16（12 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.5；290 K；Ionic strength (raw mmCIF value) 1；Pressure ambient NMR sample composition 2mM [Sec2,3,8,12]-ImI \| 90% D2O, 10% H2O NMR sample composition 2mM [Sec2,3,8,12]-ImI \| 100% D2O	Resolution not provided
2BYP Crystal structure of Aplysia californica AChBP in complex with alpha- conotoxin ImI Deposited 2005-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain F 5–16（12 aa） Chain G 5–16（12 aa） Chain H 5–16（12 aa） Chain I 5–16（12 aa） Chain J 5–16（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；11-14% PEG-4000, 0.1 M TRIS, PH 7.5, 0.4 M MGCL2	Resolution 2.07 Å R-free 0.214
2C9T Crystal Structure Of Acetylcholine Binding Protein (AChBP) From Aplysia Californica In Complex With alpha-Conotoxin ImI Deposited 2005-12-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain K 5–16（12 aa） Fragment：RESIDUES 5-16 Chain M 5–16（12 aa） Fragment：RESIDUES 5-16 Chain O 5–16（12 aa） Fragment：RESIDUES 5-16 Chain P 5–16（12 aa） Fragment：RESIDUES 5-16 Chain Q 5–16（12 aa） Fragment：RESIDUES 5-16 Chain R 5–16（12 aa） Fragment：RESIDUES 5-16 Chain S 5–16（12 aa） Fragment：RESIDUES 5-16 Chain T 5–16（12 aa） Fragment：RESIDUES 5-16	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 100 MM SODIUM ACETATE PH 5.5, 12.5% PEG5000 MME	Resolution 2.25 Å R-free 0.227
2MOA Solution NMR structure of peptide ImI1 (peak 2) Deposited 2014-04-24	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–16（12 aa） Fragment：UNP residues 5-16	Mutation：C2(81S), C3A Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.8；278 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 1 mM ImI1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
9NX0 Alpha7-nicotinic acetylcholine receptor bound to conotoxin ImI Deposited 2025-03-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain F 5–16（12 aa） Fragment：residues 5-16 Chain G 5–16（12 aa） Fragment：residues 5-16 Chain H 5–16（12 aa） Fragment：residues 5-16 Chain I 5–16（12 aa） Fragment：residues 5-16 Chain J 5–16（12 aa） Fragment：residues 5-16	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.06 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CXA1_CONIM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–12； UniProt 1–12

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cnl
Deposition date deposition_date	1999-05-20
Structure title title	ALPHA-CONOTOXIN IMI
Keywords keywords	CONOTOXIN, NICOTINIC ACETYLCHOLINE RECEPTOR BLOCKER, TOXIN; TOXIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	5.69 Å
Radius of gyration Rg (electron density) rg_electron	5.86 Å
Forward intensity I(0) i0	4558630.00
Molecular weight molecular_weight	13566.0 kDa
Excluded volume excluded_volume	15476 Å³
Envelope volume envelope_volume	2336 Å³
Hydration-shell volume shell_volume	3339 Å³
Envelope diameter envelope_diameter	23.9 Å
Shell Rg shell_rg	11.13 Å
Envelope Rg envelope_rg	7.58 Å
Shape Rg shape_rg	5.87 Å
Total Rg total_rg	6.24 Å
Total atoms total_atoms	1710
Residues n_residues	120
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

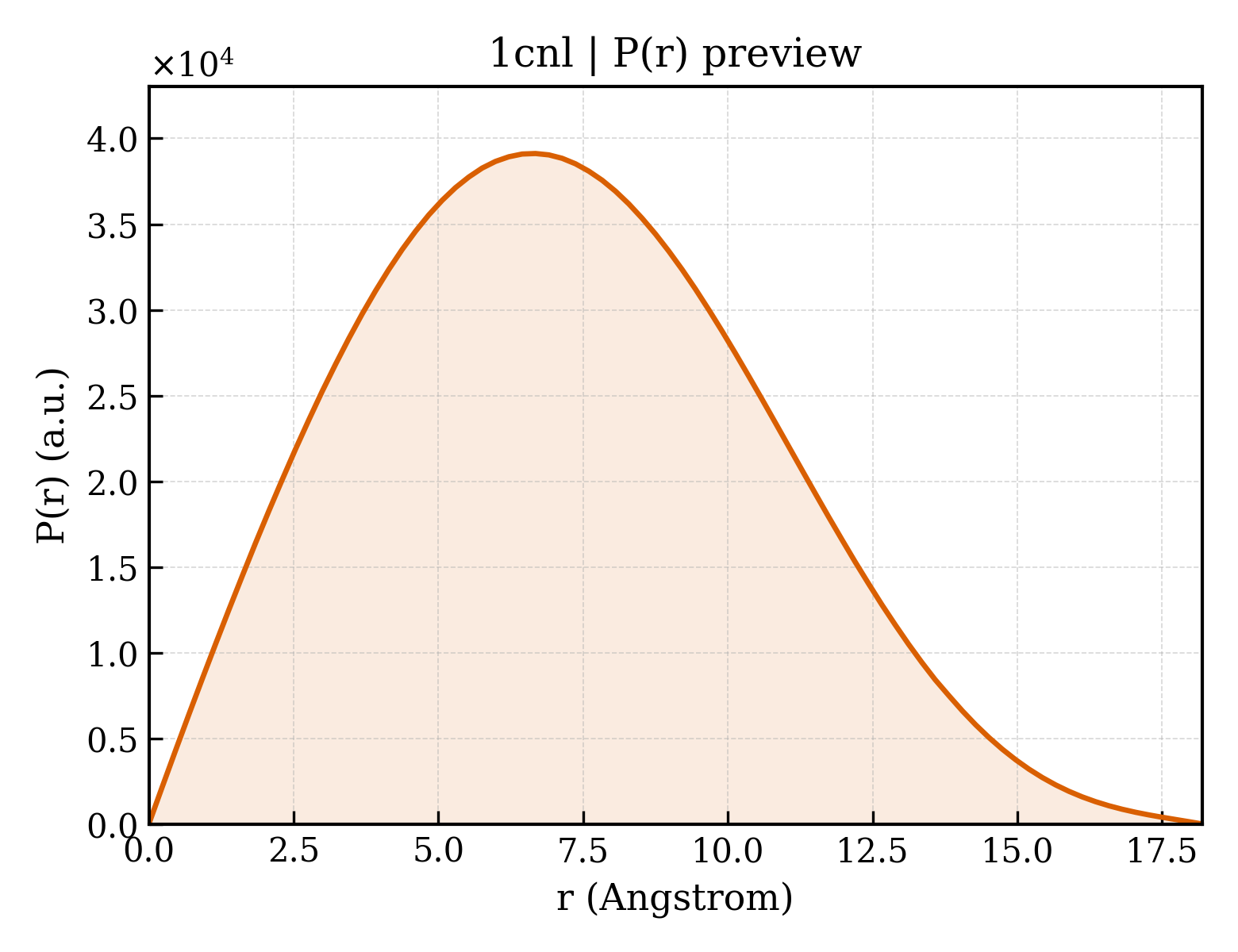

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	18.2 Å
Rg (real space) rg_real	5.62 Å
Rg uncertainty (real space) rg_real_error	0.04 Å
I(0) (real space) i0_real	4.5200e+06
I(0) uncertainty (real space) i0_real_error	2.6140e+04
Rg (reciprocal space) rg_reciprocal	5.79 Å
I(0) (reciprocal space) i0_reciprocal	4559000.0000
Solution quality estimate total_estimate	0.7168
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	6.7 Å
Skewness Skewness skewness	0.265
Kurtosis Kurtosis kurtosis	-0.475
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	2.6000
Highest regularization parameter α highest_alpha	426.1000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.970; Stabil: 0.905; Sysdev: 0.000; Positv: 1.000; Valcen: 0.893; Smooth: 0.810

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1cnla_
Class class	j — Peptides
Fold Fold fold	j.30 — Conotoxins
Superfamily Superfamily superfamily	j.30.1 — Conotoxins
Family Family family	j.30.1.2 — alpha-conotoxin

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	PROTEIN (ALPHA-CONOTOXIN IMI)
Molecular weight formula_weight	1356.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1710

fit	/app/data/saxs_computation/cn/1cnl/1cnl.fit
pddf	/app/data/pr_computation/cn/1cnl/1cnl.pr.out
profile	/app/data/saxs_computation/cn/1cnl/1cnl.dat

ALPHA-CONOTOXIN IMI

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (ALPHA-CONOTOXIN IMI)

State in the Current Structure

Other States of the Same Protein in the Database

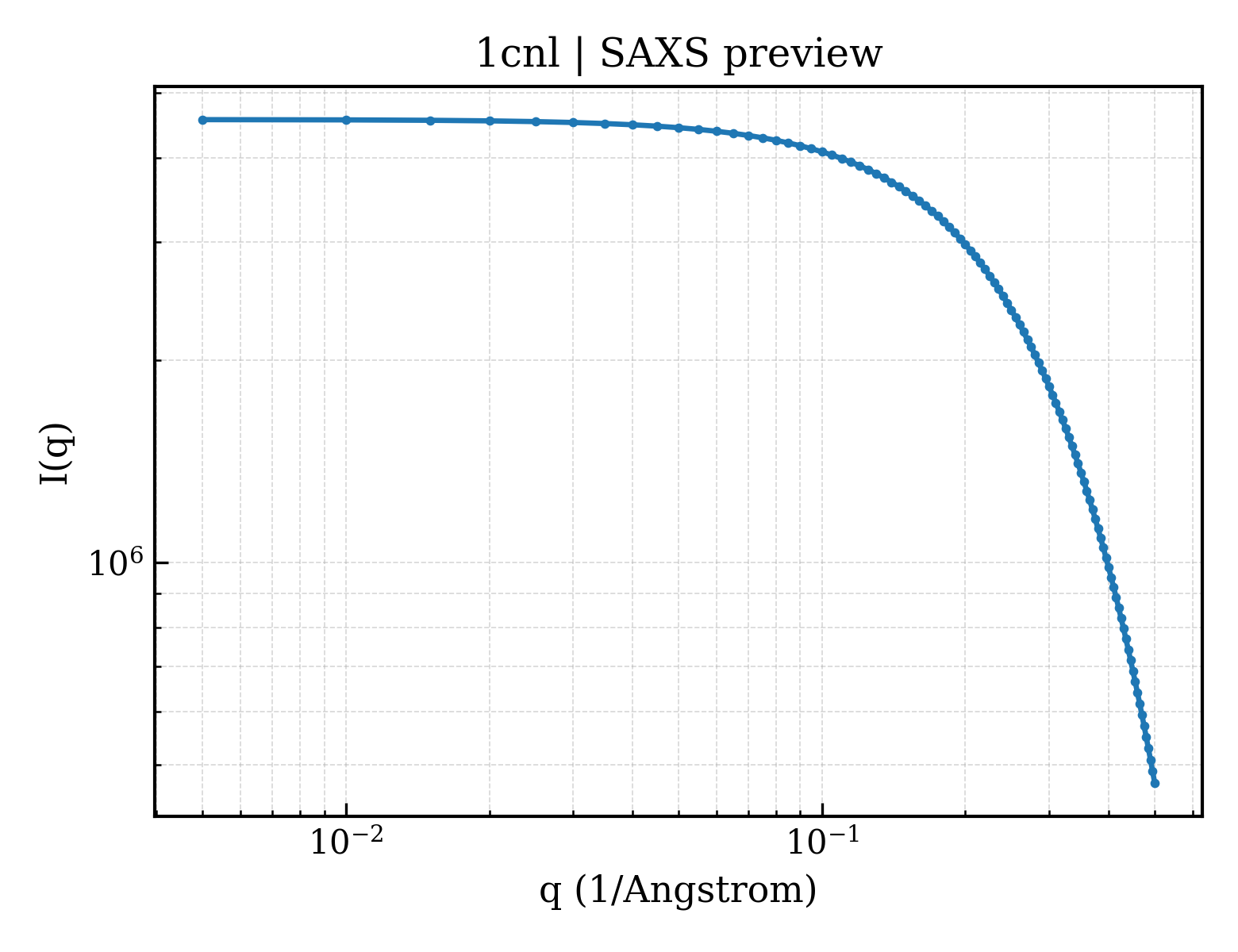

SAXS scattering curve SAXS Profile
