1cnr
CORRELATED DISORDER OF THE PURE PRO22(SLASH)LEU25 FORM OF CRAMBIN AT 150K REFINED TO 1.05 ANGSTROMS RESOLUTION

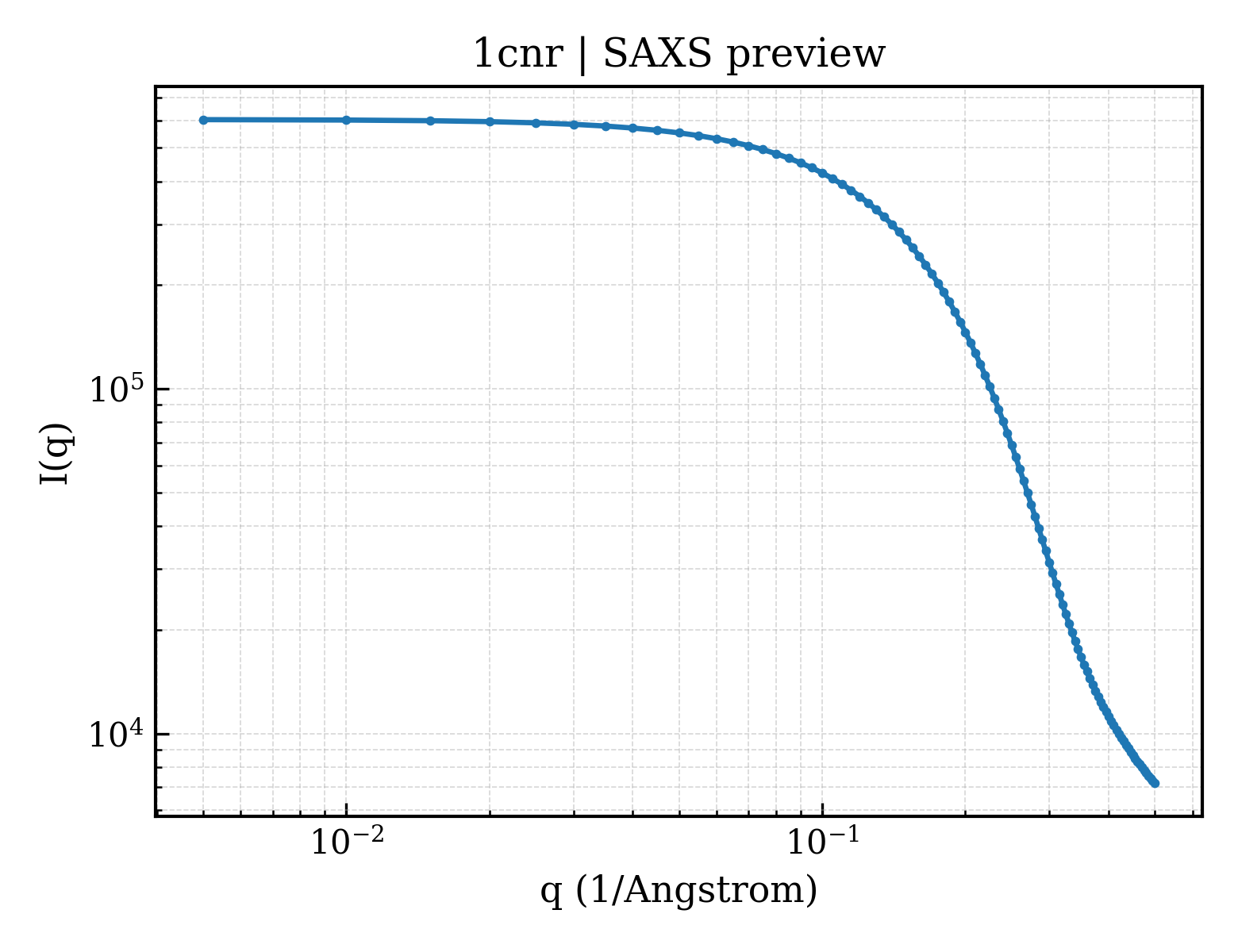

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cnr |
| deposition_date | 1993-07-15 |
| title | CORRELATED DISORDER OF THE PURE PRO22(SLASH)LEU25 FORM OF CRAMBIN AT 150K REFINED TO 1.05 ANGSTROMS RESOLUTION |
| keywords | PLANT SEED PROTEIN; PLANT SEED PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.34 Å |
| rg_electron | 9.59 Å |
| i0 | 604418.00 |
| molecular_weight | 4783.0 kDa |
| excluded_volume | 5891 ų |
| envelope_volume | 6098 ų |
| shell_volume | 5872 ų |
| envelope_diameter | 32.1 Å |
| shell_rg | 14.29 Å |
| envelope_rg | 9.94 Å |
| shape_rg | 9.60 Å |
| total_rg | 10.91 Å |
| total_atoms | 635 |
| n_residues | 46 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.0 Å |
| rg_real | 10.34 Å |
| rg_real_error | 0.28 Å |
| i0_real | 6.0440e+05 |
| i0_real_error | 6.2570e+03 |
| rg_reciprocal | 10.34 Å |
| i0_reciprocal | 604400.0000 |
| total_estimate | 0.8791 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.0 Å |
| skewness | 0.318 |
| kurtosis | -0.217 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 69860.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.949 |
