1cwc
IMPROVED BINDING AFFINITY FOR CYCLOPHILIN A BY A CYCLOSPORIN DERIVATIVE SINGLY MODIFIED AT ITS EFFECTOR DOMAIN

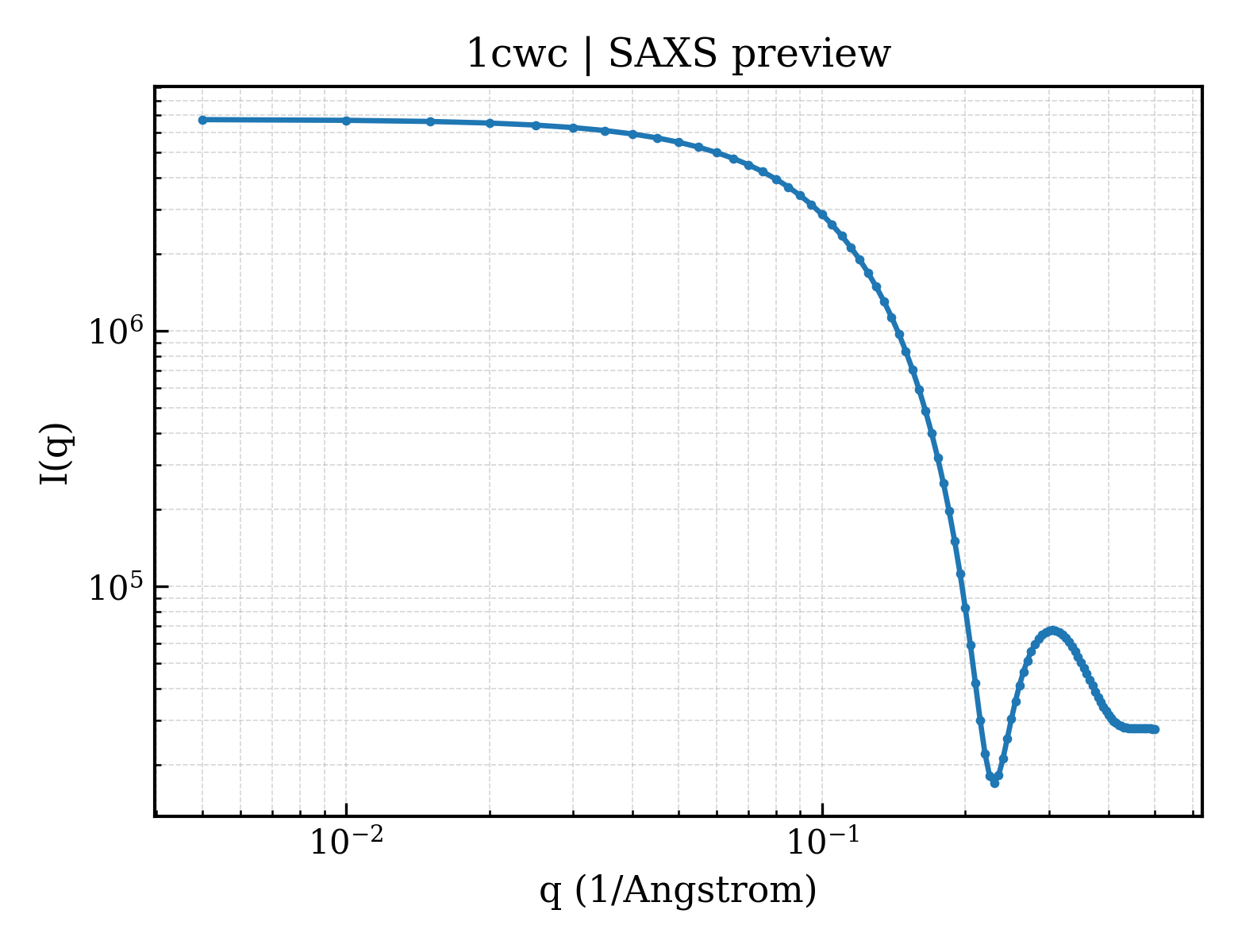

SAXS Profile

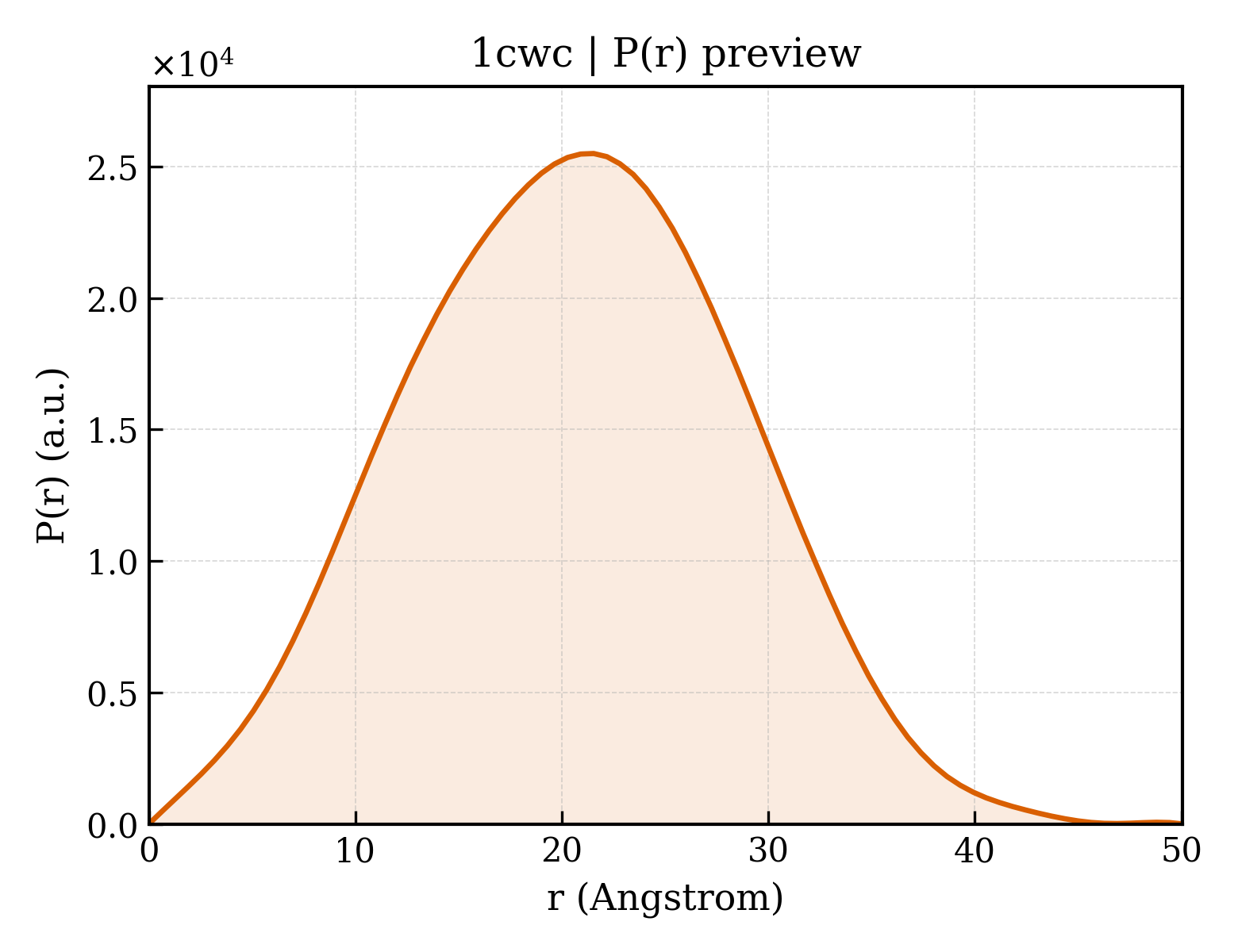

P(r) Distribution
1. Structure Basics
| entry_id | 1cwc |
| deposition_date | 1995-09-06 |
| title | IMPROVED BINDING AFFINITY FOR CYCLOPHILIN A BY A CYCLOSPORIN DERIVATIVE SINGLY MODIFIED AT ITS EFFECTOR DOMAIN |
| keywords | ISOMERASE-IMMUNOSUPPRESSANT COMPLEX, CYCLOPHILIN-CYCLOSPORIN COMPLEX, CYCLOSPORIN A, IMMUNOSUPPRESSANT, CYCLOPHILIN; ISOMERASE/IMMUNOSUPPRESSANT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.75 Å |
| rg_electron | 14.58 Å |
| i0 | 6741260.00 |
| molecular_weight | 19239.0 kDa |
| excluded_volume | 24258 ų |
| envelope_volume | 26182 ų |
| shell_volume | 14729 ų |
| envelope_diameter | 50.8 Å |
| shell_rg | 20.99 Å |
| envelope_rg | 14.89 Å |
| shape_rg | 14.55 Å |
| total_rg | 15.87 Å |
| total_atoms | 1352 |
| n_residues | 167 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.1 Å |
| rg_real | 15.62 Å |
| rg_real_error | 0.23 Å |
| i0_real | 6.7410e+06 |
| i0_real_error | 6.8090e+04 |
| rg_reciprocal | 15.63 Å |
| i0_reciprocal | 6741000.0000 |
| total_estimate | 0.8812 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.5 Å |
| skewness | 0.057 |
| kurtosis | -0.387 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2635000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.997 |
