1cyi
CYTOCHROME C6
SAXS Profile

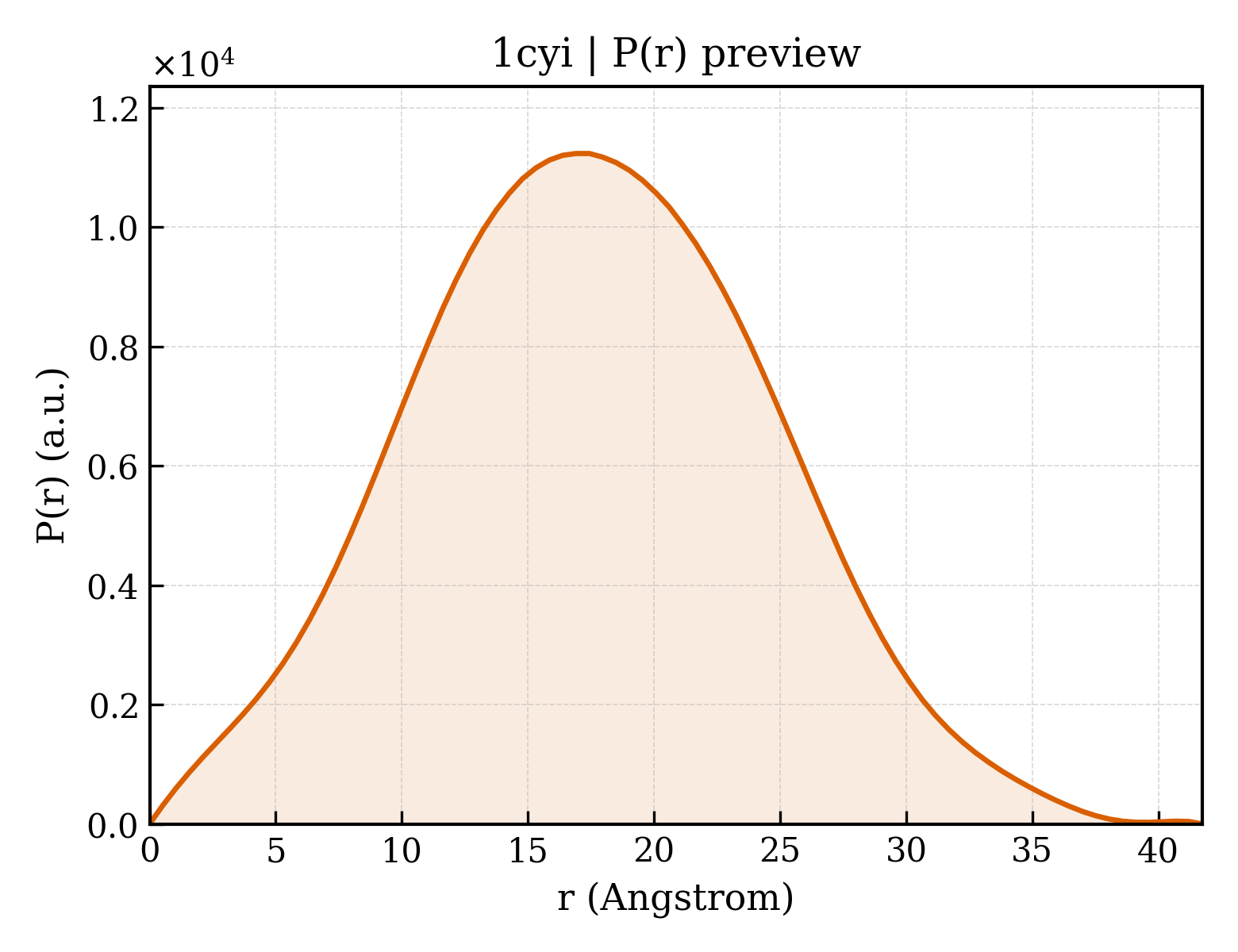

P(r) Distribution
1. Structure Basics
| entry_id | 1cyi |
| deposition_date | 1995-05-09 |
| title | CYTOCHROME C6 |
| keywords | PHOTOSYNTHESIS, CHLAMYDOMONAS, ELECTRON TRANSPORT PROTEIN (CYTOCHROME); ELECTRON TRANSPORT PROTEIN (CYTOCHROME) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.46 Å |
| rg_electron | 11.82 Å |
| i0 | 2588430.00 |
| molecular_weight | 10538.0 kDa |
| excluded_volume | 12734 ų |
| envelope_volume | 13571 ų |
| shell_volume | 9838 ų |
| envelope_diameter | 40.3 Å |
| shell_rg | 17.48 Å |
| envelope_rg | 12.05 Å |
| shape_rg | 11.60 Å |
| total_rg | 13.57 Å |
| total_atoms | 712 |
| n_residues | 89 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.7 Å |
| rg_real | 13.37 Å |
| rg_real_error | 0.18 Å |
| i0_real | 2.5880e+06 |
| i0_real_error | 2.6130e+04 |
| rg_reciprocal | 13.37 Å |
| i0_reciprocal | 2588000.0000 |
| total_estimate | 0.8936 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 40.7 Å |
| skewness | 0.098 |
| kurtosis | -0.338 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 461100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.996 |
