1cyj
CYTOCHROME C6
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cyj |
| deposition_date | 1995-05-09 |
| title | CYTOCHROME C6 |
| keywords | PHOTOSYNTHESIS, CHLAMYDOMONAS, ELECTRON TRANSPORT PROTEIN (CYTOCHROME); ELECTRON TRANSPORT PROTEIN (CYTOCHROME) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.39 Å |
| rg_electron | 11.86 Å |
| i0 | 2718010.00 |
| molecular_weight | 10810.0 kDa |
| excluded_volume | 13064 ų |
| envelope_volume | 13802 ų |
| shell_volume | 9960 ų |
| envelope_diameter | 37.7 Å |
| shell_rg | 17.53 Å |
| envelope_rg | 12.03 Å |
| shape_rg | 11.68 Å |
| total_rg | 13.51 Å |
| total_atoms | 731 |
| n_residues | 90 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

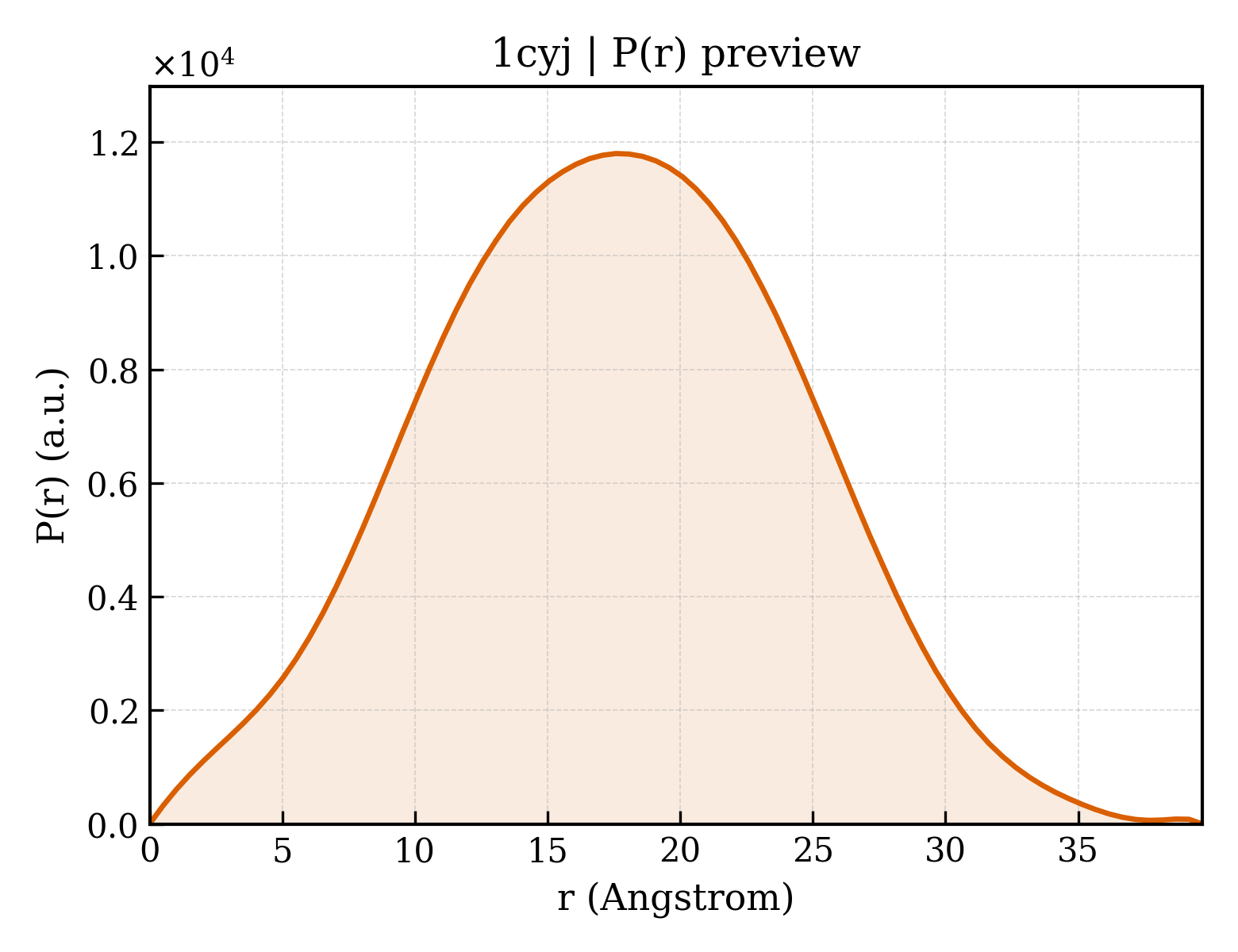

3. P(r) Analysis (GNOM)
| dmax | 39.7 Å |
| rg_real | 13.27 Å |
| rg_real_error | 0.17 Å |
| i0_real | 2.7180e+06 |
| i0_real_error | 2.7600e+04 |
| rg_reciprocal | 13.28 Å |
| i0_reciprocal | 2718000.0000 |
| total_estimate | 0.9029 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 17.6 Å |
| skewness | 0.028 |
| kurtosis | -0.406 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 538600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.993 |
