1d0y

DICTYOSTELIUM MYOSIN S1DC (MOTOR DOMAIN FRAGMENT) COMPLEXED WITH O-NITROPHENYL AMINOETHYLDIPHOSPHATE BERYLLIUM FLUORIDE.

Method: X-RAY DIFFRACTION D_max: 101.9 Å Quality: GOOD

SAXS Profile

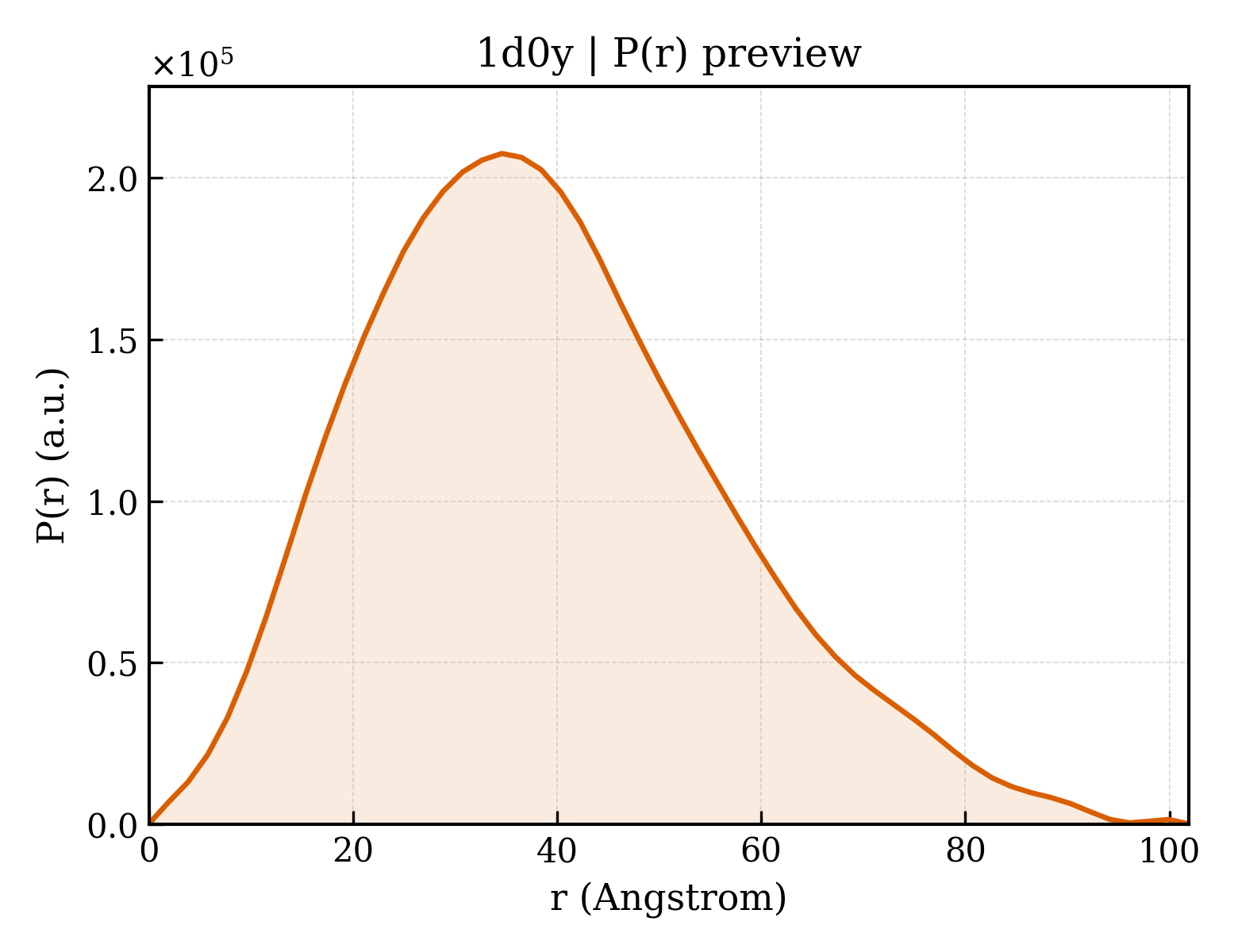

P(r) Distribution

▼

1. Structure Basics

entry_id	1d0y
deposition_date	1999-09-15
title	DICTYOSTELIUM MYOSIN S1DC (MOTOR DOMAIN FRAGMENT) COMPLEXED WITH O-NITROPHENYL AMINOETHYLDIPHOSPHATE BERYLLIUM FLUORIDE.
keywords	MYOSIN, MOTILITY, ACTIN-BINDING, MOTOR DOMAIN, NANOLOGS, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.97 Å
rg_electron	29.34 Å
i0	111073000.00
molecular_weight	83834.0 kDa
excluded_volume	105070 Å³
envelope_volume	130830 Å³
shell_volume	37474 Å³
envelope_diameter	106.7 Å
shell_rg	36.30 Å
envelope_rg	29.64 Å
shape_rg	29.33 Å
total_rg	29.97 Å
total_atoms	5915
n_residues	741
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.9 Å
rg_real	30.03 Å
rg_real_error	0.83 Å
i0_real	1.1110e+08
i0_real_error	1.6870e+06
rg_reciprocal	30.01 Å
i0_reciprocal	111100000.0000
total_estimate	0.8666
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.6 Å
skewness	0.469
kurtosis	-0.105
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	20290000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.777; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.949

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	MYOSIN S1DC MOTOR DOMAIN
formula_weight	86735.1 kDa
mutation	Q760P, R761N
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6623

MNPIHDRTSDYHKYLKVKQGDSDLFKLTVSDKRYIWYNPDPKERDSYECGEIVSETSDSFTFKTVDGQDRQVKKDDANQRNPIKFDGVEDMSELSYLNEPAVFHNLRVRYNQDLIYTYSGLFLVAVNPFKRIPIYTQEMVDIFKGRRRNEVAPHIFAISDVAYRSMLDDRQNQSLLITGESGAGKTENTKKVIQYLASVAGRNQANGSGVLEQQILQANPILEAFGNAKTTRNNNSSRFGKFIEIQFNNAGFISGASIQSYLLEKSRVVFQSETERNYHIFYQLLAGATAEEKKALHLAGPESFNYLNQSGCVDIKGVSDSEEFKITRQAMDIVGFSQEEQMSIFKIIAGILHLGNIKFEKGAGEGAVLKDKTALNAASTVFGVNPSVLEKALMEPRILAGRDLVAQHLNVEKSSSSRDALVKALYGRLFLWLVKKINNVLCQERKAYFIGVLDISGFEIFKVNSFEQLCINYTNEKLQQFFNHHMFKLEQEEYLKEKINWTFIDFGLDSQATIDLIDGRQPPGILALLDEQSVFPNATDNTLITKLHSHFSKKNAKYEEPRFSKTEFGVTHYAGQVMYEIQDWLEKNKDPLQQDLELCFKDSSDNVVTKLFNDPNIASRAKKGANFITVAAQYKEQLASLMATLETTNPHFVRCIIPNNKQLPAKLEDKVVLDQLRCNGVLEGIRITRKGFPNRIIYADFVKRYYLLAPNVPRDAEDSQKATDAVLKHLNIDPEQYRFGITKIFFRAGQLARIEEAREPN

Source

organism	Dictyostelium discoideum
ncbi_taxonomy_id	44689
host_organism	Dictyostelium discoideum

Entity 2 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	O-NITROPHENYL AMINOETHYLDIPHOSPHATE BERYLLIUM TRIFLUORIDE
formula_weight	407.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	708

▶

6. Citations (1)

▶

length_a	103.800 Å
length_b	180.300 Å
length_c	54.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

resolution	2.000 Å
resolution_low	25.000 Å
r_factor	0.1780
r_work	0.1780
r_free	—
