1d1b

DICTYOSTELIUM MYOSIN S1DC (MOTOR DOMAIN FRAGMENT) COMPLEXED WITH O,P-DINITROPHENYL AMINOPROPYLDIPHOSPHATE BERYLLIUM TRIFLUORIDE.

Method: X-RAY DIFFRACTION D_max: 100.9 Å Quality: GOOD

SAXS Profile

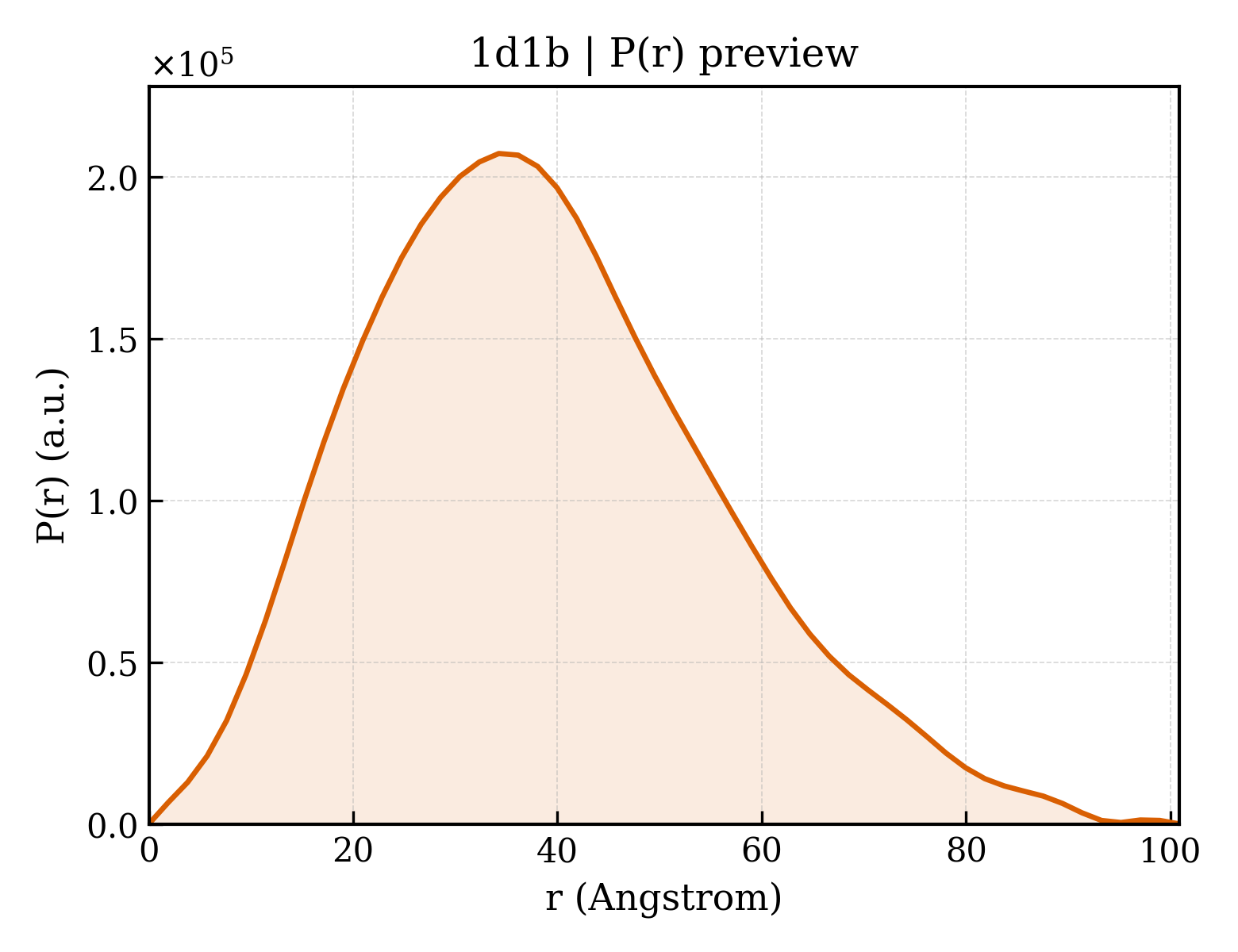

P(r) Distribution

▼

1. Structure Basics

entry_id	1d1b
deposition_date	1999-09-15
title	DICTYOSTELIUM MYOSIN S1DC (MOTOR DOMAIN FRAGMENT) COMPLEXED WITH O,P-DINITROPHENYL AMINOPROPYLDIPHOSPHATE BERYLLIUM TRIFLUORIDE.
keywords	MYOSIN, MOTILITY, ACTIN-BINDING, MOTOR DOMAIN, NANOLOGS, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.76 Å
rg_electron	29.04 Å
i0	109619000.00
molecular_weight	82642.0 kDa
excluded_volume	103360 Å³
envelope_volume	129740 Å³
shell_volume	37336 Å³
envelope_diameter	106.9 Å
shell_rg	36.11 Å
envelope_rg	29.43 Å
shape_rg	29.05 Å
total_rg	29.66 Å
total_atoms	5833
n_residues	736
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	100.9 Å
rg_real	29.81 Å
rg_real_error	0.92 Å
i0_real	1.0960e+08
i0_real_error	1.7820e+06
rg_reciprocal	29.79 Å
i0_reciprocal	109600000.0000
total_estimate	0.8679
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.3 Å
skewness	0.461
kurtosis	-0.107
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0000
highest_alpha	20150000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.963

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	MYOSIN
formula_weight	86735.1 kDa
mutation	Q760P, R761N
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6374

MNPIHDRTSDYHKYLKVKQGDSDLFKLTVSDKRYIWYNPDPKERDSYECGEIVSETSDSFTFKTVDGQDRQVKKDDANQRNPIKFDGVEDMSELSYLNEPAVFHNLRVRYNQDLIYTYSGLFLVAVNPFKRIPIYTQEMVDIFKGRRRNEVAPHIFAISDVAYRSMLDDRQNQSLLITGESGAGKTENTKKVIQYLASVAGRNQANGSGVLEQQILQANPILEAFGNAKTTRNNNSSRFGKFIEIQFNNAGFISGASIQSYLLEKSRVVFQSETERNYHIFYQLLAGATAEEKKALHLAGPESFNYLNQSGCVDIKGVSDSEEFKITRQAMDIVGFSQEEQMSIFKIIAGILHLGNIKFEKGAGEGAVLKDKTALNAASTVFGVNPSVLEKALMEPRILAGRDLVAQHLNVEKSSSSRDALVKALYGRLFLWLVKKINNVLCQERKAYFIGVLDISGFEIFKVNSFEQLCINYTNEKLQQFFNHHMFKLEQEEYLKEKINWTFIDFGLDSQATIDLIDGRQPPGILALLDEQSVFPNATDNTLITKLHSHFSKKNAKYEEPRFSKTEFGVTHYAGQVMYEIQDWLEKNKDPLQQDLELCFKDSSDNVVTKLFNDPNIASRAKKGANFITVAAQYKEQLASLMATLETTNPHFVRCIIPNNKQLPAKLEDKVVLDQLRCNGVLEGIRITRKGFPNRIIYADFVKRYYLLAPNVPRDAEDSQKATDAVLKHLNIDPEQYRFGITKIFFRAGQLARIEEAREPN

Source

organism	Dictyostelium discoideum
ncbi_taxonomy_id	44689
host_organism	Dictyostelium discoideum

Entity 2 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	O,P-DINITROPHENYL AMINOPROPYLDIPHOSPHATE BERYLLIUM TRIFLUORIDE
formula_weight	466.2 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	541

▶

6. Citations (1)

▶

length_a	103.880 Å
length_b	180.460 Å
length_c	54.070 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

resolution	2.000 Å
resolution_low	25.000 Å
r_factor	0.2040
r_work	0.2040
r_free	—

fit	/app/data/saxs_computation/d1/1d1b/1d1b.fit
pddf	/app/data/pr_computation/d1/1d1b/1d1b.pr.out
profile	/app/data/saxs_computation/d1/1d1b/1d1b.dat
