1d1s

WILD-TYPE HUMAN SIGMA (CLASS IV) ALCOHOL DEHYDROGENASE

Method: X-RAY DIFFRACTION D_max: 147.8 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALCOHOL DEHYDROGENASE CLASS IV SIGMA CHAIN

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 2–374 Chain B； UniProt 2–374 Chain C； UniProt 2–374 Chain D； UniProt 2–374	Not recorded	ZN ZINC ION × 19 ACT ACETATE ION × 13 CAC CACODYLATE ION × 5 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 MM CACODYLATE, 100 MM ZINC ACETATE, 7.5 MM NAD+, 18% POLYETHYLENE GLYCOL 6000, 8 MG/ML ENZYME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–374 Chain D； UniProt 2–374	Not recorded	ZN ZINC ION × 10 ACT ACETATE ION × 7 CAC CACODYLATE ION × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 MM CACODYLATE, 100 MM ZINC ACETATE, 7.5 MM NAD+, 18% POLYETHYLENE GLYCOL 6000, 8 MG/ML ENZYME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–374 Chain B； UniProt 2–374	Not recorded	ZN ZINC ION × 11 ACT ACETATE ION × 6 CAC CACODYLATE ION × 5 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 MM CACODYLATE, 100 MM ZINC ACETATE, 7.5 MM NAD+, 18% POLYETHYLENE GLYCOL 6000, 8 MG/ML ENZYME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 2–374 Chain D； UniProt 2–374	Not recorded	ZN ZINC ION × 8 ACT ACETATE ION × 7 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 MM CACODYLATE, 100 MM ZINC ACETATE, 7.5 MM NAD+, 18% POLYETHYLENE GLYCOL 6000, 8 MG/ML ENZYME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.50 Å R-free 0.268

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1D1S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AGN X-RAY STRUCTURE OF HUMAN SIGMA ALCOHOL DEHYDROGENASE Deposited 1996-06-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–374（373 aa） Chain B 2–374（373 aa）	Not recorded	ZN ZINC ION × 8 ACT ACETATE ION × 7 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.305
1AGN X-RAY STRUCTURE OF HUMAN SIGMA ALCOHOL DEHYDROGENASE Deposited 1996-06-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 2–374（373 aa） Chain D 2–374（373 aa）	Not recorded	ZN ZINC ION × 8 ACT ACETATE ION × 3 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.305
1AGN X-RAY STRUCTURE OF HUMAN SIGMA ALCOHOL DEHYDROGENASE Deposited 1996-06-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–374（373 aa） Chain B 2–374（373 aa） Chain C 2–374（373 aa） Chain D 2–374（373 aa）	Not recorded	ZN ZINC ION × 16 ACT ACETATE ION × 10 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.305
1AGN X-RAY STRUCTURE OF HUMAN SIGMA ALCOHOL DEHYDROGENASE Deposited 1996-06-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–374（373 aa） Chain B 2–374（373 aa） Chain C 2–374（373 aa） Chain D 2–374（373 aa）	Not recorded	ZN ZINC ION × 16 ACT ACETATE ION × 10 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.305
1D1T MUTANT OF HUMAN SIGMA ALCOHOL DEHYDROGENASE WITH LEUCINE AT POSITION 141 Deposited 1999-09-21	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–374（373 aa） Chain B 2–374（373 aa） Chain C 2–374（373 aa） Chain D 2–374（373 aa）	Mutation：M141L Mutation：M141L Mutation：M141L Mutation：M141L	ZN ZINC ION × 19 ACT ACETATE ION × 13 CAC CACODYLATE ION × 5 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Cacodylate, pH 6.5, 100 mM Zinc Acetate, 7.5 mM NAD+, 18% PEG 6000, 8 mg/ml enzyme, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.274
1D1T MUTANT OF HUMAN SIGMA ALCOHOL DEHYDROGENASE WITH LEUCINE AT POSITION 141 Deposited 1999-09-21	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–374（373 aa） Chain D 2–374（373 aa）	Mutation：M141L Mutation：M141L	ZN ZINC ION × 10 ACT ACETATE ION × 7 CAC CACODYLATE ION × 4 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Cacodylate, pH 6.5, 100 mM Zinc Acetate, 7.5 mM NAD+, 18% PEG 6000, 8 mg/ml enzyme, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.274
1D1T MUTANT OF HUMAN SIGMA ALCOHOL DEHYDROGENASE WITH LEUCINE AT POSITION 141 Deposited 1999-09-21	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–374（373 aa） Chain B 2–374（373 aa）	Mutation：M141L Mutation：M141L	ZN ZINC ION × 11 ACT ACETATE ION × 6 CAC CACODYLATE ION × 5 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Cacodylate, pH 6.5, 100 mM Zinc Acetate, 7.5 mM NAD+, 18% PEG 6000, 8 mg/ml enzyme, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.274
1D1T MUTANT OF HUMAN SIGMA ALCOHOL DEHYDROGENASE WITH LEUCINE AT POSITION 141 Deposited 1999-09-21	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 2–374（373 aa） Chain D 2–374（373 aa）	Mutation：M141L Mutation：M141L	ZN ZINC ION × 8 ACT ACETATE ION × 7 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；100 mM Cacodylate, pH 6.5, 100 mM Zinc Acetate, 7.5 mM NAD+, 18% PEG 6000, 8 mg/ml enzyme, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.40 Å R-free 0.274

2 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ADH7_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–373； UniProt 2–374 Author chain B； PDBConstruct 2–373； UniProt 2–374 Author chain C； PDBConstruct 2–373； UniProt 2–374 Author chain D； PDBConstruct 2–373； UniProt 2–374

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

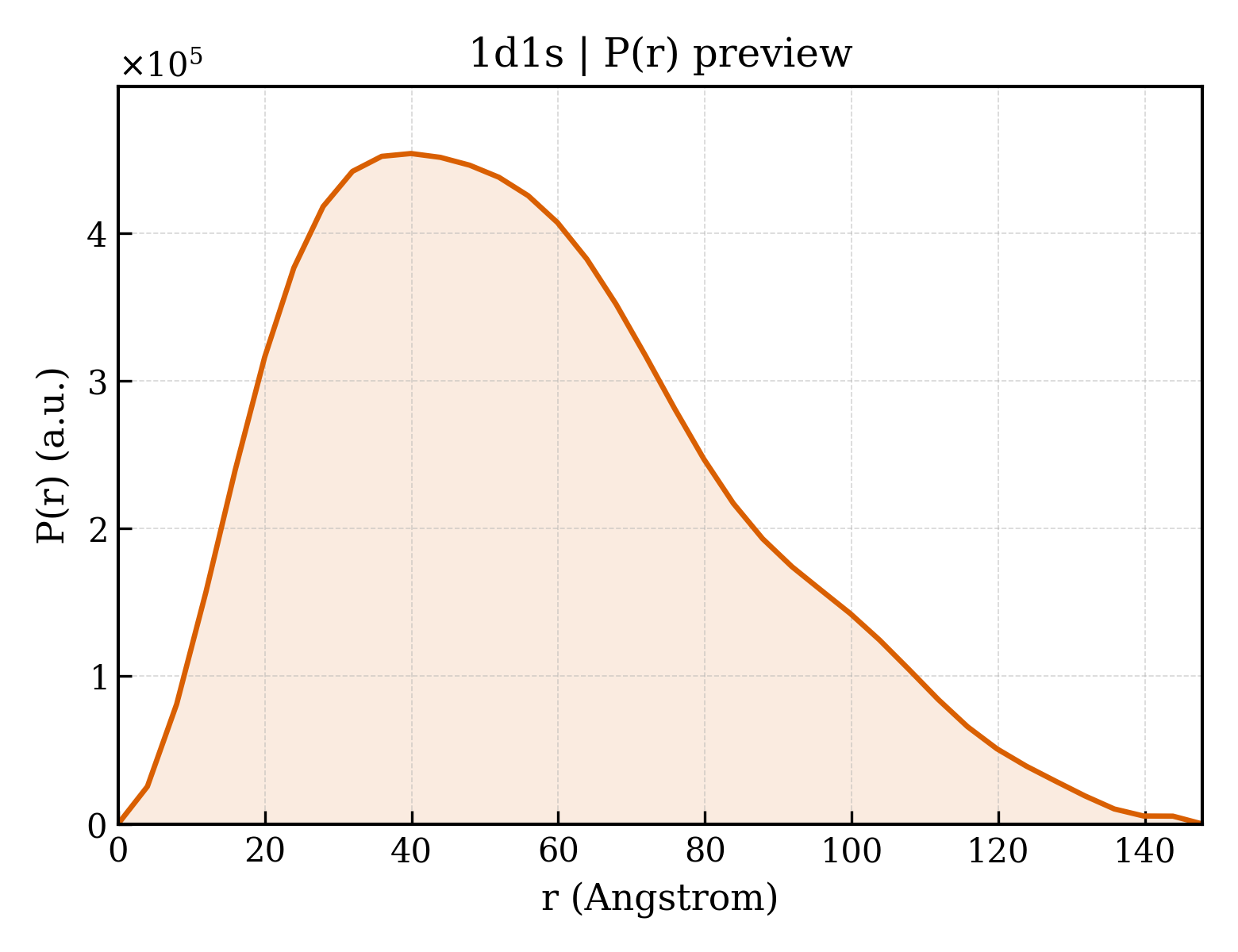

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1d1s
Deposition date deposition_date	1999-09-21
Structure title title	WILD-TYPE HUMAN SIGMA (CLASS IV) ALCOHOL DEHYDROGENASE
Keywords keywords	ROSSMAN OR DINUCLEOTIDE FOLD, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.15 Å
Radius of gyration Rg (electron density) rg_electron	43.82 Å
Forward intensity I(0) i0	408255000.00
Molecular weight molecular_weight	164860.0 kDa
Excluded volume excluded_volume	205980 Å³
Envelope volume envelope_volume	262500 Å³
Hydration-shell volume shell_volume	53010 Å³
Envelope diameter envelope_diameter	159.7 Å
Shell Rg shell_rg	44.70 Å
Envelope Rg envelope_rg	43.76 Å
Shape Rg shape_rg	43.84 Å
Total Rg total_rg	43.78 Å
Total atoms total_atoms	11428
Residues n_residues	1492
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	147.8 Å
Rg (real space) rg_real	43.51 Å
Rg uncertainty (real space) rg_real_error	1.42 Å
I(0) (real space) i0_real	4.0830e+08
I(0) uncertainty (real space) i0_real_error	6.5850e+06
Rg (reciprocal space) rg_reciprocal	43.15 Å
I(0) (reciprocal space) i0_reciprocal	408100000.0000
Solution quality estimate total_estimate	0.6127
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	39.9 Å
Skewness Skewness skewness	0.526
Kurtosis Kurtosis kurtosis	-0.292
Angular range angular_range	— – 0.1850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	67200000.0000
Real-space data points n_real_points	38
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.792; Stabil: 1.000; Sysdev: 0.083; Positv: 1.000; Valcen: 0.831; Smooth: 0.503

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	ALCOHOL DEHYDROGENASE CLASS IV SIGMA CHAIN
Molecular weight formula_weight	39924.4 kDa
EC 编号 ec_number	1.1.1.1
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11836

GTAGKVIKCKAAVLWEQKQPFSIEEIEVAPPKTKEVRIKILATGICRTDDHVIKGTMVSKFPVIVGHEATGIVESIGEGVTTVKPGDKVIPLFLPQCRECNACRNPDGNLCIRSDITGRGVLADGTTRFTCKGKPVHHFMNTSTFTEYTVVDESSVAKIDDAAPPEKVCLIGCGFSTGYGAAVKTGKVKPGSTCVVFGLGGVGLSVIMGCKSAGASRIIGIDLNKDKFEKAMAVGATECISPKDSTKPISEVLSEMTGNNVGYTFEVIGHLETMIDALASCHMNYGTSVVVGVPPSAKMLTYDPMLLFTGRTWKGCVFGGLKSRDDVPKLVTEFLAKKFDLDQLITHVLPFKKISEGFELLNSGQSIRTVLTF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	19

Entity 3 Entity 3 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	13

Entity 4 Entity 4 non-polymer

Description description	CACODYLATE ION
Molecular weight formula_weight	137.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	408

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1d1sa1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1d1sa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1d1sb1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1d1sb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1d1sc1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1d1sc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1d1sd1
Class class	b — All beta proteins
Fold Fold fold	b.35 — GroES-like
Superfamily Superfamily superfamily	b.35.1 — GroES-like
Family Family family	b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1d1sd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1d1sA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1d1sA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1d1sB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1d1sB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1d1sC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1d1sC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1d1sD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	180 — Quinone Oxidoreductase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Medium-chain alcohol dehydrogenases, catalytic domain

Domain ID domain_id	1d1sD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	86.400 Å
Unit-cell length b length_b	90.900 Å
Unit-cell length c length_c	121.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.60 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2200
R_work r_work	0.2170
R_free r_free	0.2680
