SAXSdb — 1d4v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF-RELATED APOPTOSIS INDUCING LIGAND

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	DEATH RECEPTOR 5 × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNF10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–163； UniProt 119–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1d4v
Deposition date deposition_date	1999-10-06
Structure title title	Crystal structure of trail-DR5 complex
Keywords keywords	LIGAND-RECEPTOR COMPLEX, TRIMERIC JELLY-ROLL, TNF-R SUPERFAMILY, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1d4v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

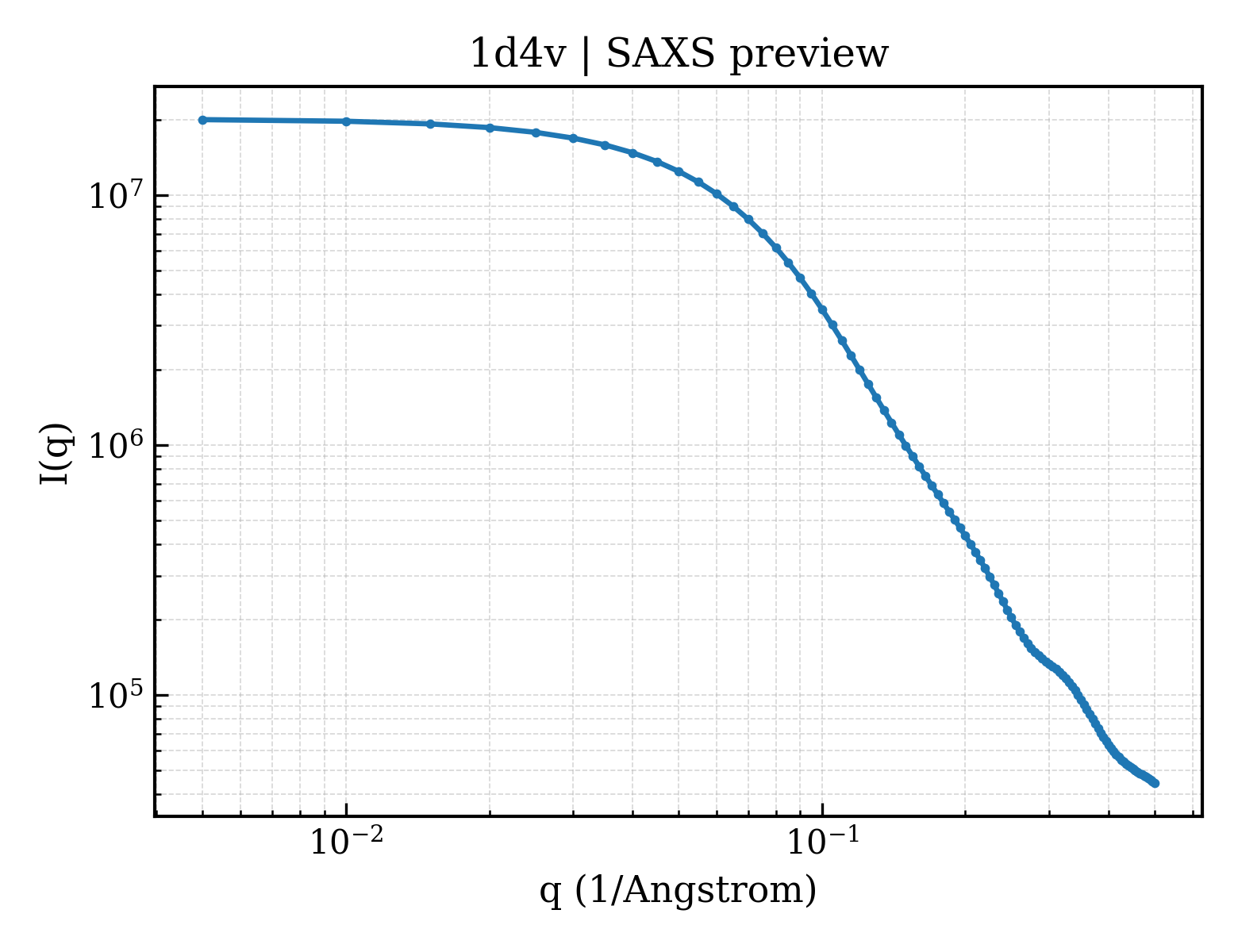

1d4v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1d4v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.76 Å
Rg (electron density)	28.47 Å
Total Rg	29.39 Å
Atom count	6726
Residues	840
Excluded volume	117440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1d4v__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TNF-RELATED APOPTOSIS INDUCING LIGAND
Molecular weight formula_weight	18921.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	2396

PQRVAAHITGTRGRSNTLSSPNSKNEKALGRKINSWESSRSGHSFLSNLHLRNGELVIHEKGFYYIYSQTYFRFQEEIKENTKNDKQMVQYIYKYTSYPDPILLMKSARNSCWSKDAEYGLYSIYQGGIFELKENDRIFVSVTNEHLIDMDHEASFFGAFLVG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DEATH RECEPTOR 5
Molecular weight formula_weight	13143.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

PQQKRSSPSEGLCPPGHHISEDGRDCISCKYGQDYSTHWNDLLFCLRCTRCDSGEVELSPCTTTRNTVCQCEEGTFREEDSPEMCRKCRTGCPRGMVKVGDCTPWSDIECVHKESGD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	154

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1d4va1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d1d4va2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d1d4va3
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.1 — TNF receptor-like

Domain ID domain_id	d1d4vb_
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

CATH v4.4 (4 domains)

Domain ID domain_id	1d4vA01
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	1d4vA02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	1d4vA03
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	50 — Tumor Necrosis Factor Receptor, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Tumor Necrosis Factor Receptor, subunit A, domain 2

Domain ID domain_id	1d4vB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

▶

Unit-cell length a length_a	95.520 Å
Unit-cell length b length_b	95.520 Å
Unit-cell length c length_c	69.810 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2210
R_work r_work	0.2210
R_free r_free	0.2700
