SAXSdb — 1dg6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

APO2L/TNF-RELATED APOPOTIS INDUCING LIGAND (TRAIL)

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 91–281	Fragment：TRIMERIC JELLY-ROLL DOMAIN OF APO2L Mutation：D218A	ZN ZINC ION × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；WELL SOLUTION 32% MPD; DROP 1.2MG/ML APO2L, 20MM TRIS HCL PH 7.5, 1% MPD, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.30 Å R-free 0.197

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DG6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D0G CRYSTAL STRUCTURE OF DEATH RECEPTOR 5 (DR5) BOUND TO APO2L/TRAIL Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 114–281（168 aa） Fragment：RESIDUES 114-281 Chain B 114–281（168 aa） Fragment：RESIDUES 114-281 Chain D 114–281（168 aa） Fragment：RESIDUES 114-281	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；15% Peg8K, 10% ethylene glycol, 0.2M ammonium sulface, 0.1M Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.40 Å R-free 0.267
1D2Q CRYSTAL STRUCTURE OF HUMAN TRAIL Deposited 1999-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 114–281（168 aa） Fragment：EXTRA CELLULAR DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 9；295 K；PEG 550 MME, bicine pH 9.0, cadmium chloride, EVAPORATION, temperature 22K	Resolution 2.80 Å R-free 0.282
1D2Q CRYSTAL STRUCTURE OF HUMAN TRAIL Deposited 1999-09-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 114–281（168 aa） Fragment：EXTRA CELLULAR DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 9；295 K；PEG 550 MME, bicine pH 9.0, cadmium chloride, EVAPORATION, temperature 22K	Resolution 2.80 Å R-free 0.282
1D2Q CRYSTAL STRUCTURE OF HUMAN TRAIL Deposited 1999-09-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 114–281（168 aa） Fragment：EXTRA CELLULAR DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 9；295 K；PEG 550 MME, bicine pH 9.0, cadmium chloride, EVAPORATION, temperature 22K	Resolution 2.80 Å R-free 0.282
1D4V Crystal structure of trail-DR5 complex Deposited 1999-10-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 119–281（163 aa） Fragment：SINGLE SUBUNIT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；25% ETHYLENE GLYCOL, 0.1% N-OCTYL-BETA-GLUCOSIDE, pH 8, VAPOR DIFFUSION, SITTING DROP, temperature 20K	Resolution 2.20 Å R-free 0.270
1DU3 Crystal structure of TRAIL-SDR5 Deposited 2000-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 114–281（168 aa） Chain E 114–281（168 aa） Chain F 114–281（168 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.6；295 K；PEG 1000, Sodium Acetate, Sodium Chloride, pH 4.6, EVAPORATION, temperature 22K	Resolution 2.20 Å R-free 0.291
1DU3 Crystal structure of TRAIL-SDR5 Deposited 2000-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain J 114–281（168 aa） Chain K 114–281（168 aa） Chain L 114–281（168 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.6；295 K；PEG 1000, Sodium Acetate, Sodium Chloride, pH 4.6, EVAPORATION, temperature 22K	Resolution 2.20 Å R-free 0.291
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 114–281（168 aa） Fragment：UNP residues 114-281	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 114–281（168 aa） Fragment：UNP residues 114-281	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 114–281（168 aa） Fragment：UNP residues 114-281	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
5CIR Crystal structure of death receptor 4 (DR4; TNFFRSF10A) bound to TRAIL (TNFSF10) Deposited 2015-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 114–281（168 aa） Fragment：Residues 114-281 Chain B 114–281（168 aa） Fragment：Residues 114-281 Chain D 114–281（168 aa） Fragment：Residues 114-281	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；100 mM MMT (1:2:2 ratio of DL-malic acid, MES, Tris base), pH 5.0, 22.2%(W/V) PEG 2000MME	Resolution 3.00 Å R-free 0.216

6 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNF10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–191； UniProt 91–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dg6
Deposition date deposition_date	1999-11-23
Structure title title	CRYSTAL STRUCTURE OF APO2L/TRAIL
Keywords keywords	CYTOKINE, TNF, TRIMER, ZINC-BINDING SITE, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.15 Å
Radius of gyration Rg (electron density) rg_electron	17.00 Å
Forward intensity I(0) i0	5924500.00
Molecular weight molecular_weight	17515.0 kDa
Excluded volume excluded_volume	21839 Å³
Envelope volume envelope_volume	25932 Å³
Hydration-shell volume shell_volume	13563 Å³
Envelope diameter envelope_diameter	68.2 Å
Shell Rg shell_rg	22.33 Å
Envelope Rg envelope_rg	17.83 Å
Shape Rg shape_rg	16.92 Å
Total Rg total_rg	18.16 Å
Total atoms total_atoms	1234
Residues n_residues	149
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

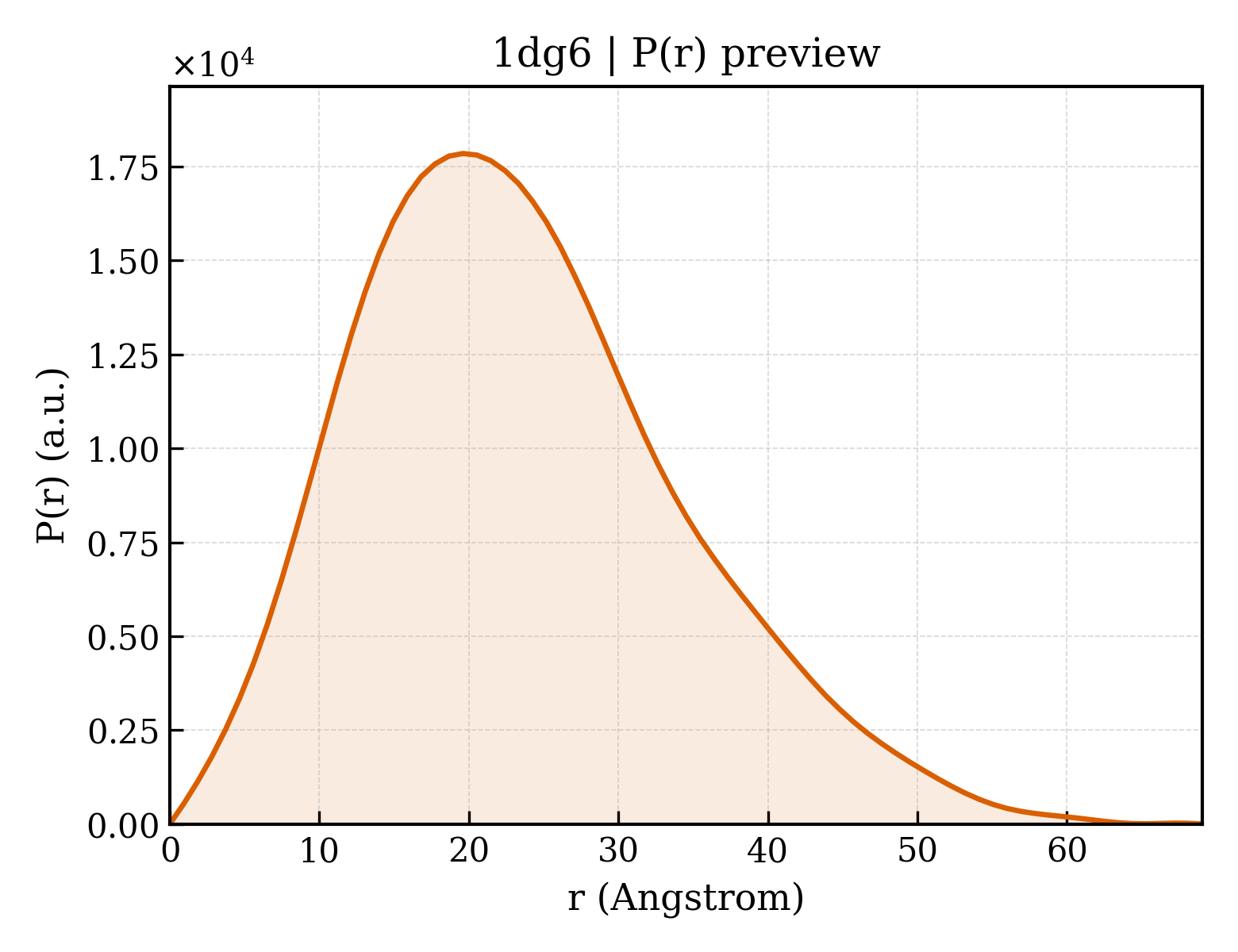

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.1 Å
Rg (real space) rg_real	18.26 Å
Rg uncertainty (real space) rg_real_error	0.65 Å
I(0) (real space) i0_real	5.9250e+06
I(0) uncertainty (real space) i0_real_error	8.1810e+04
Rg (reciprocal space) rg_reciprocal	18.25 Å
I(0) (reciprocal space) i0_reciprocal	5924000.0000
Solution quality estimate total_estimate	0.8019
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.6 Å
Skewness Skewness skewness	0.536
Kurtosis Kurtosis kurtosis	0.014
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1802000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.554; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.760; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	APO2L/TNF-RELATED APOPOTIS INDUCING LIGAND (TRAIL)
Molecular weight formula_weight	22106.8 kDa
Mutation mutation	D218A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1477

MILRTSEETISTVQEKQQNISPLVRERGPQRVAAHITGTRGRSNTLSSPNSKNEKALGRKINSWESSRSGHSFLSNLHLRNGELVIHEKGFYYIYSQTYFRFQEEIKENTKNDKQMVQYIYKYTSYPAPILLMKSARNSCWSKDAEYGLYSIYQGGIFELKENDRIFVSVTNEHLIDMDHEASFFGAFLVG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	226

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1dg6a_
Class class	b — All beta proteins
Fold Fold fold	b.22 — TNF-like
Superfamily Superfamily superfamily	b.22.1 — TNF-like
Family Family family	b.22.1.1 — TNF-like

CATH v4.4 (1 domains)

Domain ID domain_id	1dg6A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	66.435 Å
Unit-cell length b length_b	66.435 Å
Unit-cell length c length_c	197.727 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1410
R_work r_work	0.1410
R_free r_free	0.1970

fit	/app/data/saxs_computation/dg/1dg6/1dg6.fit
pddf	/app/data/pr_computation/dg/1dg6/1dg6.pr.out
profile	/app/data/saxs_computation/dg/1dg6/1dg6.dat
