1dkj
BOBWHITE QUAIL LYSOZYME
SAXS Profile

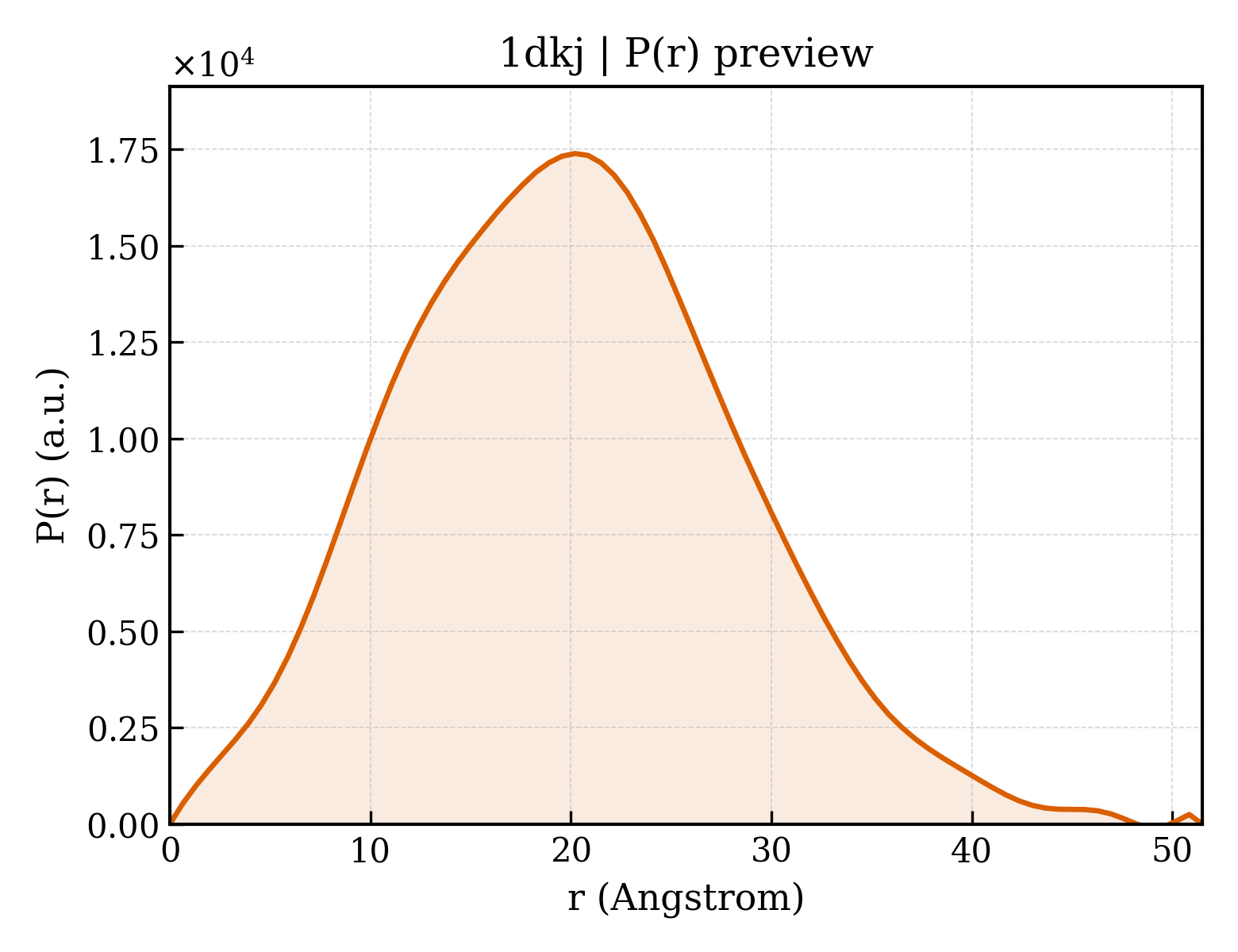

P(r) Distribution
1. Structure Basics
| entry_id | 1dkj |
| deposition_date | 1996-01-10 |
| title | BOBWHITE QUAIL LYSOZYME |
| keywords | HYDROLASE, GLYCOSIDASE, BACTERIOLYTIC ENZYME, HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.37 Å |
| rg_electron | 14.06 Å |
| i0 | 4611100.00 |
| molecular_weight | 14279.0 kDa |
| excluded_volume | 17405 ų |
| envelope_volume | 19468 ų |
| shell_volume | 11921 ų |
| envelope_diameter | 51.5 Å |
| shell_rg | 19.59 Å |
| envelope_rg | 14.43 Å |
| shape_rg | 14.04 Å |
| total_rg | 15.16 Å |
| total_atoms | 998 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.5 Å |
| rg_real | 15.31 Å |
| rg_real_error | 0.37 Å |
| i0_real | 4.6110e+06 |
| i0_real_error | 5.2130e+04 |
| rg_reciprocal | 15.31 Å |
| i0_reciprocal | 4611000.0000 |
| total_estimate | 0.7927 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.2 Å |
| skewness | 0.263 |
| kurtosis | -0.139 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 734500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.769; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000 |
