1dkk
BOBWHITE QUAIL LYSOZYME WITH NITRATE
SAXS Profile

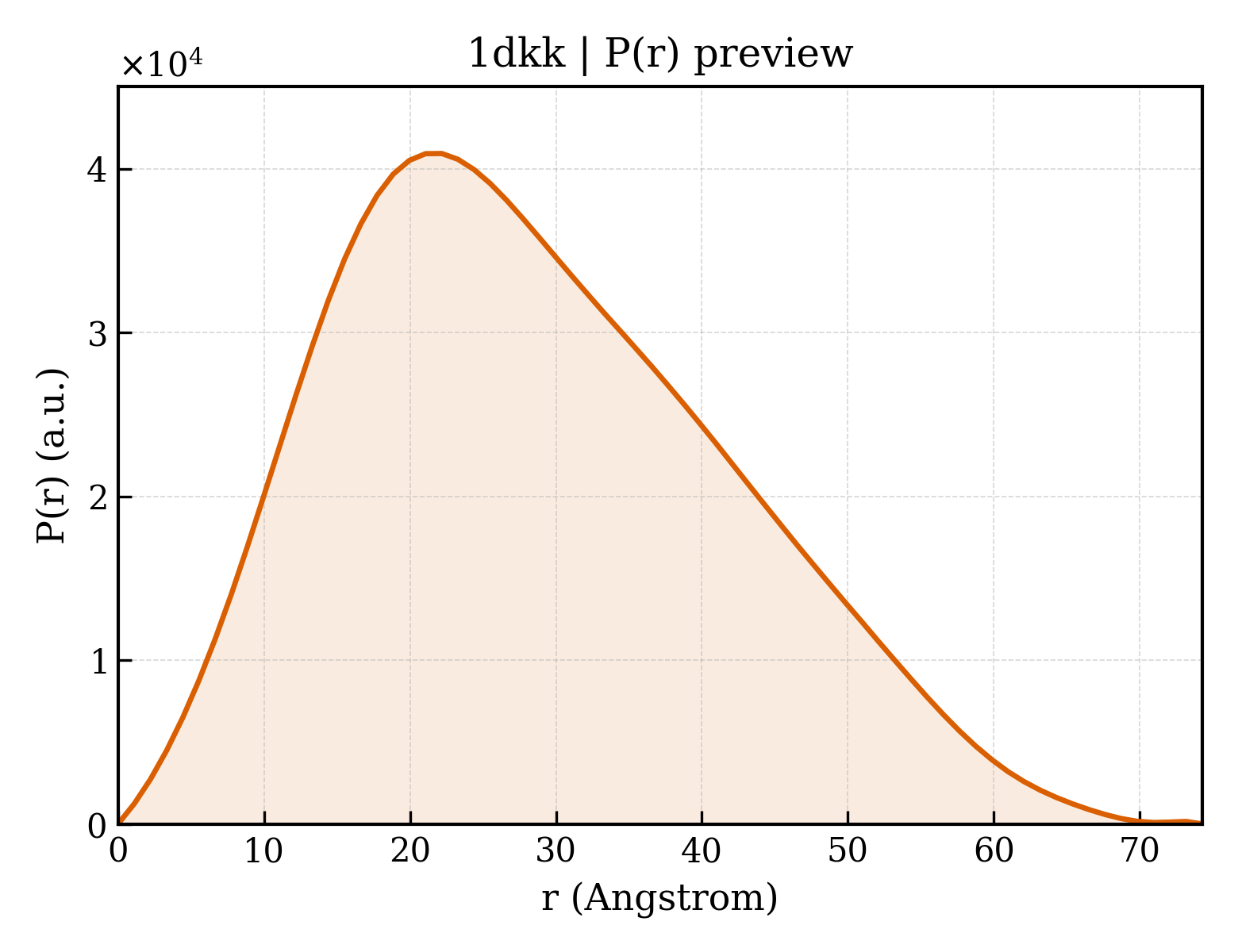

P(r) Distribution
1. Structure Basics
| entry_id | 1dkk |
| deposition_date | 1996-01-10 |
| title | BOBWHITE QUAIL LYSOZYME WITH NITRATE |
| keywords | HYDROLASE, GLYCOSIDASE, BACTERIOLYTIC ENZYME, HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.17 Å |
| rg_electron | 21.49 Å |
| i0 | 17306500.00 |
| molecular_weight | 28806.0 kDa |
| excluded_volume | 34931 ų |
| envelope_volume | 42563 ų |
| shell_volume | 17409 ų |
| envelope_diameter | 73.5 Å |
| shell_rg | 26.83 Å |
| envelope_rg | 21.51 Å |
| shape_rg | 21.48 Å |
| total_rg | 22.20 Å |
| total_atoms | 2012 |
| n_residues | 258 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.3 Å |
| rg_real | 22.27 Å |
| rg_real_error | 0.51 Å |
| i0_real | 1.7310e+07 |
| i0_real_error | 2.4780e+05 |
| rg_reciprocal | 22.25 Å |
| i0_reciprocal | 17310000.0000 |
| total_estimate | 0.8756 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.2 Å |
| skewness | 0.407 |
| kurtosis | -0.440 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2508000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.837; Smooth: 0.989 |
