SAXSdb — 1dpi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA POLYMERASE I KLENOW FRAGMENT

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 324–928	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DPI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D8Y CRYSTAL STRUCTURE OF THE COMPLEX OF DNA POLYMERASE I KLENOW FRAGMENT WITH DNA Deposited 1999-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT	Mutation：D355A, E357A	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；295 K；SODIUM CITRATE, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.08 Å R-free 0.233
1KFD CRYSTAL STRUCTURES OF THE KLENOW FRAGMENT OF DNA POLYMERASE I COMPLEXED WITH DEOXYNUCLEOSIDE TRIPHOSPHATE AND PYROPHOSPHATE Deposited 1993-09-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 324–928（605 aa）	Not recorded	CTP CYTIDINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.90 Å
1KFS DNA POLYMERASE I KLENOW FRAGMENT (E.C.2.7.7.7) MUTANT/DNA COMPLEX Deposited 1997-08-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	MG MAGNESIUM ION × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.10 Å R-free 0.219
1KLN DNA POLYMERASE I KLENOW FRAGMENT (E.C.2.7.7.7) MUTANT/DNA COMPLEX Deposited 1994-05-24	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 324–928（605 aa）	Mutation：D355A	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；290 K；pH 6.80, VAPOR DIFFUSION, temperature 290.00K	Resolution 3.20 Å
1KRP DNA polymerase I Klenow fragment (E.C.2.7.7.7) mutant/DNA complex Deposited 1997-08-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.20 Å R-free 0.255
1KSP DNA polymerase I Klenow fragment (E.C.2.7.7.7) mutant/DNA complex Deposited 1997-08-19	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.30 Å R-free 0.241
1QSL KLENOW FRAGMENT COMPLEXED WITH SINGLE-STRANDED SUBSTRATE AND EUROPIUM (III) ION Deposited 1999-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT	Mutation：V324M	EU EUROPIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；290 K；1.5 M SODIUM CITRATE AT 290 K, pH 5.60, VAPOR DIFFUSION, HANGING DROP	Resolution 2.20 Å R-free 0.255
2KFN KLENOW FRAGMENT WITH BRIDGING-SULFUR SUBSTRATE AND MANGANESE Deposited 1998-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 325–928（604 aa） Fragment：LARGE FRAGMENT, KLENOW FRAGMENT	Mutation：V324M	MN MANGANESE (II) ION × 1 ZN ZINC ION × 3 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.03 Å R-free 0.250
2KFZ KLENOW FRAGMENT WITH BRIDGING-SULFUR SUBSTRATE AND ZINC ONLY Deposited 1998-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 325–928（604 aa） Fragment：LARGE FRAGMENT, KLENOW FRAGMENT	Mutation：V324M	ZN ZINC ION × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.03 Å R-free 0.255
2KZM KLENOW FRAGMENT WITH NORMAL SUBSTRATE AND ZINC AND MANGANESE Deposited 1998-07-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT, LARGE FRAGMENT	Not recorded	MN MANGANESE (II) ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1.4 M SODIUM CITRATE PH 5.8, pH 5.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.60 Å R-free 0.243
2KZZ KLENOW FRAGMENT WITH NORMAL SUBSTRATE AND ZINC ONLY Deposited 1998-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT, LARGE FRAGMENT	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1.4 M SODIUM CITRATE PH 5.8, pH 5.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.25 Å R-free 0.251
8OO6 Pol I bound to extended and displaced DNA section - closed conformation Deposited 2023-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 328–928（601 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8OOY Pol I bound to extended and displaced DNA section - open conformation Deposited 2023-04-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 328–928（601 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPO1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–605； UniProt 324–928

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dpi
Deposition date deposition_date	1987-08-11
Structure title title	STRUCTURE OF LARGE FRAGMENT OF ESCHERICHIA COLI DNA POLYMERASE I COMPLEXED WITH D/TMP
Keywords keywords	NUCLEOTIDYLTRANSFERASE; NUCLEOTIDYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.51 Å
Radius of gyration Rg (electron density) rg_electron	26.16 Å
Forward intensity I(0) i0	59847300.00
Molecular weight molecular_weight	61609.0 kDa
Excluded volume excluded_volume	75696 Å³
Envelope volume envelope_volume	59786 Å³
Hydration-shell volume shell_volume	21423 Å³
Envelope diameter envelope_diameter	86.5 Å
Shell Rg shell_rg	30.02 Å
Envelope Rg envelope_rg	24.45 Å
Shape Rg shape_rg	26.14 Å
Total Rg total_rg	26.47 Å
Total atoms total_atoms	1
Residues n_residues	—
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.2 Å
Rg (real space) rg_real	26.46 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	5.9850e+07
I(0) uncertainty (real space) i0_real_error	7.8800e+05
Rg (reciprocal space) rg_reciprocal	26.48 Å
I(0) (reciprocal space) i0_reciprocal	59850000.0000
Solution quality estimate total_estimate	0.9091
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	79.5 Å
Skewness Skewness skewness	0.275
Kurtosis Kurtosis kurtosis	-0.349
Angular range angular_range	— – 0.3000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8708000.0000
Real-space data points n_real_points	61
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.948; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.970

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	DNA POLYMERASE I KLENOW FRAGMENT
Molecular weight formula_weight	68161.7 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	547

VISYDNYVTILDEETLKAWIAKLEKAPVFAFDTETDSLDNISANLVGLSFAIEPGVAAYIPVAHDYLDAPDQISRERALELLKPLLEDEKALKVGQNLKYDRGILANYGIELRGIAFDTMLESYILNSVAGRHDMDSLAERWLKHKTITFEEIAGKGKNQLTFNQIALEEAGRYAAEDADVTLQLHLKMWPDLQKHKGPLNVFENIEMPLVPVLSRIERNGVKIDPKVLHNHSEELTLRLAELEKKAHEIAGEEFNLSSTKQLQTILFEKQGIKPLKKTPGGAPSTSEEVLEELALDYPLPKVILEYRGLAKLKSTYTDKLPLMINPKTGRVHTSYHQAVTATGRLSSTDPNLQNIPVRNEEGRRIRQAFIAPEDYVIVSADYSQIELRIMAHLSRDKGLLTAFAEGKDIHRATAAEVFGLPLETVTSEQRRSAKAINFGLIYGMSAFGLARQLNIPRKEAQKYMDLYFERYPGVLEYMERTRAQAKEQGYVETLDGRRLYLPDIKSSNGARRAAAERAAINAPMQGTAADIIKRAMIAVDAWLQAEQPRVRMIMQVHDELVFEVHKDDVDAVAKQIHQLMENCTRLDVPLLVEVGSGENWDQAH

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1dpia1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.5 — DnaQ-like 3'-5' exonuclease

Domain ID domain_id	d1dpia2
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.1 — DNA polymerase I

▶

8. Citations (5)

▶

Unit-cell length a length_a	102.900 Å
Unit-cell length b length_b	102.900 Å
Unit-cell length c length_c	85.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 43
Space-group number int_tables_number	78
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.2000
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/dp/1dpi/1dpi.fit
pddf	/app/data/pr_computation/dp/1dpi/1dpi.pr.out
profile	/app/data/saxs_computation/dp/1dpi/1dpi.dat

STRUCTURE OF LARGE FRAGMENT OF ESCHERICHIA COLI DNA POLYMERASE I COMPLEXED WITH D/TMP

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA POLYMERASE I KLENOW FRAGMENT

State in the Current Structure

Other States of the Same Protein in the Database

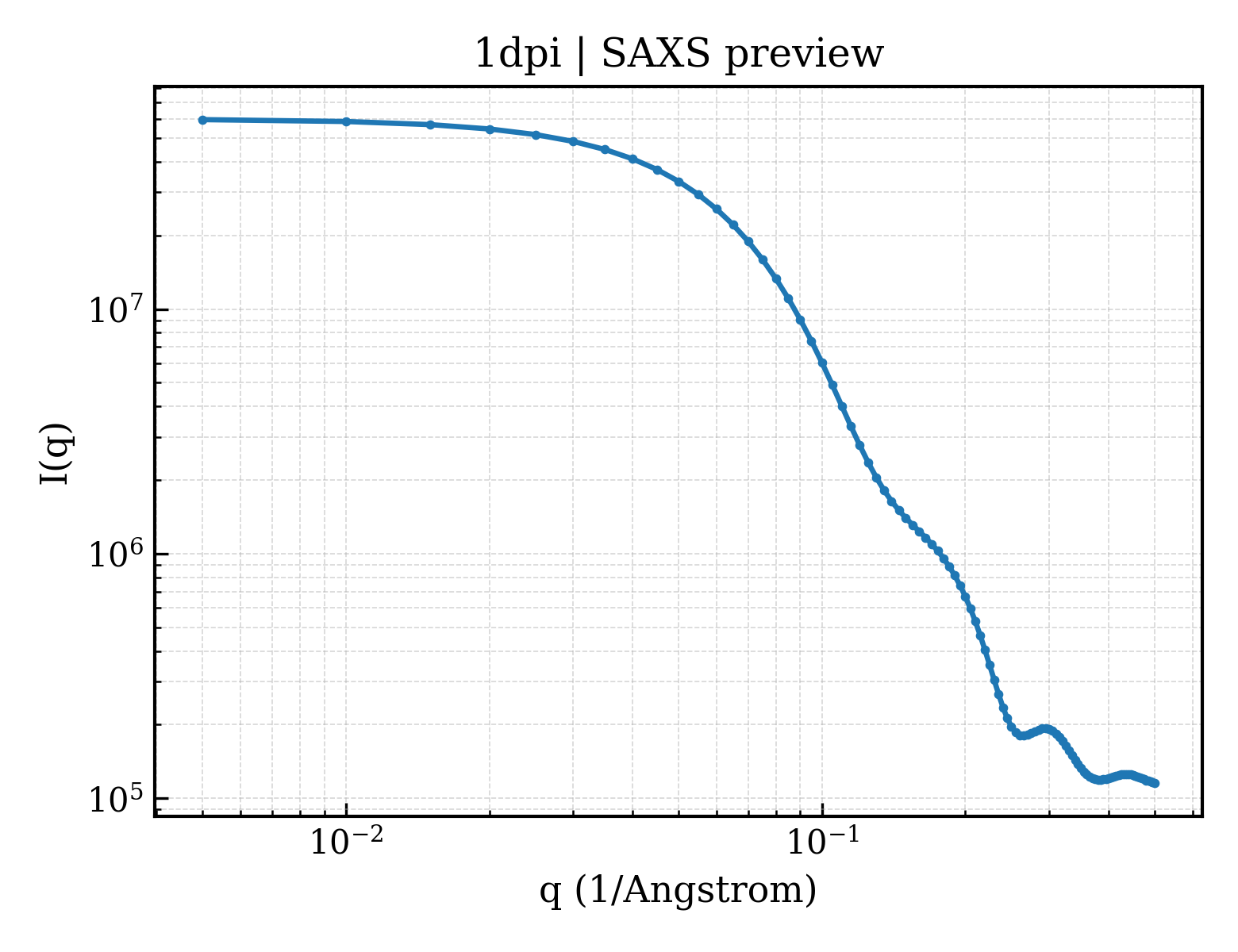

SAXS scattering curve SAXS Profile

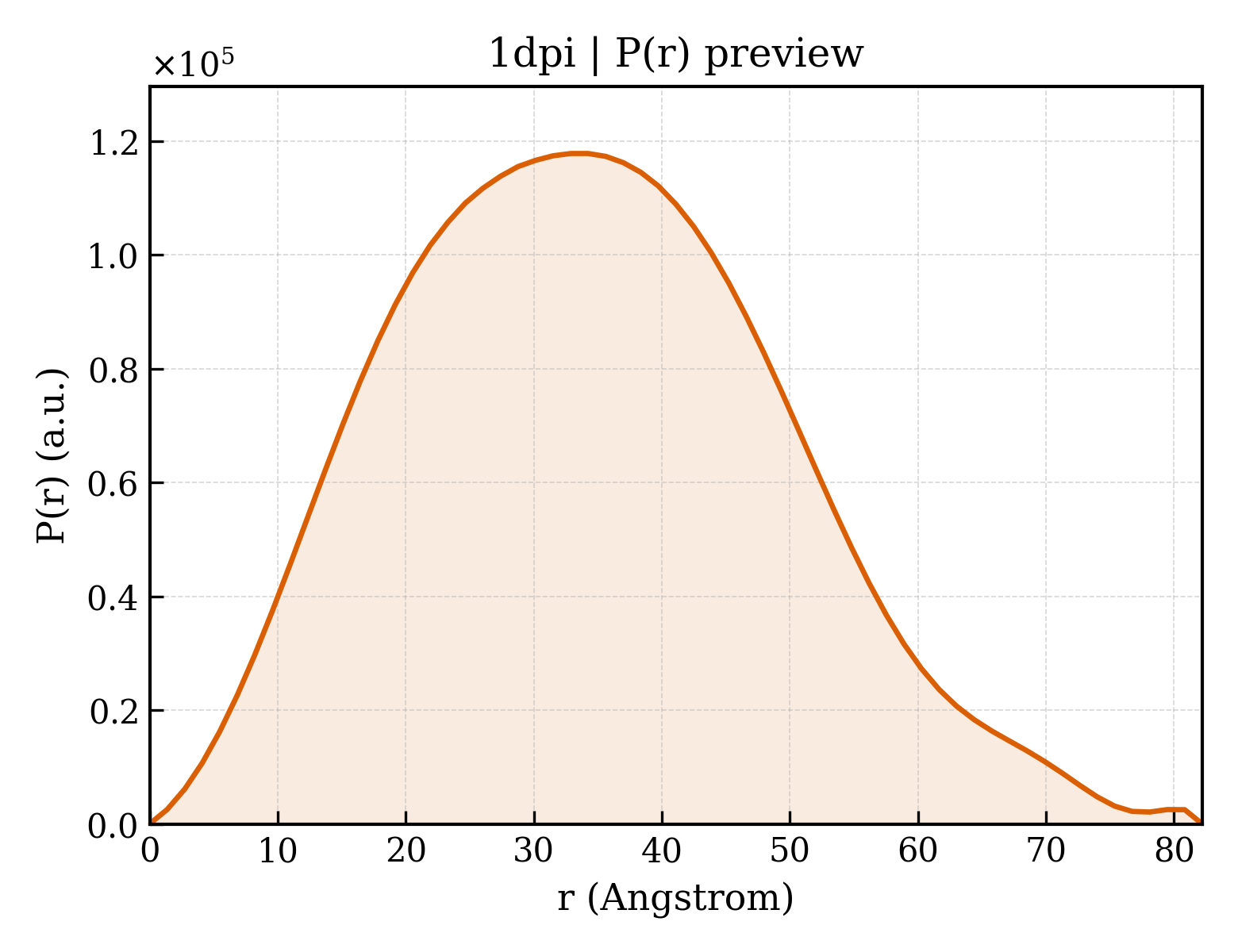

P(r) Distance Distribution P(r) Distribution
