SAXSdb — 8oo6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase I

;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 3 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 328–928	Not recorded	Template DNA × 1 Extending Primer × 1 Displaced primer × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8OO6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D8Y CRYSTAL STRUCTURE OF THE COMPLEX OF DNA POLYMERASE I KLENOW FRAGMENT WITH DNA Deposited 1999-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT	Mutation：D355A, E357A	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；295 K；SODIUM CITRATE, pH 6.4, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.08 Å R-free 0.233
1DPI STRUCTURE OF LARGE FRAGMENT OF ESCHERICHIA COLI DNA POLYMERASE I COMPLEXED WITH D/TMP Deposited 1987-08-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 324–928（605 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1KFD CRYSTAL STRUCTURES OF THE KLENOW FRAGMENT OF DNA POLYMERASE I COMPLEXED WITH DEOXYNUCLEOSIDE TRIPHOSPHATE AND PYROPHOSPHATE Deposited 1993-09-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 324–928（605 aa）	Not recorded	CTP CYTIDINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.90 Å
1KFS DNA POLYMERASE I KLENOW FRAGMENT (E.C.2.7.7.7) MUTANT/DNA COMPLEX Deposited 1997-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	MG MAGNESIUM ION × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.10 Å R-free 0.219
1KLN DNA POLYMERASE I KLENOW FRAGMENT (E.C.2.7.7.7) MUTANT/DNA COMPLEX Deposited 1994-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 324–928（605 aa）	Mutation：D355A	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.8；290 K；pH 6.80, VAPOR DIFFUSION, temperature 290.00K	Resolution 3.20 Å
1KRP DNA polymerase I Klenow fragment (E.C.2.7.7.7) mutant/DNA complex Deposited 1997-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.20 Å R-free 0.255
1KSP DNA polymerase I Klenow fragment (E.C.2.7.7.7) mutant/DNA complex Deposited 1997-08-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa）	Mutation：V324M	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.30 Å R-free 0.241
1QSL KLENOW FRAGMENT COMPLEXED WITH SINGLE-STRANDED SUBSTRATE AND EUROPIUM (III) ION Deposited 1999-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT	Mutation：V324M	EU EUROPIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；290 K；1.5 M SODIUM CITRATE AT 290 K, pH 5.60, VAPOR DIFFUSION, HANGING DROP	Resolution 2.20 Å R-free 0.255
2KFN KLENOW FRAGMENT WITH BRIDGING-SULFUR SUBSTRATE AND MANGANESE Deposited 1998-07-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 325–928（604 aa） Fragment：LARGE FRAGMENT, KLENOW FRAGMENT	Mutation：V324M	MN MANGANESE (II) ION × 1 ZN ZINC ION × 3 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.03 Å R-free 0.250
2KFZ KLENOW FRAGMENT WITH BRIDGING-SULFUR SUBSTRATE AND ZINC ONLY Deposited 1998-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 325–928（604 aa） Fragment：LARGE FRAGMENT, KLENOW FRAGMENT	Mutation：V324M	ZN ZINC ION × 4 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；1.4 M NA CITRATE PH 5.8	Resolution 2.03 Å R-free 0.255
2KZM KLENOW FRAGMENT WITH NORMAL SUBSTRATE AND ZINC AND MANGANESE Deposited 1998-07-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT, LARGE FRAGMENT	Not recorded	MN MANGANESE (II) ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1.4 M SODIUM CITRATE PH 5.8, pH 5.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.60 Å R-free 0.243
2KZZ KLENOW FRAGMENT WITH NORMAL SUBSTRATE AND ZINC ONLY Deposited 1998-07-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 324–928（605 aa） Fragment：KLENOW FRAGMENT, LARGE FRAGMENT	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；1.4 M SODIUM CITRATE PH 5.8, pH 5.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.25 Å R-free 0.251
8OOY Pol I bound to extended and displaced DNA section - open conformation Deposited 2023-04-06	Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 328–928（601 aa）	Not recorded	MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPO1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–604； UniProt 328–928

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8oo6
Deposition date deposition_date	2023-04-04
Structure title title	Pol I bound to extended and displaced DNA section - closed conformation
Keywords keywords	DNA Polymerase I, Okazaki fragment maturation, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.72 Å
Radius of gyration Rg (electron density) rg_electron	28.86 Å
Forward intensity I(0) i0	145825000.00
Molecular weight molecular_weight	84633.0 kDa
Excluded volume excluded_volume	101320 Å³
Envelope volume envelope_volume	137720 Å³
Hydration-shell volume shell_volume	39369 Å³
Envelope diameter envelope_diameter	96.4 Å
Shell Rg shell_rg	36.54 Å
Envelope Rg envelope_rg	28.58 Å
Shape Rg shape_rg	28.84 Å
Total Rg total_rg	29.57 Å
Total atoms total_atoms	5890
Residues n_residues	658
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

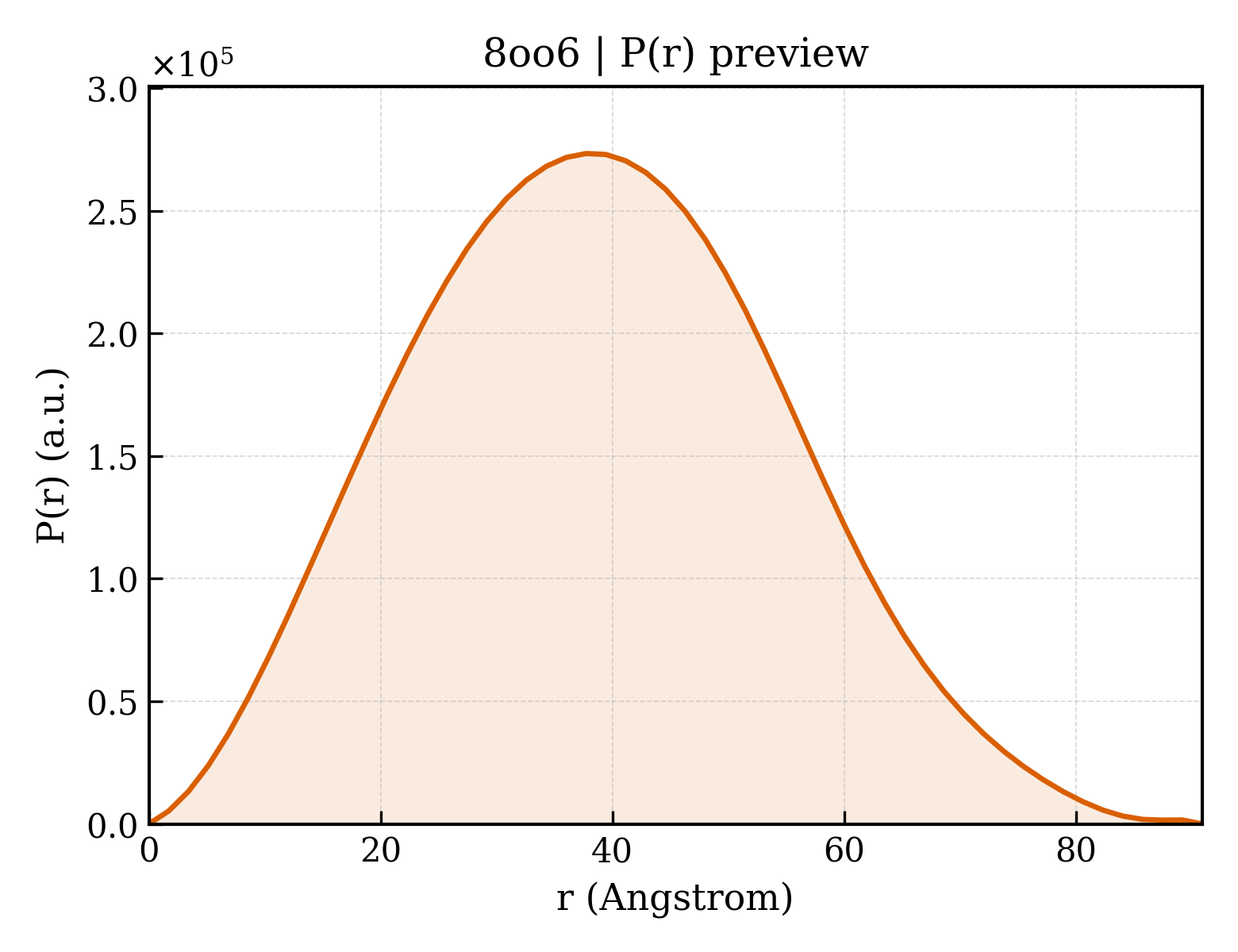

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	90.9 Å
Rg (real space) rg_real	29.57 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	1.4580e+08
I(0) uncertainty (real space) i0_real_error	2.0740e+06
Rg (reciprocal space) rg_reciprocal	29.63 Å
I(0) (reciprocal space) i0_reciprocal	145800000.0000
Solution quality estimate total_estimate	0.9023
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.7 Å
Skewness Skewness skewness	0.163
Kurtosis Kurtosis kurtosis	-0.434
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14330000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.906

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA polymerase I
Molecular weight formula_weight	67991.5 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5890

GPHDNYVTILDEETLKAWIAKLEKAPVFAFDTETDSLDNISANLVGLSFAIEPGVAAYIPVAHDYLDAPDQISRERALELLKPLLEDEKALKVGQNLKYDRGILANYGIELRGIAFDTMLESYILNSVAGRHDMDSLAERWLKHKTITFEEIAGKGKNQLTFNQIALEEAGRYAAEDADVTLQLHLKMWPDLQKHKGPLNVFENIEMPLVPVLSRIERNGVKIDPKVLHNHSEELTLRLAELEKKAHEIAGEEFNLSSTKQLQTILFEKQGIKPLKKTPGGAPSTSEEVLEELALDYPLPKVILEYRGLAKLKSTYTDKLPLMINPKTGRVHTSYHQAVTATGRLSSTDPNLQNIPVRNEEGRRIRQAFIAPEDYVIVSADYSQIELRIMAHLSRDKGLLTAFAEGKDIHRATAAEVFGLPLETVTSEQRRSAKAINFGLIYGMSAFGLARQLNIPRKEAQKYMDLYFERYPGVLEYMERTRAQAKEQGYVETLDGRRLYLPDIKSSNGARRAAAERAAINAPMQGTAADIIKRAMIAVDAWLQAEQPRVRMIMQVHDELVFEVHKDDVDAVAKQIHQLMENCTRLDVPLLVEVGSGENWDQAH

来源 Source

来源生物 organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;
NCBI Class编号 ncbi_taxonomy_id	866768
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Template DNA
Molecular weight formula_weight	8311.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

CAACGTCGTGACTGGGAAAACCCTGGC

Entity 3 Entity 3 polymer

Description description	Extending Primer
Molecular weight formula_weight	5483.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

GCCAGGGTTTTCCCAGTC

Entity 4 Entity 4 polymer

Description description	Displaced primer
Molecular weight formula_weight	2755.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

ACGACGTTG

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	65904

fit	/app/data/saxs_computation/oo/8oo6/8oo6.fit
pddf	/app/data/pr_computation/oo/8oo6/8oo6.pr.out
profile	/app/data/saxs_computation/oo/8oo6/8oo6.dat
