1dr9
CRYSTAL STRUCTURE OF A SOLUBLE FORM OF B7-1 (CD80)
SAXS Profile

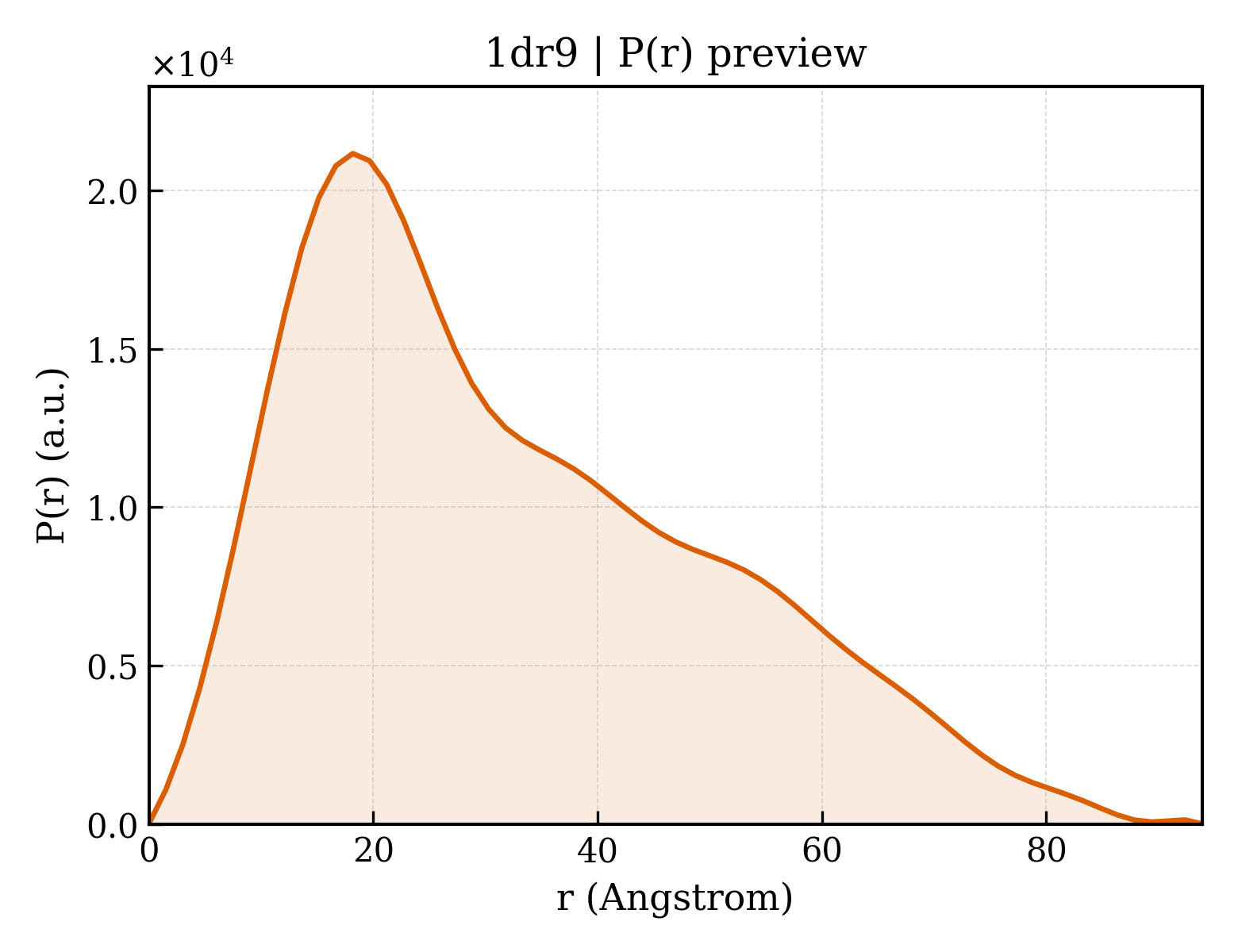

P(r) Distribution
1. Structure Basics
| entry_id | 1dr9 |
| deposition_date | 2000-01-06 |
| title | CRYSTAL STRUCTURE OF A SOLUBLE FORM OF B7-1 (CD80) |
| keywords | IG SUPERFAMILY, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.74 Å |
| rg_electron | 25.69 Å |
| i0 | 9699330.00 |
| molecular_weight | 23428.0 kDa |
| excluded_volume | 29308 ų |
| envelope_volume | 36615 ų |
| shell_volume | 14157 ų |
| envelope_diameter | 96.9 Å |
| shell_rg | 28.20 Å |
| envelope_rg | 26.06 Å |
| shape_rg | 25.67 Å |
| total_rg | 26.06 Å |
| total_atoms | 1645 |
| n_residues | 200 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 93.9 Å |
| rg_real | 26.26 Å |
| rg_real_error | 1.23 Å |
| i0_real | 9.6990e+06 |
| i0_real_error | 1.6530e+05 |
| rg_reciprocal | 26.10 Å |
| i0_reciprocal | 9698000.0000 |
| total_estimate | 0.6747 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 18.2 Å |
| skewness | 0.646 |
| kurtosis | -0.399 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2574000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.239; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.080; Smooth: 0.972 |
