SAXSdb — 1du1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SKELETAL DIHYDROPYRIDINE RECEPTOR

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 671–690	Fragment：II-III LOOP REGION, FRAGMENT THR671-LEU690 A1	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5；278 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition：4 mM peptide, no buffer \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DU1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1T3L Structural Analysis of the Voltage-Dependent Calcium Channel Beta Subunit Functional Core in Complex with Alpha1 Interaction Domain Deposited 2004-04-27	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 357–374（18 aa） Fragment：AID	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；PEG 20K, Bicine, sodium chloride, beta-mercaptoethanol, pH 9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.282
3JBR Cryo-EM structure of the rabbit voltage-gated calcium channel Cav1.1 complex at 4.2 angstrom Deposited 2015-09-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1395（1395 aa） Chain A 1521–1873（353 aa）	Not recorded	CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15 BMA beta-D-mannopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer 20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin；pH 7.4；20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin cryo-EM vitrification conditions Blot for 2 seconds before plunging；Cryogen ETHANE	Resolution 4.20 Å
5GJV Structure of the mammalian voltage-gated calcium channel Cav1.1 complex at near atomic resolution Deposited 2016-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1873（1873 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14 CA CALCIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors. cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen	Resolution 3.60 Å
5GJW Structure of the mammalian voltage-gated calcium channel Cav1.1 complex for ClassII map Deposited 2016-07-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1873（1873 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors. cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen	Resolution 3.90 Å
6BYO Residue assignment correction to the voltage gated calcium Cav1.1 rabbit alpha 1 subunit PDB entries 3JBR & 5GJV Deposited 2017-12-21	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 32–1388（1357 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.60 Å
6JP5 Rabbit Cav1.1-Nifedipine Complex Deposited 2019-03-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1873（1873 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 C5U dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETA ETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
6JP8 Rabbit Cav1.1-Bay K8644 Complex Deposited 2019-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1873（1873 aa）	Not recorded	C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 2 ETA ETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
6JPA Rabbit Cav1.1-Verapamil Complex Deposited 2019-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1506（1506 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 4YH (2S)-2-(3,4-dimethoxyphenyl)-5-{[2-(3,4-dimethoxyphenyl)ethyl](methyl)amino}-2-(propan-2-yl)pentanenitrile × 2 ETA ETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
6JPB Rabbit Cav1.1-Diltiazem Complex Deposited 2019-03-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–1873（1873 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C9F Diltiazem × 1 ETA ETHANOLAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7JPK Rabbit Cav1.1 in the presence of 100 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.0 Angstrom resolution Deposited 2020-08-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 3.00 Å
7JPL Rabbit Cav1.1 in the presence of 10 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 3.40 Å
7JPV Rabbit Cav1.1 in the presence of 1 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 3.40 Å
7JPW Rabbit Cav1.1 in the presence of 100 micromolar (R)-(+)-Bay K8644 in nanodiscs at 3.2 Angstrom resolution Deposited 2020-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 VFY methyl (4R)-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 3.20 Å
7JPX Rabbit Cav1.1 in the presence of 100 micromolar amlodipine in nanodiscs at 2.9 Angstrom resolution Deposited 2020-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 6UB amlodipine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging	Resolution 2.90 Å
7RXQ Crystal structure of junctophilin-2 in complex with a CaV1.1 peptide Deposited 2021-08-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1594–1609（16 aa） Fragment：EERIFRRTGGLFGQVD correspond to UNP residues 1594-1609	Not recorded	EOH ETHANOL × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；PEG3350, potassium sulphate	Resolution 2.03 Å R-free 0.252
8E56 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone at 2.8 Angstrom resolution Deposited 2022-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8E57 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 100 microM MNI-1 at 2.8 Angstrom resolution Deposited 2022-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8E58 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 1 mM MNI-1 at 3.0 Angstrom resolution Deposited 2022-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–1873（1873 aa）	Not recorded	CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

18 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAC1S_RABIT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–20； UniProt 671–690

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1du1
Deposition date deposition_date	2000-01-13
Structure title title	PEPTIDE FRAGMENT THR671-LEU690 OF THE RABBIT SKELETAL DIHYDROPYRIDINE RECEPTOR
Keywords keywords	DIHYDROPYRIDINE RECEPTOR, RYANODINE RECEPTOR, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	10.80 Å
Radius of gyration Rg (electron density) rg_electron	9.84 Å
Forward intensity I(0) i0	198147.00
Molecular weight molecular_weight	2338.0 kDa
Excluded volume excluded_volume	2867 Å³
Envelope volume envelope_volume	3623 Å³
Hydration-shell volume shell_volume	3866 Å³
Envelope diameter envelope_diameter	35.3 Å
Shell Rg shell_rg	13.38 Å
Envelope Rg envelope_rg	10.10 Å
Shape Rg shape_rg	9.76 Å
Total Rg total_rg	11.26 Å
Total atoms total_atoms	343
Residues n_residues	20
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	38.9 Å
Rg (real space) rg_real	10.90 Å
Rg uncertainty (real space) rg_real_error	0.42 Å
I(0) (real space) i0_real	1.9810e+05
I(0) uncertainty (real space) i0_real_error	2.3860e+03
Rg (reciprocal space) rg_reciprocal	10.90 Å
I(0) (reciprocal space) i0_reciprocal	198100.0000
Solution quality estimate total_estimate	0.8361
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	10.3 Å
Skewness Skewness skewness	0.432
Kurtosis Kurtosis kurtosis	-0.374
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16790.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.788; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.510; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1du1a_
Class class	j — Peptides
Fold Fold fold	j.68 — Fragments of the L-type calcium channel alpha subunit Cav.1 (dihydropyridine receptor)
Superfamily Superfamily superfamily	j.68.1 — Fragments of the L-type calcium channel alpha subunit Cav.1 (dihydropyridine receptor)
Family Family family	j.68.1.1 — Fragments of the L-type calcium channel alpha subunit Cav.1 (dihydropyridine receptor)

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	SKELETAL DIHYDROPYRIDINE RECEPTOR
Molecular weight formula_weight	2339.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	343

fit	/app/data/saxs_computation/du/1du1/1du1.fit
pddf	/app/data/pr_computation/du/1du1/1du1.pr.out
profile	/app/data/saxs_computation/du/1du1/1du1.dat

PEPTIDE FRAGMENT THR671-LEU690 OF THE RABBIT SKELETAL DIHYDROPYRIDINE RECEPTOR

1. Protein Identity and Related Structures Protein Identity & Related Structures

SKELETAL DIHYDROPYRIDINE RECEPTOR

State in the Current Structure

Other States of the Same Protein in the Database

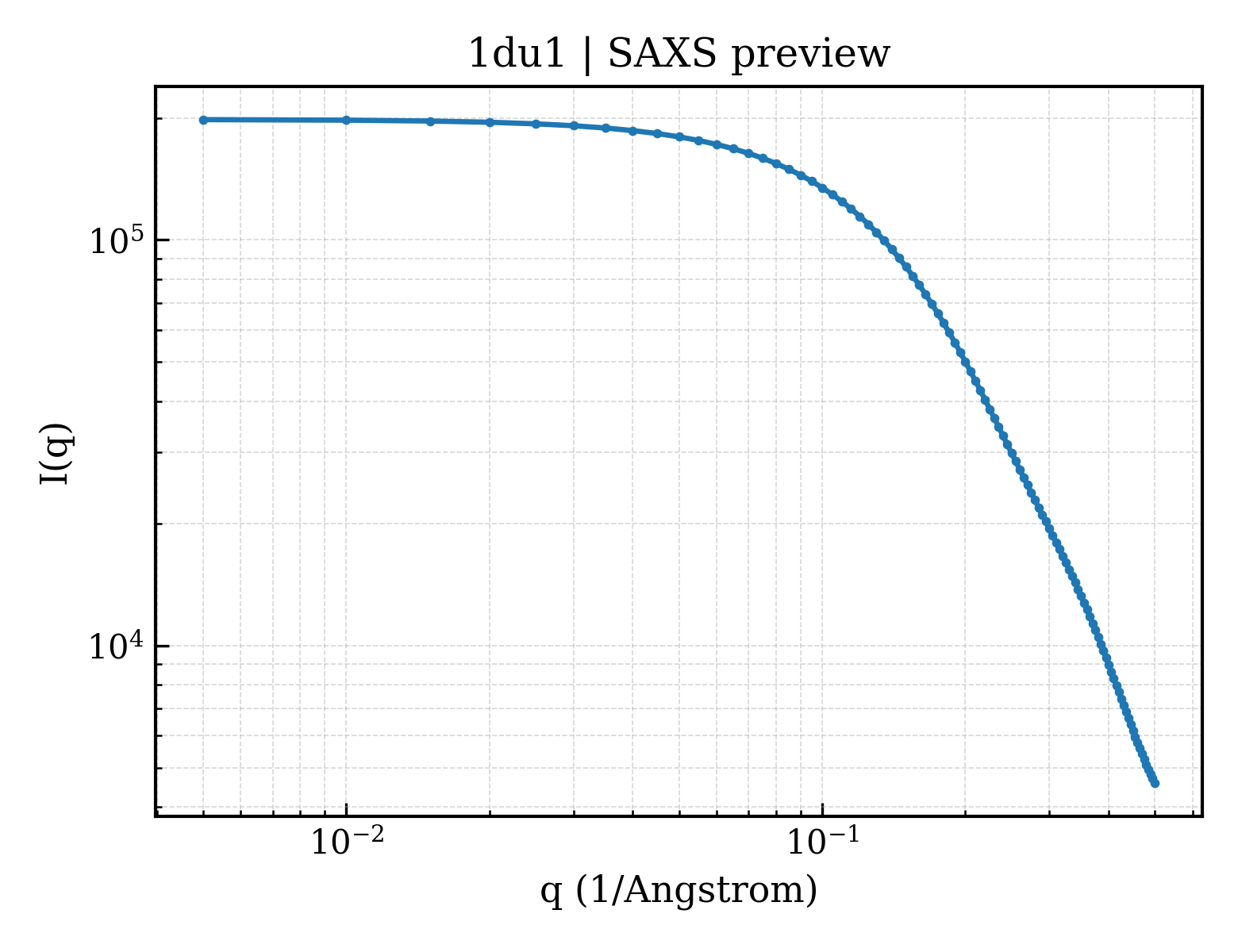

SAXS scattering curve SAXS Profile
