6jp8

Rabbit Cav1.1-Bay K8644 Complex

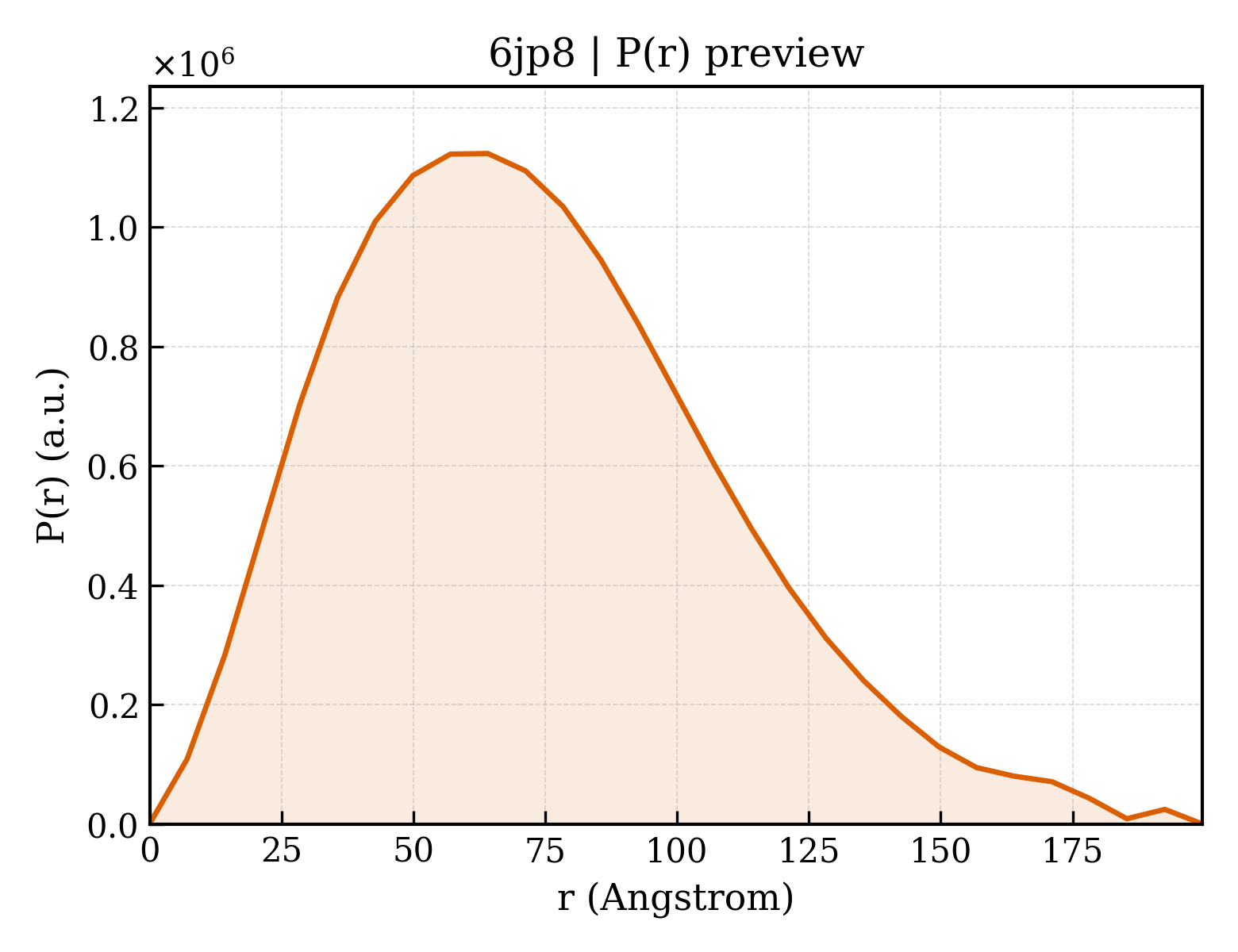

Method: ELECTRON MICROSCOPY Dmax: 199.6 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-dependent calcium channel gamma-1 subunit

OrganismNot specified

UniProt P19518

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 7 PDB declaration: pentameric（5） Consistent with protein copy count Chain E； UniProt 1–222 Not recorded Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6JP8 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3JBR Cryo-EM structure of the rabbit voltage-gated calcium channel Cav1.1 complex at 4.2 angstrom Deposited 2015-09-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15 BMA beta-D-mannopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer 20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin；pH 7.4；20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin
cryo-EM vitrification conditions Blot for 2 seconds before plunging；Cryogen ETHANE
Resolution 4.20 Å
5GJV Structure of the mammalian voltage-gated calcium channel Cav1.1 complex at near atomic resolution Deposited 2016-07-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–222（222 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.60 Å
5GJW Structure of the mammalian voltage-gated calcium channel Cav1.1 complex for ClassII map Deposited 2016-07-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–222（222 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.90 Å
6JP5 Rabbit Cav1.1-Nifedipine Complex Deposited 2019-03-25 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–222（222 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 C5U dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JPA Rabbit Cav1.1-Verapamil Complex Deposited 2019-03-26 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–222（222 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 4YH (2S)-2-(3,4-dimethoxyphenyl)-5-{[2-(3,4-dimethoxyphenyl)ethyl](methyl)amino}-2-(propan-2-yl)pentanenitrile × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
6JPB Rabbit Cav1.1-Diltiazem Complex Deposited 2019-03-26 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–222（222 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C9F Diltiazem × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7JPK Rabbit Cav1.1 in the presence of 100 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.0 Angstrom resolution Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.00 Å
7JPL Rabbit Cav1.1 in the presence of 10 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPV Rabbit Cav1.1 in the presence of 1 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPW Rabbit Cav1.1 in the presence of 100 micromolar (R)-(+)-Bay K8644 in nanodiscs at 3.2 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 VFY methyl (4R)-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.20 Å
7JPX Rabbit Cav1.1 in the presence of 100 micromolar amlodipine in nanodiscs at 2.9 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 6UB amlodipine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 2.90 Å
8E56 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone at 2.8 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E57 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 100 microM MNI-1 at 2.8 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E58 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 1 mM MNI-1 at 3.0 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–222（222 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CCG1_RABIT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain E； PDBConstruct 1–222； UniProt 1–222

Voltage-dependent L-type calcium channel subunit beta-1

Oryctolagus cuniculus

UniProt P19517

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 7 PDB declaration: pentameric（5） Consistent with protein copy count Chain B； UniProt 80–524 Chain C； UniProt 80–524 Not recorded Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6JP8 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5GJV Structure of the mammalian voltage-gated calcium channel Cav1.1 complex at near atomic resolution Deposited 2016-07-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 80–174（95 aa） Fragment：UNP residues 80-174
Chain C 265–463（199 aa） Fragment：UNP residues 265-463
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.60 Å
5GJW Structure of the mammalian voltage-gated calcium channel Cav1.1 complex for ClassII map Deposited 2016-07-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 80–174（95 aa） Fragment：UNP residues 80-174
Chain C 265–463（199 aa） Fragment：UNP residues 265-463
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.90 Å
6JP5 Rabbit Cav1.1-Nifedipine Complex Deposited 2019-03-25 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 80–524（445 aa）
Chain C 80–524（445 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 C5U dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JPA Rabbit Cav1.1-Verapamil Complex Deposited 2019-03-26 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 80–524（445 aa）
Chain C 1–524（524 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 4YH (2S)-2-(3,4-dimethoxyphenyl)-5-{[2-(3,4-dimethoxyphenyl)ethyl](methyl)amino}-2-(propan-2-yl)pentanenitrile × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
6JPB Rabbit Cav1.1-Diltiazem Complex Deposited 2019-03-26 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 80–524（445 aa）
Chain C 1–524（524 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C9F Diltiazem × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CACB1_RABIT
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 6–450； UniProt 80–524 Author chain C； PDBConstruct 6–450； UniProt 80–524

Voltage-dependent L-type calcium channel subunit alpha-1S

OrganismNot specified

UniProt P07293

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 7 PDB declaration: pentameric（5） Consistent with protein copy count Chain A； UniProt 1–1873 Not recorded Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6JP8 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1DU1 PEPTIDE FRAGMENT THR671-LEU690 OF THE RABBIT SKELETAL DIHYDROPYRIDINE RECEPTOR Deposited 2000-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 671–690（20 aa） Fragment：II-III LOOP REGION, FRAGMENT THR671-LEU690 A1
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 5；278 K；Ionic strength (raw mmCIF value) 0；Pressure 1
NMR sample composition 4 mM peptide, no buffer | 90% H2O/10% D2O
Resolution not provided
1T3L Structural Analysis of the Voltage-Dependent Calcium Channel Beta Subunit Functional Core in Complex with Alpha1 Interaction Domain Deposited 2004-04-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 357–374（18 aa） Fragment：AID
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；PEG 20K, Bicine, sodium chloride, beta-mercaptoethanol, pH 9, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.282
3JBR Cryo-EM structure of the rabbit voltage-gated calcium channel Cav1.1 complex at 4.2 angstrom Deposited 2015-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–1395（1395 aa）
Chain A 1521–1873（353 aa）
Not recorded CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15 BMA beta-D-mannopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer 20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin；pH 7.4；20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin
cryo-EM vitrification conditions Blot for 2 seconds before plunging；Cryogen ETHANE
Resolution 4.20 Å
5GJV Structure of the mammalian voltage-gated calcium channel Cav1.1 complex at near atomic resolution Deposited 2016-07-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1873（1873 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.60 Å
5GJW Structure of the mammalian voltage-gated calcium channel Cav1.1 complex for ClassII map Deposited 2016-07-02 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1873（1873 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.90 Å
6BYO Residue assignment correction to the voltage gated calcium Cav1.1 rabbit alpha 1 subunit PDB entries 3JBR & 5GJV Deposited 2017-12-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 32–1388（1357 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 3.60 Å
6JP5 Rabbit Cav1.1-Nifedipine Complex Deposited 2019-03-25 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1873（1873 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 C5U dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JPA Rabbit Cav1.1-Verapamil Complex Deposited 2019-03-26 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1506（1506 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 4YH (2S)-2-(3,4-dimethoxyphenyl)-5-{[2-(3,4-dimethoxyphenyl)ethyl](methyl)amino}-2-(propan-2-yl)pentanenitrile × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
6JPB Rabbit Cav1.1-Diltiazem Complex Deposited 2019-03-26 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–1873（1873 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C9F Diltiazem × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7JPK Rabbit Cav1.1 in the presence of 100 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.0 Angstrom resolution Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.00 Å
7JPL Rabbit Cav1.1 in the presence of 10 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPV Rabbit Cav1.1 in the presence of 1 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPW Rabbit Cav1.1 in the presence of 100 micromolar (R)-(+)-Bay K8644 in nanodiscs at 3.2 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 VFY methyl (4R)-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.20 Å
7JPX Rabbit Cav1.1 in the presence of 100 micromolar amlodipine in nanodiscs at 2.9 Angstrom resolution Deposited 2020-08-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 6UB amlodipine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 2.90 Å
7RXQ Crystal structure of junctophilin-2 in complex with a CaV1.1 peptide Deposited 2021-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1594–1609（16 aa） Fragment：EERIFRRTGGLFGQVD correspond to UNP residues 1594-1609
Not recorded EOH ETHANOL × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；PEG3350, potassium sulphate
Resolution 2.03 Å R-free 0.252
8E56 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone at 2.8 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E57 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 100 microM MNI-1 at 2.8 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E58 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 1 mM MNI-1 at 3.0 Angstrom resolution Deposited 2022-08-20 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–1873（1873 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å

18 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CAC1S_RABIT
Isoform —
PDB entities 3
Chains and sequence ranges Author chain A； PDBConstruct 1–1873； UniProt 1–1873

Voltage-dependent calcium channel subunit alpha-2/delta-1

OrganismNot specified

UniProt P13806

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Other combination Heteromer Protein × 5 其他Polymer 7 PDB declaration: pentameric（5） Consistent with protein copy count Chain F； UniProt 29–1075 Not recorded Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6JP8 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3JBR Cryo-EM structure of the rabbit voltage-gated calcium channel Cav1.1 complex at 4.2 angstrom Deposited 2015-09-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–39（39 aa）
Chain F 56–661（606 aa）
Chain F 956–1106（151 aa）
Not recorded CA CALCIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15 BMA beta-D-mannopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer 20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin；pH 7.4；20mM MOPS, 200mM NaCl, 0.5mM CaCl2,0.1% digitonin
cryo-EM vitrification conditions Blot for 2 seconds before plunging；Cryogen ETHANE
Resolution 4.20 Å
5GJV Structure of the mammalian voltage-gated calcium channel Cav1.1 complex at near atomic resolution Deposited 2016-07-02 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–1106（1106 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 14 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.60 Å
5GJW Structure of the mammalian voltage-gated calcium channel Cav1.1 complex for ClassII map Deposited 2016-07-02 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–1106（1106 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8；100 mM Tris-HCl, pH 8.0,200 mM NaCl, 10 mM CaCl2,15 mM reduced glutathione, 0.1% digitonin, and protease inhibitors.
cryo-EM vitrification conditions Cryogen ETHANE；Grids were blotted for 2 s and flash-frozen in liquid ethane cooled by liquid nitrogen
Resolution 3.90 Å
6JP5 Rabbit Cav1.1-Nifedipine Complex Deposited 2019-03-25 Different construct Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–1074（1074 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 C5U dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JPA Rabbit Cav1.1-Verapamil Complex Deposited 2019-03-26 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 29–1075（1047 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 9Z9 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1 4YH (2S)-2-(3,4-dimethoxyphenyl)-5-{[2-(3,4-dimethoxyphenyl)ethyl](methyl)amino}-2-(propan-2-yl)pentanenitrile × 2 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
6JPB Rabbit Cav1.1-Diltiazem Complex Deposited 2019-03-26 Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 29–1075（1047 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 CA CALCIUM ION × 3 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C9F Diltiazem × 1 ETA ETHANOLAMINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7JPK Rabbit Cav1.1 in the presence of 100 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.0 Angstrom resolution Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.00 Å
7JPL Rabbit Cav1.1 in the presence of 10 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 C8U methyl (4~{S})-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPV Rabbit Cav1.1 in the presence of 1 micromolar (S)-(-)-Bay K8644 in nanodiscs at 3.4 Angstrom resolution Deposited 2020-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.40 Å
7JPW Rabbit Cav1.1 in the presence of 100 micromolar (R)-(+)-Bay K8644 in nanodiscs at 3.2 Angstrom resolution Deposited 2020-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 VFY methyl (4R)-2,6-dimethyl-5-nitro-4-[2-(trifluoromethyl)phenyl]-1,4-dihydropyridine-3-carboxylate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 3.20 Å
7JPX Rabbit Cav1.1 in the presence of 100 micromolar amlodipine in nanodiscs at 2.9 Angstrom resolution Deposited 2020-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 9 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 6UB amlodipine × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 5 seconds before plunging
Resolution 2.90 Å
8E56 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone at 2.8 Angstrom resolution Deposited 2022-08-20 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E57 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 100 microM MNI-1 at 2.8 Angstrom resolution Deposited 2022-08-20 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8E58 Rabbit L-type voltage-gated calcium channel Cav1.1 in the presence of Amiodarone and 1 mM MNI-1 at 3.0 Angstrom resolution Deposited 2022-08-20 Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–1106（1106 aa）
Not recorded CA CALCIUM ION × 2 BBI (2-butyl-1-benzofuran-3-yl){4-[2-(diethylamino)ethoxy]-3,5-diiodophenyl}methanone × 1 WFR propan-2-yl (2S)-2-{[(S)-{[(2R,3S,4R,5R)-5-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)-4-ethynyl-3-hydroxy-4-methyloxolan-2-yl]methoxy}(phenoxy)phosphoryl]amino}propanoate (non-preferred name) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8EOG Structure of the human L-type voltage-gated calcium channel Cav1.2 complexed with L-leucine Deposited 2022-10-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 29–1079（1051 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 CA CALCIUM ION × 3 NA SODIUM ION × 1 LEU LEUCINE × 1 CLR CHOLESTEROL × 3 WNZ (2R)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(dodecanoyloxy)propyl dodecanoate × 1 WO9 (2R)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(dodecanoyloxy)propyl heptadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8FD7 Structure of the human L-type voltage-gated calcium channel Cav1.2 complexed with gabapentin Deposited 2022-12-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–1106（1106 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 GBN [1-(AMINOMETHYL)CYCLOHEXYL]ACETIC ACID × 1 CA CALCIUM ION × 3 NA SODIUM ION × 1 WO9 (2R)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(dodecanoyloxy)propyl heptadecanoate × 1 YSW (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(dodecanoyloxy)propyl dodecanoate × 1 CLR CHOLESTEROL × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CA2D1_RABIT
Isoform —
PDB entities 4
Chains and sequence ranges Author chain F； PDBConstruct 1–1046； UniProt 29–1075

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6jp8

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6jp8
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6jp8
Deposition date deposition_date2019-03-26
Structure title titleRabbit Cav1.1-Bay K8644 Complex
Keywords keywordsMembrane protein complex modulated by FDA approved drug., MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier56.81 Å
Radius of gyration Rg (electron density) rg_electron56.86 Å
Forward intensity I(0) i01264780000.00
Molecular weight molecular_weight309400.0 kDa
Excluded volume excluded_volume392060 ų
Envelope volume envelope_volume606640 ų
Hydration-shell volume shell_volume92440 ų
Envelope diameter envelope_diameter213.3 Å
Shell Rg shell_rg55.66 Å
Envelope Rg envelope_rg56.63 Å
Shape Rg shape_rg56.87 Å
Total Rg total_rg56.78 Å
Total atoms total_atoms21793
Residues n_residues2694
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax199.6 Å
Rg (real space) rg_real57.18 Å
Rg uncertainty (real space) rg_real_error2.35 Å
I(0) (real space) i0_real1.2650e+09
I(0) uncertainty (real space) i0_real_error2.7530e+07
Rg (reciprocal space) rg_reciprocal56.49 Å
I(0) (reciprocal space) i0_reciprocal1263000000.0000
Solution quality estimate total_estimate0.8435
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary64.2 Å
Skewness Skewness skewness0.553
Kurtosis Kurtosis kurtosis0.014
Angular range angular_range— – 0.1400 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha110200000.0000
Real-space data points n_real_points29
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.801; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.596
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (11)

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id6jp8B00
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology30 — SH3 type barrels.
Homologous superfamily homologous superfamily40 — SH3 Domains
Domain ID domain_id6jp8C00
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily300 — P-loop containing nucleotide triphosphate hydrolases
Domain ID domain_id6jp8E00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily150 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
