6jp5

Rabbit Cav1.1-Nifedipine Complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-dependent L-type calcium channel subunit alpha-1S

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 7	Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CALCIUM ION × 3 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAC1S_RABIT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1873； UniProt 1–1873

Voltage-dependent calcium channel gamma-1 subunit

OrganismNot specified

UniProt P19518

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 7	Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CALCIUM ION × 3 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCG1_RABIT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–222； UniProt 1–222

Voltage-dependent calcium channel subunit alpha-2/delta-1

OrganismNot specified

UniProt P13806

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 7	Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent L-type calcium channel subunit beta-1 × 2 （P19517） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CALCIUM ION × 3 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CA2D1_RABIT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–1073； UniProt 1–1074

Voltage-dependent L-type calcium channel subunit beta-1

Oryctolagus cuniculus

UniProt P19517

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 7	Voltage-dependent L-type calcium channel subunit alpha-1S × 1 （P07293） Voltage-dependent calcium channel gamma-1 subunit × 1 （P19518） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P13806） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CALCIUM ION × 3 1,2-Distearoyl-sn-glycerophosphoethanolamine × 8 dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate × 1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 1 ETHANOLAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CACB1_RABIT
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 6–450； UniProt 80–524 Author chain C； PDBConstruct 6–450； UniProt 80–524

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6jp5
Deposition date deposition_date	2019-03-25
Structure title title	Rabbit Cav1.1-Nifedipine Complex
Keywords keywords	Membrane protein complex modulated by FDA approved drug., MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6jp5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6jp5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

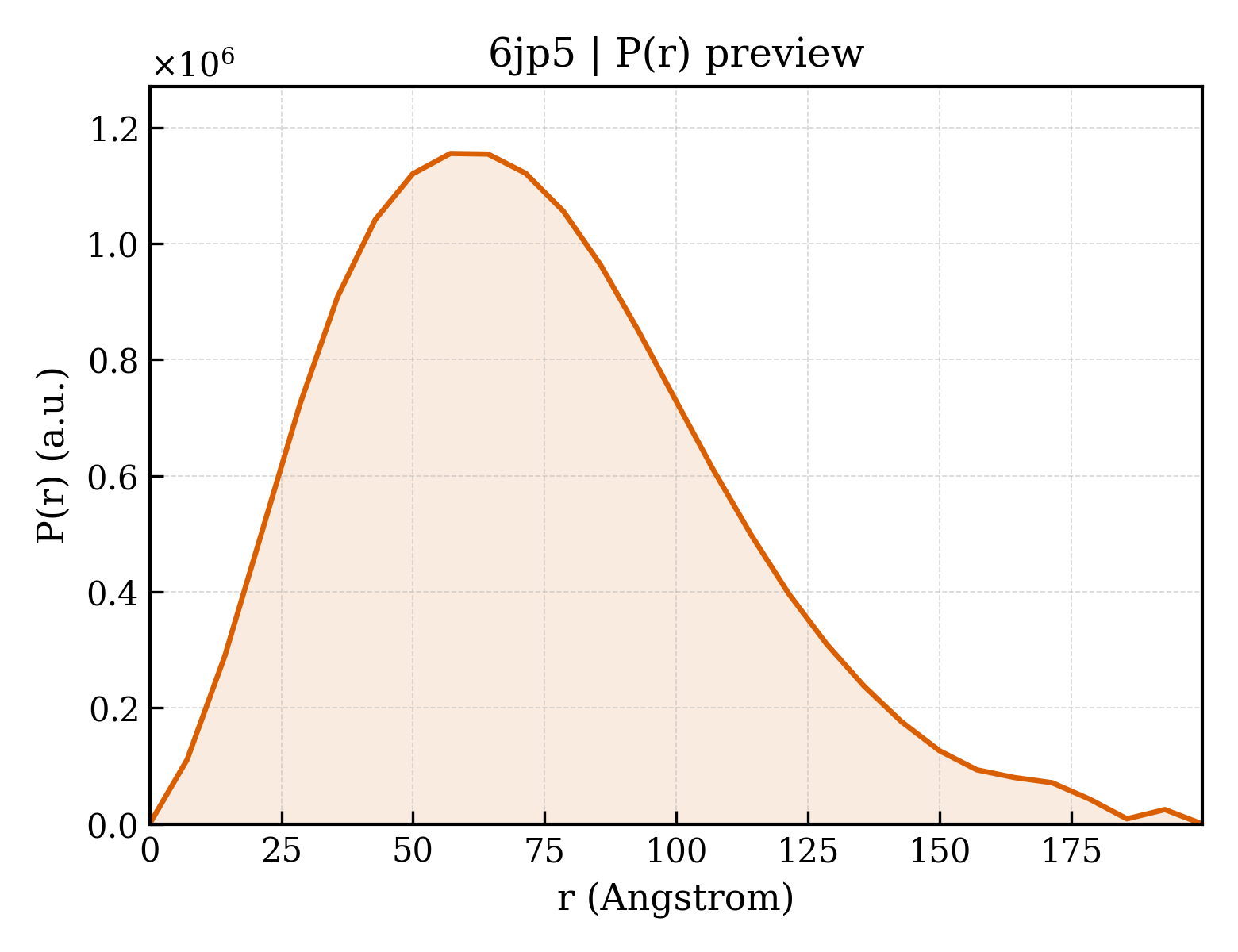

6jp5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	56.59 Å
Rg (electron density)	56.60 Å
Total Rg	56.45 Å
Atom count	22060
Residues	2694
Excluded volume	397530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6jp5__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Voltage-dependent L-type calcium channel subunit alpha-1S
Molecular weight formula_weight	212240.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22068

MEPSSPQDEGLRKKQPKKPLPEVLPRPPRALFCLTLQNPLRKACISIVEWKPFETIILLTIFANCVALAVYLPMPEDDNNSLNLGLEKLEYFFLTVFSIEAAMKIIAYGFLFHQDAYLRSGWNVLDFIIVFLGVFTAILEQVNVIQSNTAPMSSKGAGLDVKALRAFRVLRPLRLVSGVPSLQVVLNSIFKAMLPLFHIALLVLFMVIIYAIIGLELFKGKMHKTCYYIGTDIVATVENEKPSPCARTGSGRPCTINGSECRGGWPGPNHGITHFDNFGFSMLTVYQCITMEGWTDVLYWVNDAIGNEWPWIYFVTLILLGSFFILNLVLGVLSGEFTKEREKAKSRGTFQKLREKQQLEEDLRGYMSWITQGEVMDVEDLREGKLSLEEGGSDTESLYEIEGLNKIIQFIRHWRQWNRVFRWKCHDLVKSRVFYWLVILIVALNTLSIASEHHNQPLWLTHLQDIANRVLLSLFTIEMLLKMYGLGLRQYFMSIFNRFDCFVVCSGILELLLVESGAMTPLGISVLRCIRLLRLFKITKYWTSLSNLVASLLNSIRSIASLLLLLFLFIIIFALLGMQLFGGRYDFEDTEVRRSNFDNFPQALISVFQVLTGEDWNSVMYNGIMAYGGPSYPGVLVCIYFIILFVCGNYILLNVFLAIAVDNLAEAESLTSAQKAKAEERKRRKMSRGLPDKTEEEKSVMAKKLEQKPKGEGIPTTAKLKVDEFESNVNEVKDPYPSADFPGDDEEDEPEIPVSPRPRPLAELQLKEKAVPIPEASSFFIFSPTNKVRVLCHRIVNATWFTNFILLFILLSSAALAAEDPIRAESVRNQILGYFDIAFTSVFTVEIVLKMTTYGAFLHKGSFCRNYFNILDLLVVAVSLISMGLESSTISVVKILRVLRVLRPLRAINRAKGLKHVVQCVFVAIRTIGNIVLVTTLLQFMFACIGVQLFKGKFFSCNDLSKMTEEECRGYYYVYKDGDPTQMELRPRQWIHNDFHFDNVLSAMMSLFTVSTFEGWPQLLYRAIDSNEEDMGPVYNNRVEMAIFFIIYIILIAFFMMNIFVGFVIVTFQEQGETEYKNCELDKNQRQCVQYALKARPLRCYIPKNPYQYQVWYVVTSSYFEYLMFALIMLNTICLGMQHYHQSEEMNHISDILNVAFTIIFTLEMILKLLAFKARGYFGDPWNVFDFLIVIGSIIDVILSEIDTFLASSGGLYCLGGGCGNVDPDESARISSAFFRLFRVMRLIKLLSRAEGVRTLLWTFIKSFQALPYVALLIVMLFFIYAVIGMQMFGKIALVDGTQINRNNNFQTFPQAVLLLFRCATGEAWQEILLACSYGKLCDPESDYAPGEEYTCGTNFAYYYFISFYMLCAFLIINLFVAVIMDNFDYLTRDWSILGPHHLDEFKAIWAEYDPEAKGRIKHLDVVTLLRRIQPPLGFGKFCPHRVACKRLVGMNMPLNSDGTVTFNATLFALVRTALKIKTEGNFEQANEELRAIIKKIWKRTSMKLLDQVIPPIGDDEVTVGKFYATFLIQEHFRKFMKRQEEYYGYRPKKDTVQIQAGLRTIEEEAAPEIRRTISGDLTAEEELERAMVEAAMEERIFRRTGGLFGQVDTFLERTNSLPPVMANQRPLQFAEIEMEELESPVFLEDFPQDARTNPLARANTNNANANVAYGNSNHSNNQMFSSVHCEREFPGEAETPAAGRGALSHSHRALGPHSKPCAGKLNGQLVQPGMPINQAPPAPCQQPSTDPPERGQRRTSLTGSLQDEAPQRRSSEGSTPRRPAPATALLIQEALVRGGLDTLAADAGFVTATSQALADACQMEPEEVEVAATELLKARESVQGMASVPGSLSRRSSLGSLDQVQGSQETLIPPRP

Entity 2 Entity 2 polymer

Description description	Voltage-dependent calcium channel gamma-1 subunit
Molecular weight formula_weight	25082.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSPTEAPKVRVTLFCILVGIVLAMTAVVSDHWAVLSPHMENHNTTCEAAHFGLWRICTKRIALGEDRSCGPITLPGEKNCSYFRHFNPGESSEIFEFTTQKEYSISAAAISVFSLGFLIMGTICALMAFRKKRDYLLRPASMFYVFAGLCLFVSLEVMRQSVKRMIDSEDTVWIEYYYSWSFACACAAFVLLFLGGISLLLFSLPRMPQNPWESCMDAEPEH

Entity 3 Entity 3 polymer

Description description	Voltage-dependent calcium channel subunit alpha-2/delta-1
Molecular weight formula_weight	121675.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MAAGRPLAWTLTLWQAWLILIGPSSEEPFPSAVTIKSWVDKMQEDLVTLAKTASGVHQLVDIYEKYQDLYTVEPNNARQLVEIAARDIEKLLSNRSKALVRLALEAEKVQAAHQWREDFASNEVVYYNAKDDLDPEKNDSEPGSQRIKPVFIDDANFRRQVSYQHAAVHIPTDIYEGSTIVLNELNWTSALDDVFKKNREEDPSLLWQVFGSATGLARYYPASPWVDNSRTPNKIDLYDVRRRPWYIQGAASPKDMLILVDVSGSVSGLTLKLIRTSVSEMLETLSDDDFVNVASFNSNAQDVSCFQHLVQANVRNKKVLKDAVNNITAKGITDYKKGFSFAFEQLLNYNVSRANCNKIIMLFTDGGEERAQEIFAKYNKDKKVRVFTFSVGQHNYDRGPIQWMACENKGYYYEIPSIGAIRINTQEYLDVLGRPMVLAGDKAKQVQWTNVYLDALELGLVITGTLPVFNITGQFENKTNLKNQLILGVMGVDVSLEDIKRLTPRFTLCPNGYYFAIDPNGYVLLHPNLQPKPIGVGIPTINLRKRRPNVQNPKSQEPVTLDFLDAELENDIKVEIRNKMIDGESGEKTFRTLVKSQDERYIDKGNRTYTWTPVNGTDYSLALVLPTYSFYYIKAKIEETITQARYSETLKPDNFEESGYTFLAPRDYCSDLKPSDNNTEFLLNFNEFIDRKTPNNPSCNTDLINRVLLDAGFTNELVQNYWSKQKNIKGVKARFVVTDGGITRVYPKEAGENWQENPETYEDSFYKRSLDNDNYVFTAPYFNKSGPGAYESGIMVSKAVEIYIQGKLLKPAVVGIKIDVNSWIENFTKTSIRDPCAGPVCDCKRNSDVMDCVILDDGGFLLMANHDDYTNQIGRFFGEIDPSLMRHLVNISVYAFNKSYDYQSVCEPGAAPKQGAGHRSAYVPSIADILQIGWWATAAAWSILQQFLLSLTFPRLLEAADMEDDDFTASMSKQSCITEQTQYFFDNDSKSFSGVLDCGNCSRIFHVEKLMNTNLIFIMVESKGTCPCDTRLLIQAEQTSDGPDPCDMVKQPRYRKGPDVCFDNNVLEDYTDC

Entity 4 Entity 4 polymer

Description description	Voltage-dependent L-type calcium channel subunit beta-1
Molecular weight formula_weight	49642.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

QGPHMALRKEAERQALAQLEKAKTKPVAFAVRTNVGYNPSPGDEVPVEGVAITFEPKDFLHIKEKYNNDWWIGRLVKEGCEVGFIPSPVKLDSLRLLQEQKLRQSRLSSSKSGDNSSSSLGDVVTGTRRPTPPASGNEMTNLAFELEPLDLEEDEAELGEQSGSAKTSVSSVTTPPPHGTRIPFFKKTEHVPPYDVVPSMRPIILVGPSLKGYEVTDMMQKALFDFLKHLFDGRISITRVTADISLAKRSVLNNPSKHIIIERSNTRSSLAEVQSEIERIFELARTLQLVALDADTINHPAQLSKTSLAPIIVYIKITSPKVLQRLIKSRGKSQSKHLNVQIAASEKLAQCPPEMFDIILDENQLEDACEHLAEYLEAYWKATHPPSSTPPNPLLNRTMATAALAASPAPVSNLQVQVLTSLRRNLSFWGGLETSQRGGGAVPQQQEHAM

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	Rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	5

Entity 6 Entity 6 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	9

Entity 8 Entity 8 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 non-polymer

Description description	1,2-Distearoyl-sn-glycerophosphoethanolamine
Molecular weight formula_weight	748.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 10 Entity 10 non-polymer

Description description	dimethyl 2,6-dimethyl-4-(2-nitrophenyl)-1,4-dihydropyridine-3,5-dicarboxylate
Molecular weight formula_weight	346.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 non-polymer

Description description	1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	790.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 12 Entity 12 non-polymer

Description description	ETHANOLAMINE
Molecular weight formula_weight	61.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	6jp5B00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	6jp5C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	6jp5E00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	150 —

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	245171
