1e0e
N-terminal zinc-binding HHCC domain of HIV-2 integrase

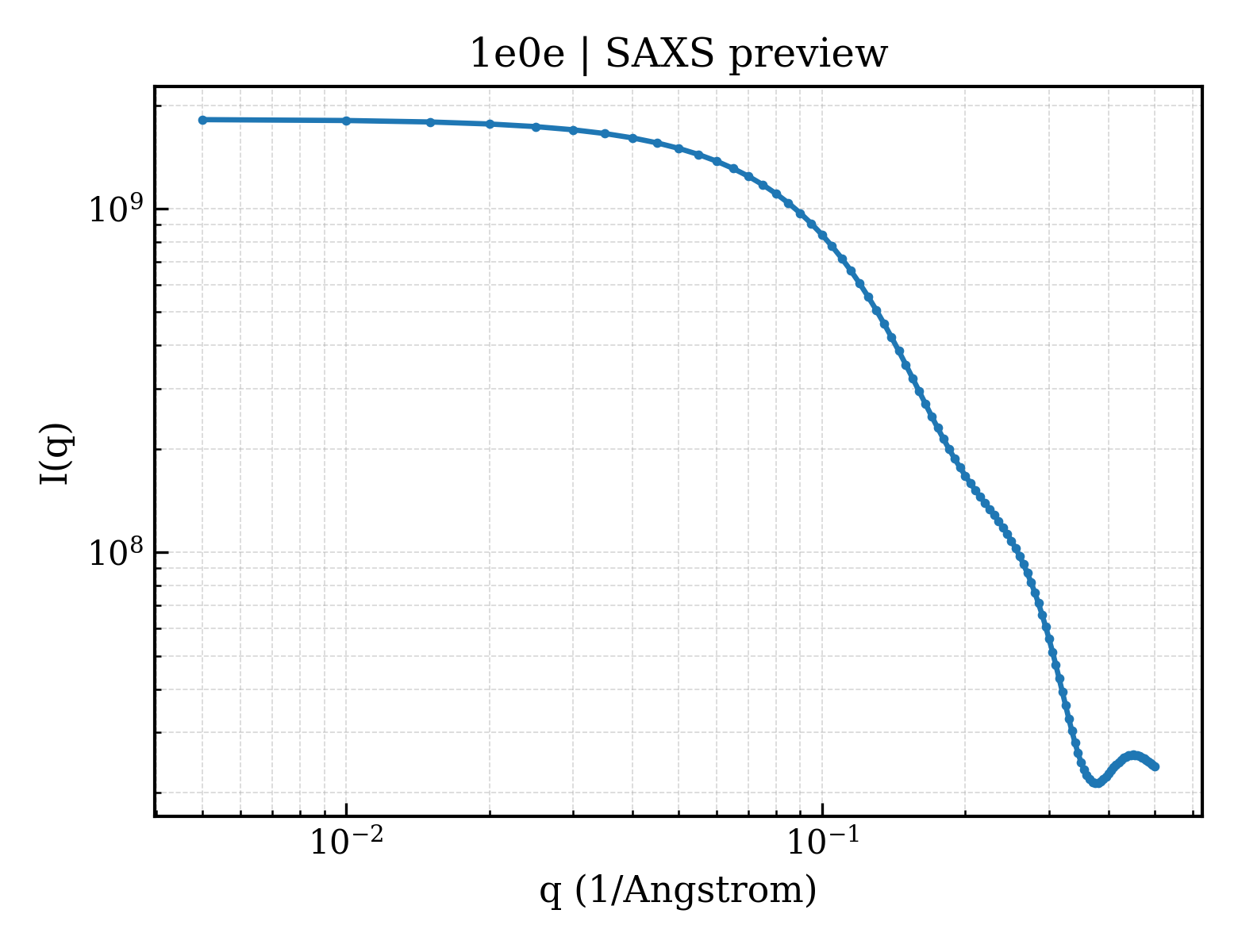

SAXS Profile

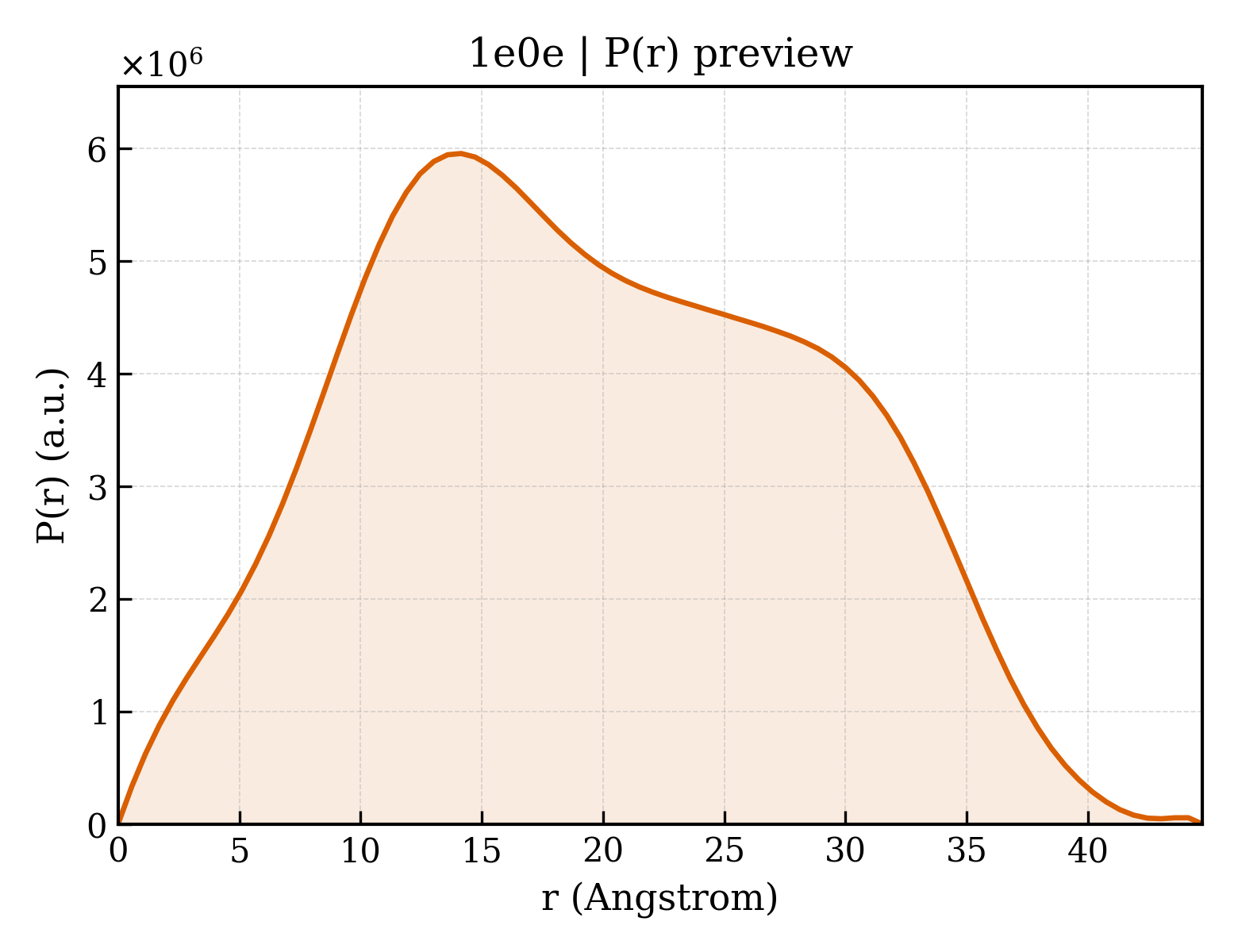

P(r) Distribution
1. Structure Basics
| entry_id | 1e0e |
| deposition_date | 2000-03-25 |
| title | N-terminal zinc-binding HHCC domain of HIV-2 integrase |
| keywords | INTEGRASE, AIDS, POLYPROTEIN, DIMER, ZINC-BINDING PROTEIN, HELIX-TURN-HELIX MOTIF; INTEGRASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.27 Å |
| rg_electron | 15.01 Å |
| i0 | 1818470000.00 |
| molecular_weight | 346460.0 kDa |
| excluded_volume | 426570 ų |
| envelope_volume | 29078 ų |
| shell_volume | 14904 ų |
| envelope_diameter | 53.0 Å |
| shell_rg | 22.15 Å |
| envelope_rg | 16.91 Å |
| shape_rg | 14.99 Å |
| total_rg | 15.14 Å |
| total_atoms | 47808 |
| n_residues | 3008 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.7 Å |
| rg_real | 15.26 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.8180e+09 |
| i0_real_error | 2.1460e+07 |
| rg_reciprocal | 15.26 Å |
| i0_reciprocal | 1818000000.0000 |
| total_estimate | 0.9107 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 14.2 Å |
| skewness | 0.135 |
| kurtosis | -0.834 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 157600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.991 |
