SAXSdb — 1ivp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-2 PROTEASE

Human immunodeficiency virus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;4-[(2R)-3-{[(1S,2S,3R,4S)-1-(cyclohexylmethyl)-2,3-dihydroxy-5-methyl-4-({(1S,2R)-2-methyl-1-[(pyridin-2-ylmethyl)carba moyl]butyl}carbamoyl)hexyl]amino}-2-{[(naphthalen-1-yloxy)acetyl]amino}-3-oxopropyl]-1H-imidazol-3-ium ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV2RO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 86–184 Author chain B； PDBConstruct 1–99； UniProt 86–184

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ivp
Deposition date deposition_date	1993-03-18
Structure title title	THE CRYSTALLOGRAPHIC STRUCTURE OF THE PROTEASE FROM HUMAN IMMUNODEFICIENCY VIRUS TYPE 2 WITH TWO SYNTHETIC PEPTIDIC TRANSITION STATE ANALOG INHIBITORS
Keywords keywords	ACID PROTEINASE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ivp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ivp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

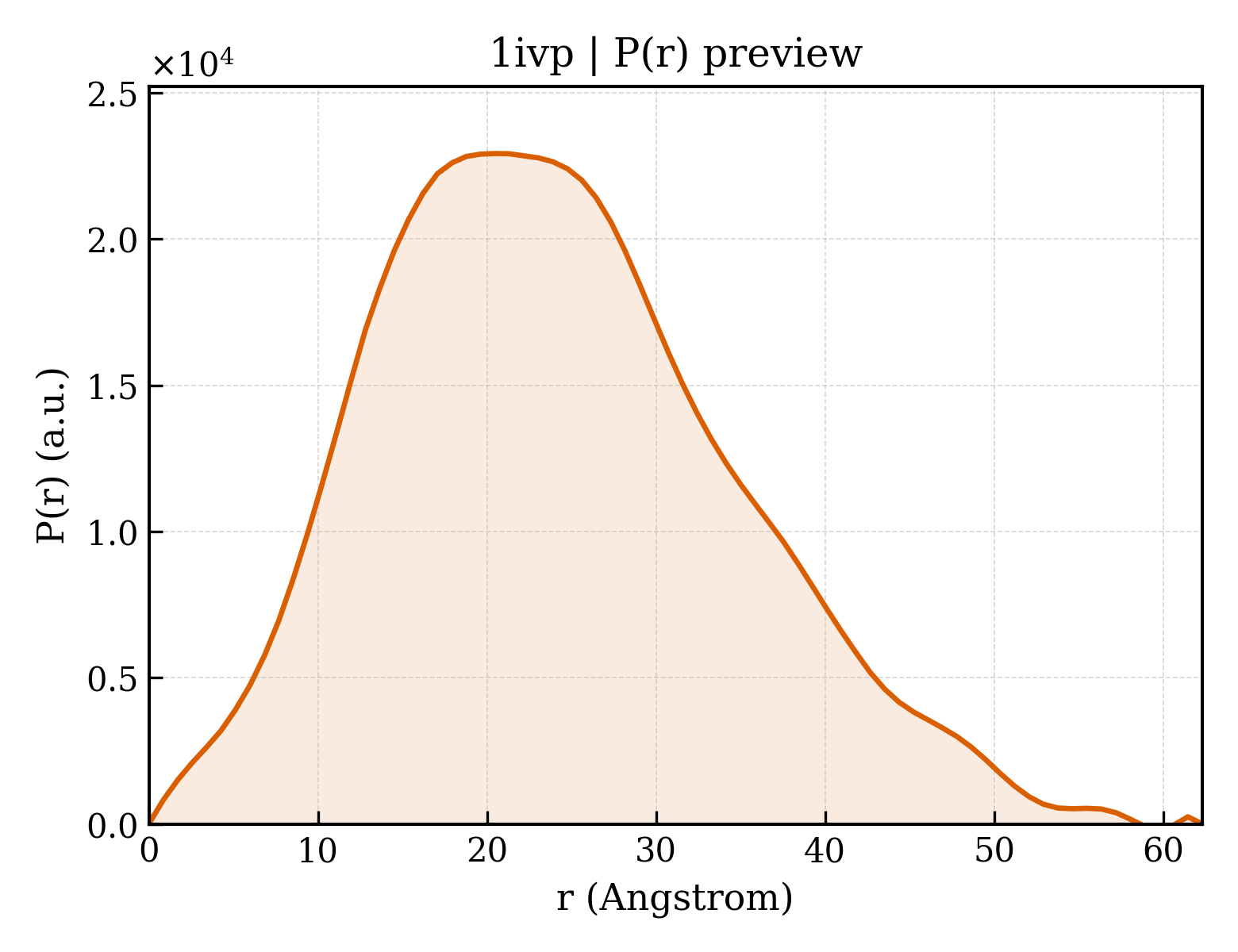

1ivp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.53 Å
Rg (electron density)	17.33 Å
Total Rg	18.28 Å
Atom count	1538
Residues	198
Excluded volume	27893 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ivp__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HIV-2 PROTEASE
Molecular weight formula_weight	10712.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1579

PQFSLWKRPVVTAYIEGQPVEVLLDTGADDSIVAGIELGNNYSPKIVGGIGGFINTLEYKNVEIEVLNKKVRATIMTGDTPINIFGRNILTALGMSLNL

Source Source

Source organism organism	Human immunodeficiency virus 2
NCBI taxonomy ID ncbi_taxonomy_id	11709
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;4-[(2R)-3-{[(1S,2S,3R,4S)-1-(cyclohexylmethyl)-2,3-dihydroxy-5-methyl-4-({(1S,2R)-2-methyl-1-[(pyridin-2-ylmethyl)carba moyl]butyl}carbamoyl)hexyl]amino}-2-{[(naphthalen-1-yloxy)acetyl]amino}-3-oxopropyl]-1H-imidazol-3-ium ;
Molecular weight formula_weight	813.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	41

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ivpa_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

Domain ID domain_id	d1ivpb_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

CATH v4.4 (2 domains)

Domain ID domain_id	1ivpA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1ivpB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

▶

Unit-cell length a length_a	33.190 Å
Unit-cell length b length_b	44.950 Å
Unit-cell length c length_c	135.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1970
R_work r_work	—
R_free r_free	—

THE CRYSTALLOGRAPHIC STRUCTURE OF THE PROTEASE FROM HUMAN IMMUNODEFICIENCY VIRUS TYPE 2 WITH TWO SYNTHETIC PEPTIDIC TRANSITION STATE ANALOG INHIBITORS
