Crystal structure of human serum albumin

Method: X-RAY DIFFRACTION D_max: 142.5 Å Quality: GOOD

SAXS Profile

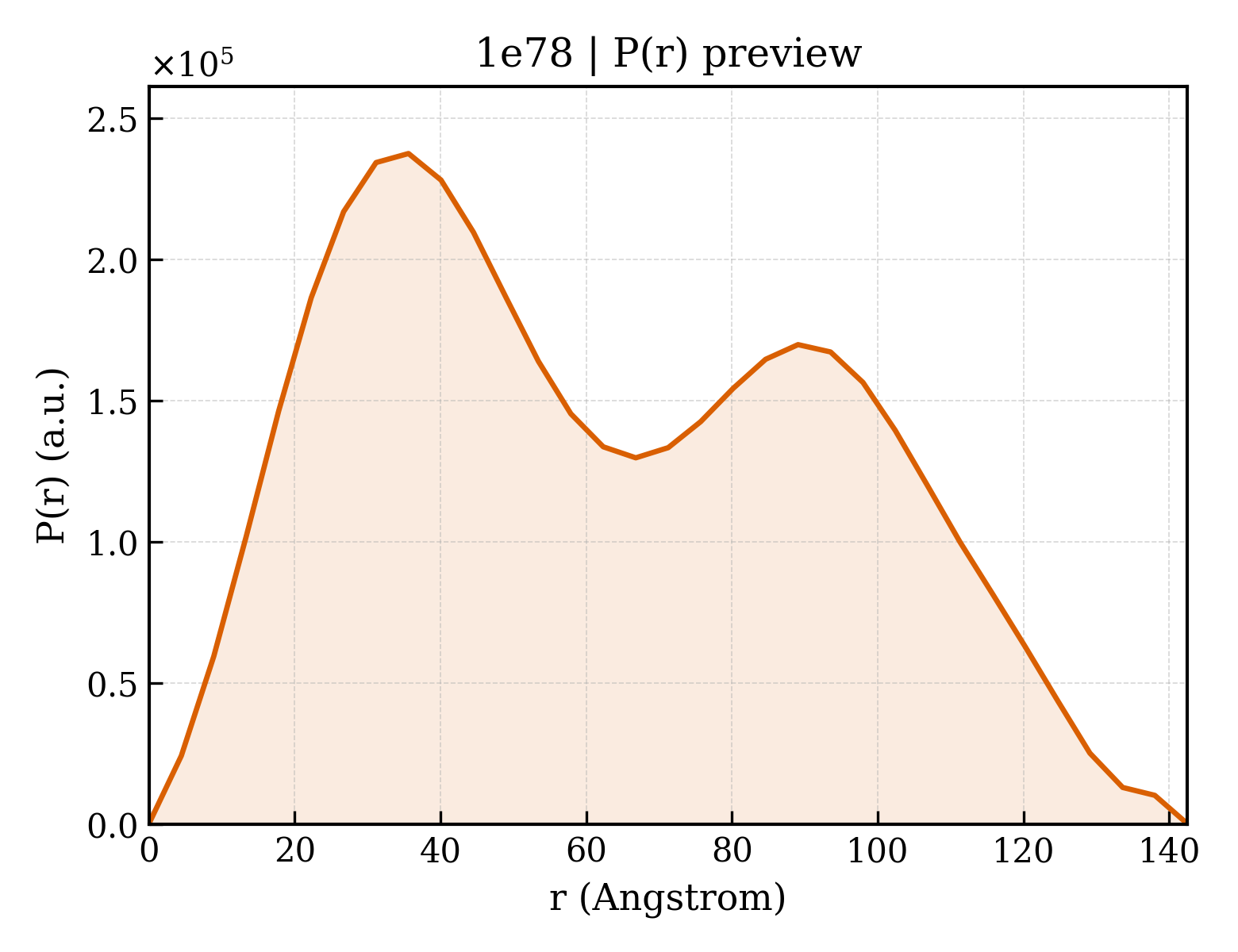

P(r) Distribution

▼

1. Structure Basics

entry_id	1e78
deposition_date	2000-08-25
title	Crystal structure of human serum albumin
keywords	CARRIER PROTEIN, ALBUMIN; CARRIER PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	48.66 Å
rg_electron	48.91 Å
i0	228662000.00
molecular_weight	122760.0 kDa
excluded_volume	152360 Å³
envelope_volume	235040 Å³
shell_volume	40532 Å³
envelope_diameter	153.3 Å
shell_rg	52.23 Å
envelope_rg	47.07 Å
shape_rg	48.90 Å
total_rg	49.05 Å
total_atoms	8604
n_residues	1156
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	142.5 Å
rg_real	49.08 Å
rg_real_error	1.27 Å
i0_real	2.2870e+08
i0_real_error	4.3820e+06
rg_reciprocal	48.67 Å
i0_reciprocal	228500000.0000
total_estimate	0.7545
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.6 Å
skewness	0.258
kurtosis	-1.034
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	16410000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.706; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.687; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	54.840 Å
length_b	55.620 Å
length_c	120.270 Å
angle_alpha	81.22 °
angle_beta	91.08 °
angle_gamma	64.28 °
z_pdb	2

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.600 Å
resolution_low	40.000 Å
r_factor	0.2470
r_work	0.2470
r_free	0.2770

description	SERUM ALBUMIN
formula_weight	66571.2 kDa
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	8664

Crystal structure of human serum albumin

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	SACCHAROMYCES CEREVISIAE

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	60

fit	/app/data/saxs_computation/e7/1e78/1e78.fit
pddf	/app/data/pr_computation/e7/1e78/1e78.pr.out
profile	/app/data/saxs_computation/e7/1e78/1e78.dat
