1e7c

HUMAN SERUM ALBUMIN COMPLEXED WITH MYRISTIC ACID and the general anesthetic halothane

Method: X-RAY DIFFRACTION D_max: 88.8 Å Quality: EXCELLENT

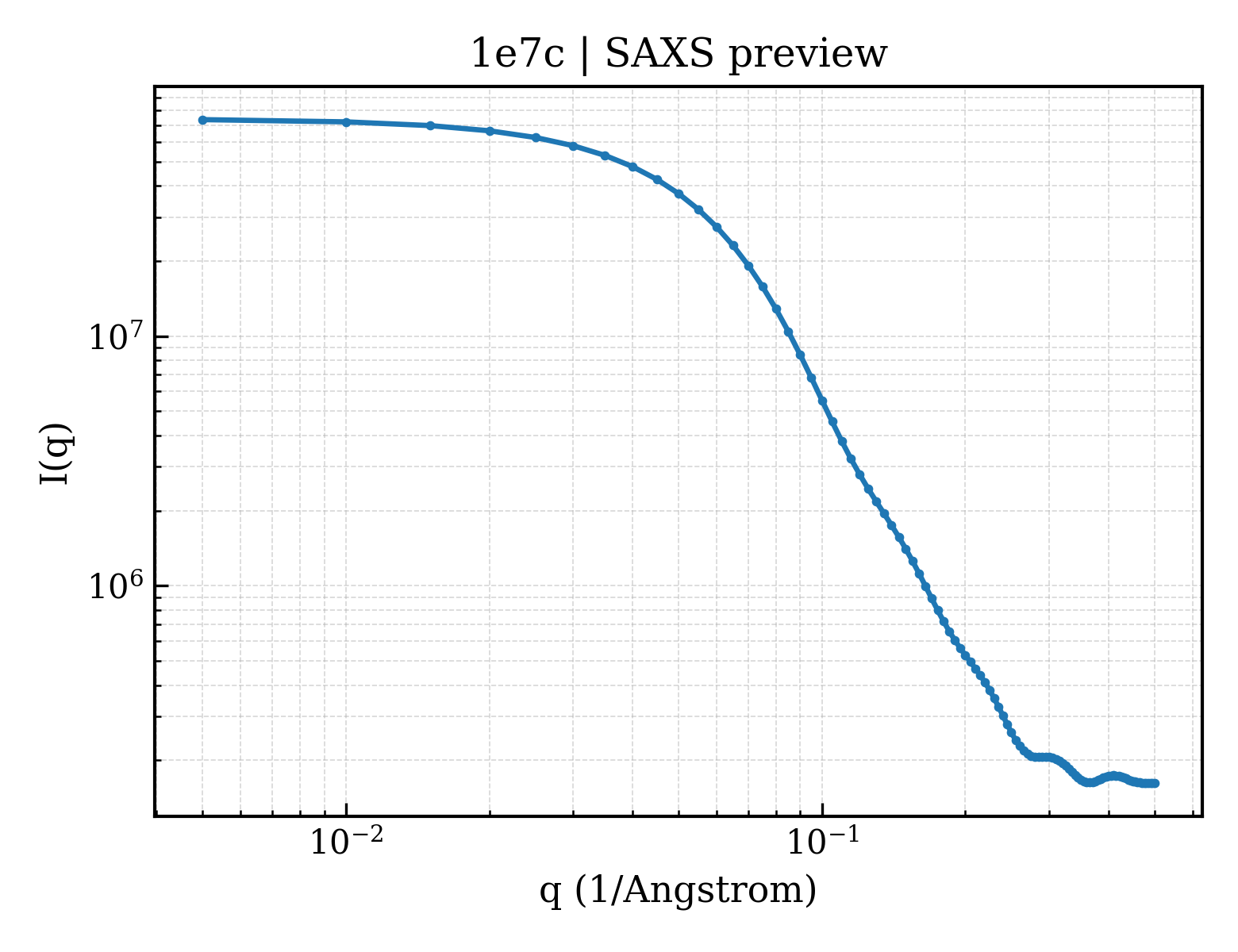

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1e7c
deposition_date	2000-08-26
title	HUMAN SERUM ALBUMIN COMPLEXED WITH MYRISTIC ACID and the general anesthetic halothane
keywords	PLASMA PROTEIN, METAL-BINDING, LIPID-BINDING, GENERAL ANESTHETIC, HALOTHANE; PLASMA PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.70 Å
rg_electron	27.89 Å
i0	74147200.00
molecular_weight	66279.0 kDa
excluded_volume	82241 Å³
envelope_volume	104640 Å³
shell_volume	31918 Å³
envelope_diameter	94.8 Å
shell_rg	34.59 Å
envelope_rg	27.73 Å
shape_rg	27.93 Å
total_rg	28.43 Å
total_atoms	4596
n_residues	582
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.8 Å
rg_real	28.64 Å
rg_real_error	0.66 Å
i0_real	7.4150e+07
i0_real_error	1.1080e+06
rg_reciprocal	28.66 Å
i0_reciprocal	74150000.0000
total_estimate	0.9093
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	33.9 Å
skewness	0.227
kurtosis	-0.528
angular_range	— – 0.2750 Å⁻¹
current_alpha	0.0000
highest_alpha	10630000.0000
n_real_points	56
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.965; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.922

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	SERUM ALBUMIN
formula_weight	66571.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4635

DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL

Source

organism	HOMO SAPIENS
common_name	HUMAN
ncbi_taxonomy_id	9606
host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 non-polymer

description	MYRISTIC ACID
formula_weight	228.4 kDa
src_method	syn
entity_count	5

Entity 3 non-polymer

description	2-BROMO-2-CHLORO-1,1,1-TRIFLUOROETHANE
formula_weight	197.4 kDa
src_method	syn
entity_count	7

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	32

▶

6. Citations (1)

▶

length_a	188.910 Å
length_b	39.080 Å
length_c	96.690 Å
angle_alpha	90.00 °
angle_beta	105.41 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.400 Å
resolution_low	47.000 Å
r_factor	0.2320
r_work	0.2320
r_free	0.2820

fit	/app/data/saxs_computation/e7/1e7c/1e7c.fit
pddf	/app/data/pr_computation/e7/1e7c/1e7c.pr.out
profile	/app/data/saxs_computation/e7/1e7c/1e7c.dat
