1e84
;Cytochrome c' from Alcaligenes xylosoxidans - reduced structure ;

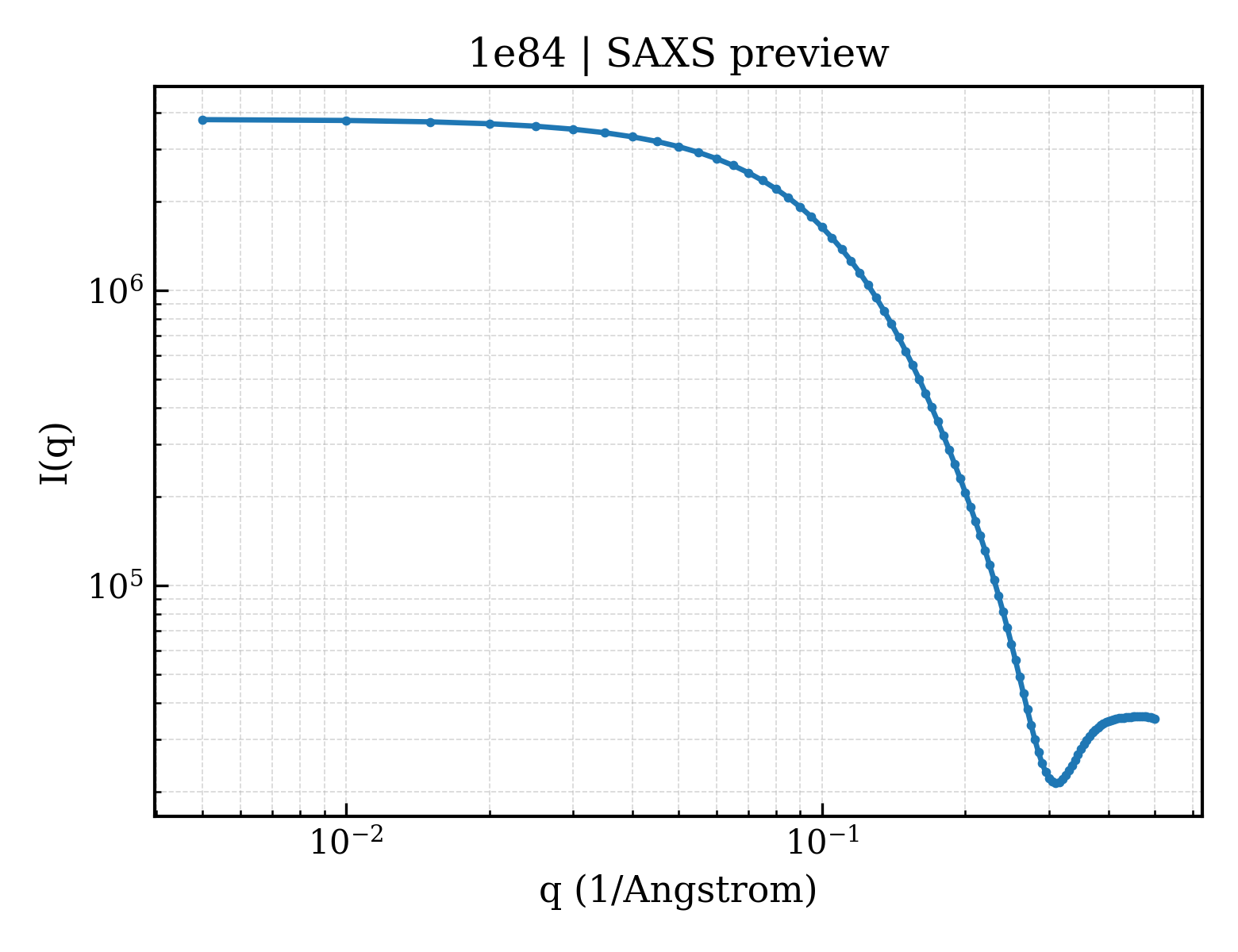

SAXS Profile

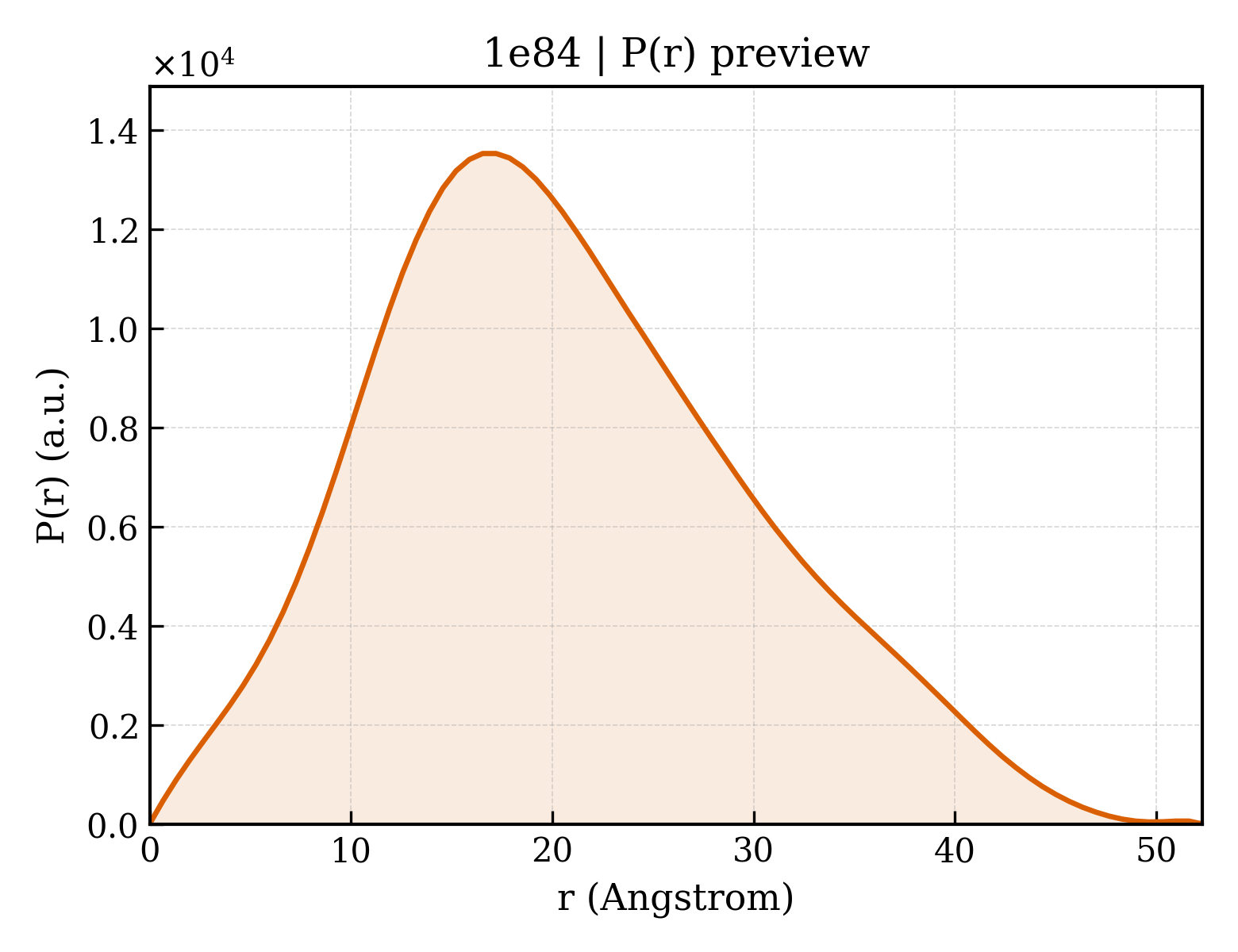

P(r) Distribution
1. Structure Basics
| entry_id | 1e84 |
| deposition_date | 2000-09-15 |
| title | ;Cytochrome c' from Alcaligenes xylosoxidans - reduced structure ; |
| keywords | CYTOCHROME, HEME, 4-HELIX BUNDLE, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.97 Å |
| rg_electron | 14.98 Å |
| i0 | 3786280.00 |
| molecular_weight | 13817.0 kDa |
| excluded_volume | 17204 ų |
| envelope_volume | 19168 ų |
| shell_volume | 11358 ų |
| envelope_diameter | 50.5 Å |
| shell_rg | 19.99 Å |
| envelope_rg | 15.37 Å |
| shape_rg | 14.99 Å |
| total_rg | 15.90 Å |
| total_atoms | 974 |
| n_residues | 125 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.3 Å |
| rg_real | 15.99 Å |
| rg_real_error | 0.27 Å |
| i0_real | 3.7860e+06 |
| i0_real_error | 4.6000e+04 |
| rg_reciprocal | 15.99 Å |
| i0_reciprocal | 3786000.0000 |
| total_estimate | 0.8778 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 51.6 Å |
| skewness | 0.390 |
| kurtosis | -0.316 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 774700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.996 |
