1e85
;Cytochrome c' from Alcaligenes xylosoxidans - reduced structure with NO bound to proximal side of heme ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1e85 |
| deposition_date | 2000-09-15 |
| title | ;Cytochrome c' from Alcaligenes xylosoxidans - reduced structure with NO bound to proximal side of heme ; |
| keywords | ELECTRON TRANSPORT, CYTOCHROME, HEME, 4-HELIX BUNDLE, NITRIC OXIDE; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data

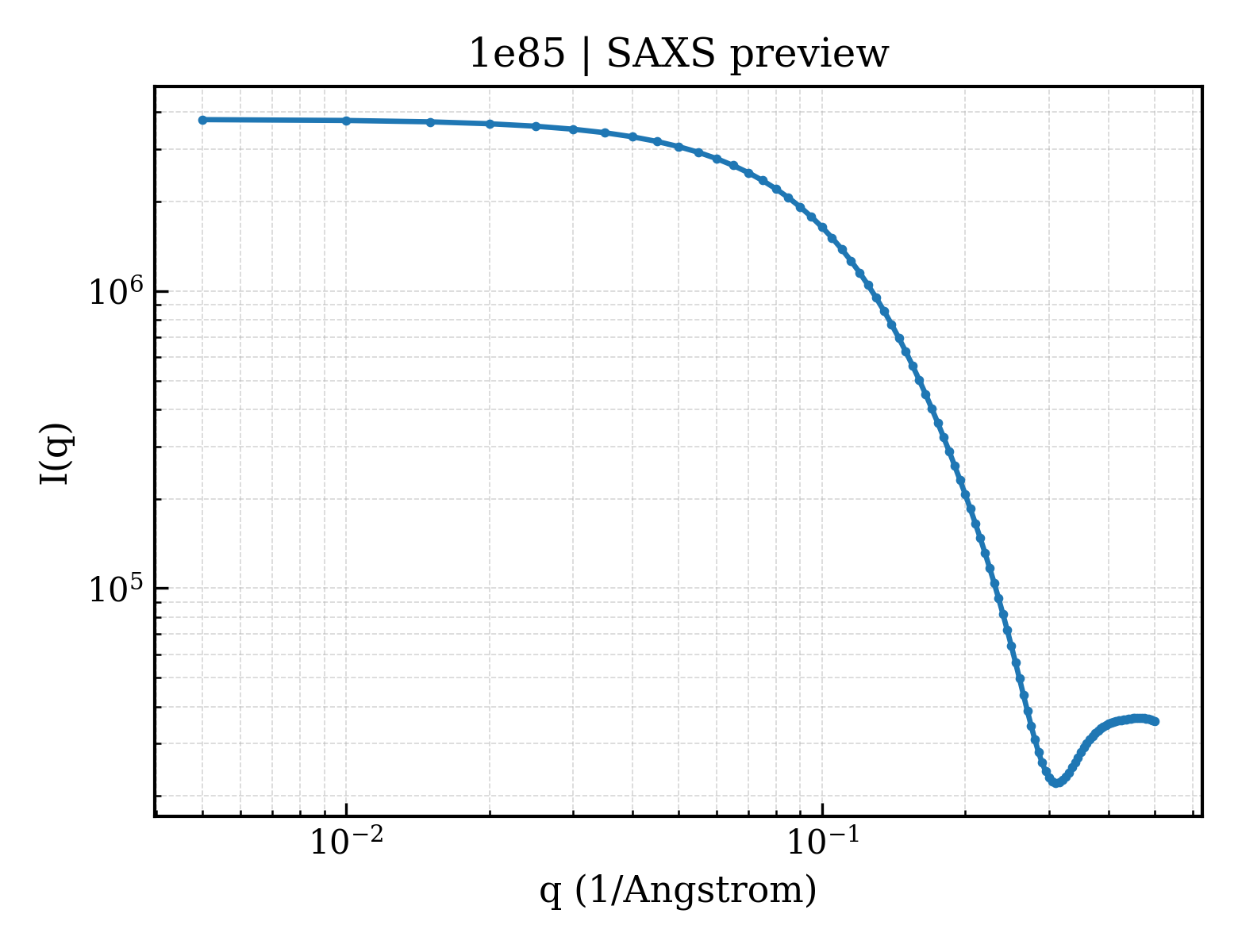

2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.91 Å |
| rg_electron | 14.99 Å |
| i0 | 3783670.00 |
| molecular_weight | 13791.0 kDa |
| excluded_volume | 17161 ų |
| envelope_volume | 19185 ų |
| shell_volume | 11354 ų |
| envelope_diameter | 52.5 Å |
| shell_rg | 19.92 Å |
| envelope_rg | 15.43 Å |
| shape_rg | 15.00 Å |
| total_rg | 15.89 Å |
| total_atoms | 972 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

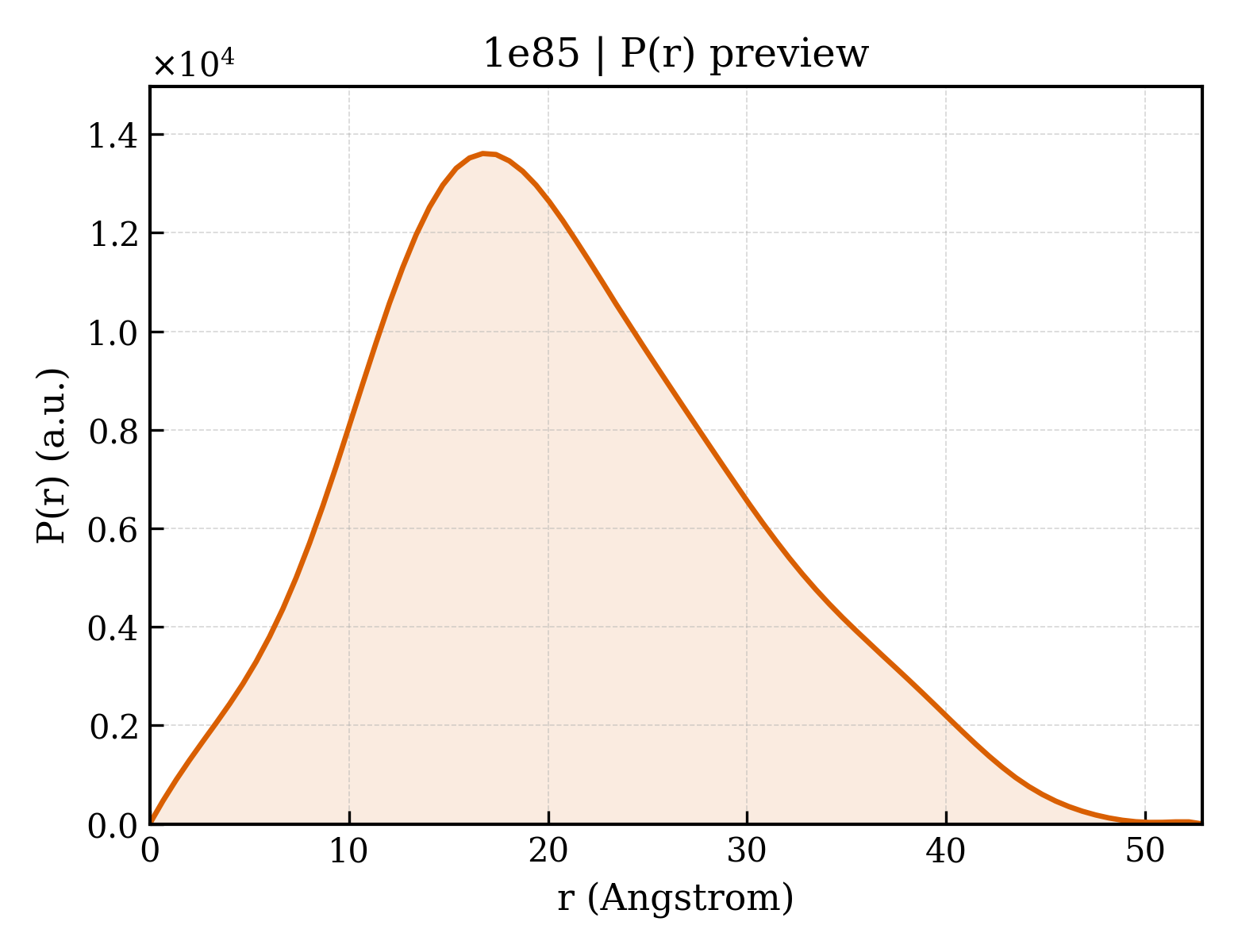

3. P(r) Analysis (GNOM)
| dmax | 52.9 Å |
| rg_real | 15.93 Å |
| rg_real_error | 0.31 Å |
| i0_real | 3.7840e+06 |
| i0_real_error | 4.4510e+04 |
| rg_reciprocal | 15.93 Å |
| i0_reciprocal | 3784000.0000 |
| total_estimate | 0.8719 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.7 Å |
| skewness | 0.391 |
| kurtosis | -0.301 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 752500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.998 |
