1ecb

ESCHERICHIA COLI GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE (PRPP) AMIDOTRANSFERASE COMPLEXED WITH 2 GMP, 1 MG PER SUBUNIT

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE AMIDOTRANSFERASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 GUANOSINE-5'-MONOPHOSPHATE × 4 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 2 GUANOSINE-5'-MONOPHOSPHATE × 4 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 4 GUANOSINE-5'-MONOPHOSPHATE × 8 water × 4	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 4 GUANOSINE-5'-MONOPHOSPHATE × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PUR1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–504； UniProt 1–504 Author chain B； PDBConstruct 1–504； UniProt 1–504 Author chain C； PDBConstruct 1–504； UniProt 1–504 Author chain D； PDBConstruct 1–504； UniProt 1–504

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ecb
Deposition date deposition_date	1997-07-15
Structure title title	ESCHERICHIA COLI GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE (PRPP) AMIDOTRANSFERASE COMPLEXED WITH 2 GMP, 1 MG PER SUBUNIT
Keywords keywords	;TRANSFERASE, GLUTAMINE AMIDOTRANSFERASE, PURINE BIOSYNTHESIS, GLYCOSYLTRANSFERASE, GMP, GUANINE 5'-MONOPHOSPHATE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ecb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ecb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

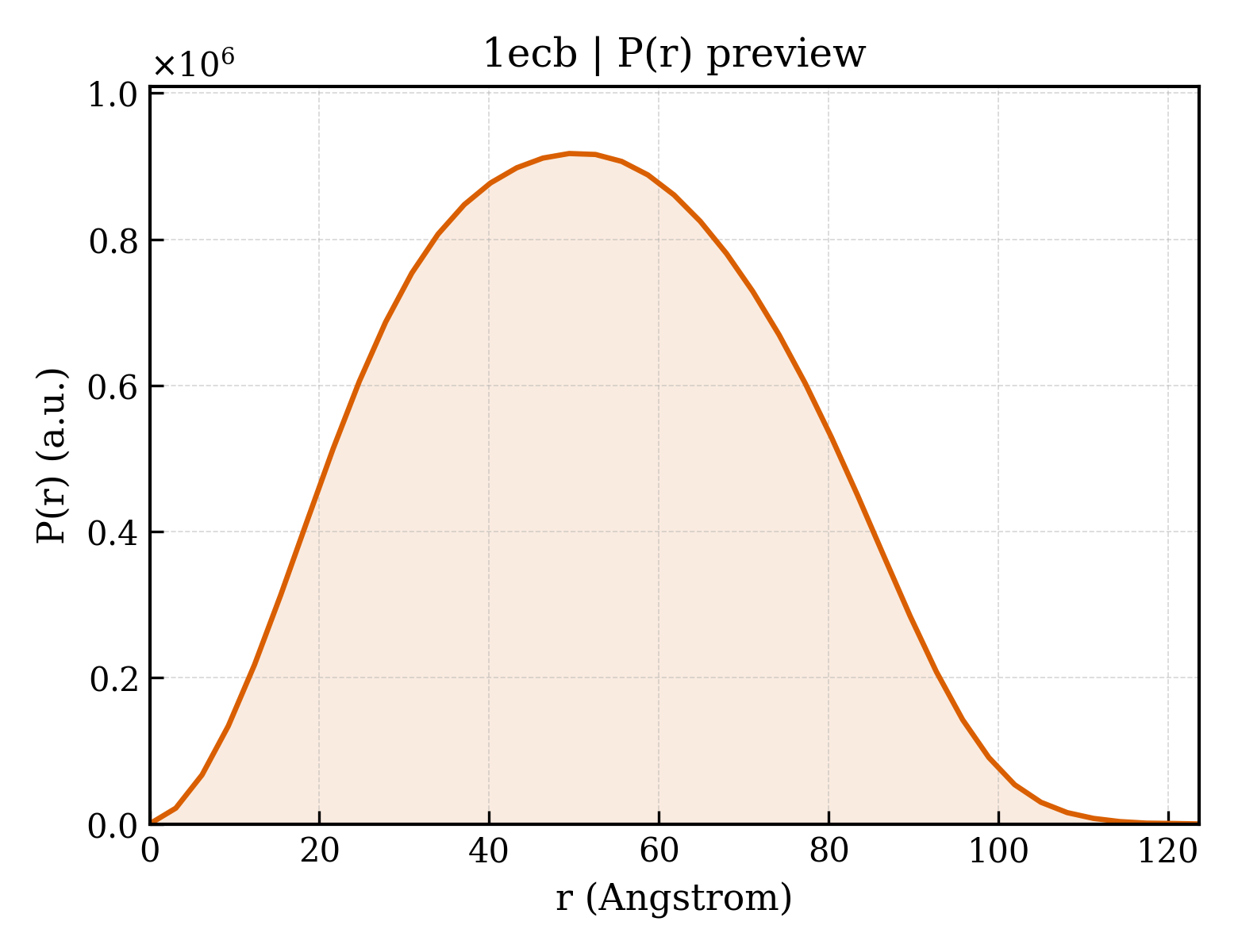

1ecb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.95 Å
Rg (electron density)	30.20 Å
Total Rg	30.72 Å
Atom count	7507
Residues	945
Excluded volume	132660 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ecb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ecb__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ecb__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ecb__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE AMIDOTRANSFERASE
Molecular weight formula_weight	56422.7 kDa
EC 编号 ec_number	2.4.2.14
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	15139

CGIVGIAGVMPVNQSIYDALTVLQHRGQDAAGIITIDANNCFRLRKANGLVSDVFEARHMQRLQGNMGIGHVRYPTAGSSSASEAQPFYVNSPYGITLAHNGNLTNAHELRKKLFEEKRRHINTTSDSEILLNIFASELDNFRHYPLEADNIFAAIAATNRLIRGAYACVAMIIGHGMVAFRDPNGIRPLVLGKRDIDENRTEYMVASESVALDTLGFDFLRDVAPGEAIYITEEGQLFTRQCADNPVSNPCLFEYVYFARPDSFIDKISVYSARVNMGTKLGEKIAREWEDLDIDVVIPIPETSCDIALEIARILGKPYRQGFVKNRYVGRTFIMPGQQLRRKSVRRKLNANRAEFRDKNVLLVDDSIVRGTTSEQIIEMAREAGAKKVYLASAAPEIRFPNVYGIDMPSATELIAHGREVDEIRQIIGADGLIFQDLNDLIDAVRAENPDIQQFECSVFNGVYVTKDVDQGYLDFLDTLRNDDAKAVQRQNEVENLEMHNEG

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	363.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ecba1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecba2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1ecbb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecbb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1ecbc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecbc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1ecbd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecbd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

CATH v4.4 (8 domains)

Domain ID domain_id	1ecbA01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecbA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1ecbB01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecbB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1ecbC01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecbC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1ecbD01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecbD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

▶

Unit-cell length a length_a	95.800 Å
Unit-cell length b length_b	113.200 Å
Unit-cell length c length_c	199.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2080
R_work r_work	0.2080
R_free r_free	0.2910

ESCHERICHIA COLI GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE (PRPP) AMIDOTRANSFERASE COMPLEXED WITH 2 GMP, 1 MG PER SUBUNIT
