SAXSdb — 1ecg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE AMIDOTRANSFERASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	5-OXO-L-NORLEUCINE × 4 ;PIPERAZINE-N,N'-BIS(2-ETHANESULFONIC ACID) ; × 12 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PUR1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–504； UniProt 1–504 Author chain B； PDBConstruct 1–504； UniProt 1–504

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ecg
Deposition date deposition_date	1996-04-23
Structure title title	DON INACTIVATED ESCHERICHIA COLI GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE (PRPP) AMIDOTRANSFERASE
Keywords keywords	PURINE BIOSYNTHESIS, TRANSFERASE, GLYCOSYLTRANSFERASE, GLUTAMINE AMIDOTRANSFERASE, TRANSFERASE (GLUTAMINE AMIDOTRANSFERASE); TRANSFERASE (GLUTAMINE AMIDOTRANSFERASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ecg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ecg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

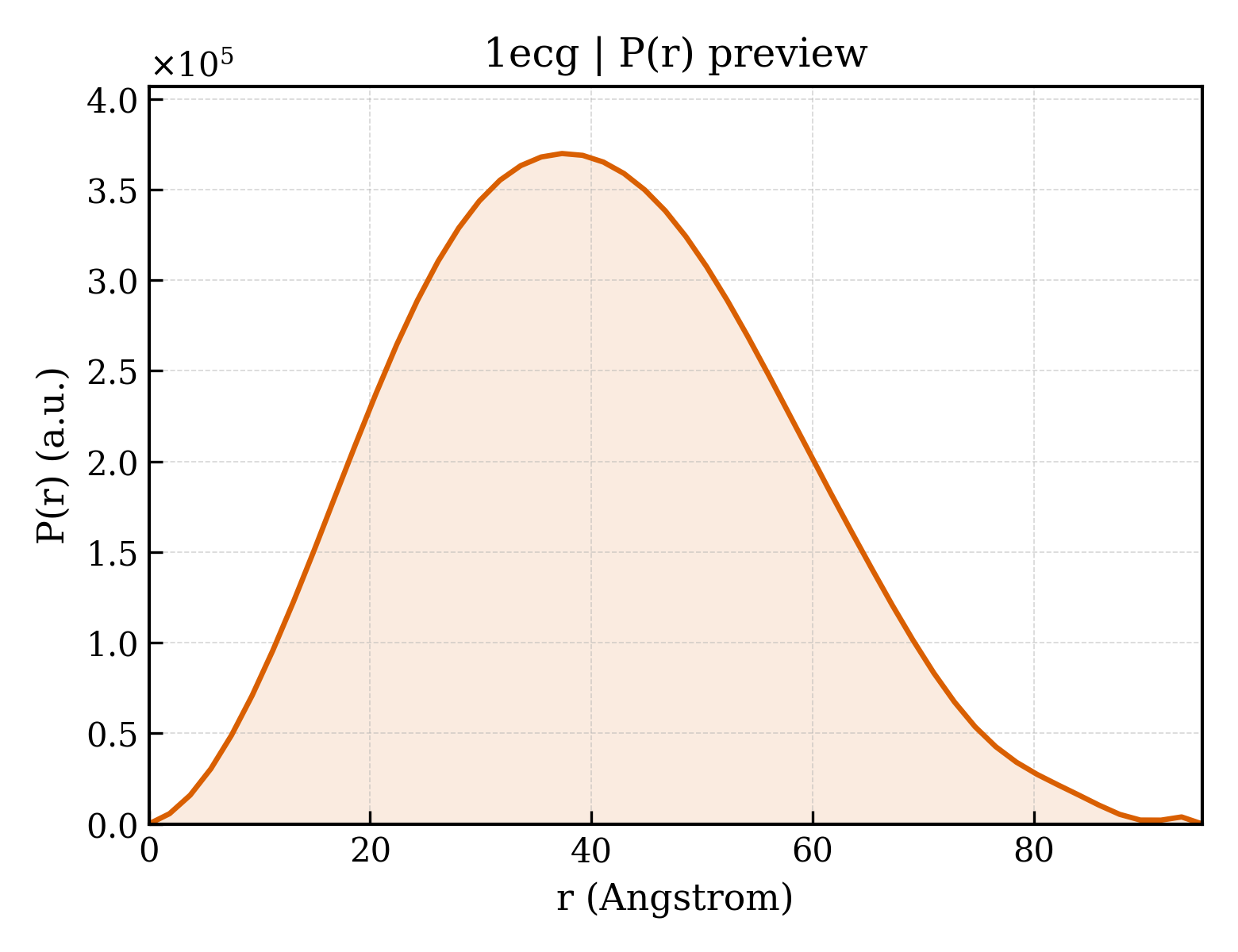

1ecg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.13 Å
Rg (electron density)	38.60 Å
Total Rg	38.88 Å
Atom count	15788
Residues	1984
Excluded volume	279350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ecg__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GLUTAMINE PHOSPHORIBOSYLPYROPHOSPHATE AMIDOTRANSFERASE
Molecular weight formula_weight	56422.7 kDa
EC 编号 ec_number	2.4.2.14
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9126

CGIVGIAGVMPVNQSIYDALTVLQHRGQDAAGIITIDANNCFRLRKANGLVSDVFEARHMQRLQGNMGIGHVRYPTAGSSSASEAQPFYVNSPYGITLAHNGNLTNAHELRKKLFEEKRRHINTTSDSEILLNIFASELDNFRHYPLEADNIFAAIAATNRLIRGAYACVAMIIGHGMVAFRDPNGIRPLVLGKRDIDENRTEYMVASESVALDTLGFDFLRDVAPGEAIYITEEGQLFTRQCADNPVSNPCLFEYVYFARPDSFIDKISVYSARVNMGTKLGEKIAREWEDLDIDVVIPIPETSCDIALEIARILGKPYRQGFVKNRYVGRTFIMPGQQLRRKSVRRKLNANRAEFRDKNVLLVDDSIVRGTTSEQIIEMAREAGAKKVYLASAAPEIRFPNVYGIDMPSATELIAHGREVDEIRQIIGADGLIFQDLNDLIDAVRAENPDIQQFECSVFNGVYVTKDVDQGYLDFLDTLRNDDAKAVQRQNEVENLEMHNEG

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	5-OXO-L-NORLEUCINE
Molecular weight formula_weight	145.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	;PIPERAZINE-N,N'-BIS(2-ETHANESULFONIC ACID) ;
Molecular weight formula_weight	302.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	979

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ecga1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecga2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1ecgb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1ecgb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

CATH v4.4 (4 domains)

Domain ID domain_id	1ecgA01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecgA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1ecgB01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1ecgB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

▶

Unit-cell length a length_a	116.900 Å
Unit-cell length b length_b	157.500 Å
Unit-cell length c length_c	106.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1470
R_work r_work	0.1470
R_free r_free	0.2290
