1eef

HEAT-LABILE ENTEROTOXIN B-PENTAMER COMPLEXED WITH BOUND LIGAND PEPG

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (HEAT-LABILE ENTEROTOXIN B CHAIN)

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	alpha-D-galactopyranose × 5 2-PHENETHYL-2,3-DIHYDRO-PHTHALAZINE-1,4-DIONE × 2 water × 5	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 5	alpha-D-galactopyranose × 5 2-PHENETHYL-2,3-DIHYDRO-PHTHALAZINE-1,4-DIONE × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELBP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–103； UniProt 22–124 Author chain E； PDBConstruct 1–103； UniProt 22–124 Author chain F； PDBConstruct 1–103； UniProt 22–124 Author chain G； PDBConstruct 1–103； UniProt 22–124 Author chain H； PDBConstruct 1–103； UniProt 22–124 Author chain L； PDBConstruct 1–103； UniProt 22–124 Author chain M； PDBConstruct 1–103； UniProt 22–124 Author chain N； PDBConstruct 1–103； UniProt 22–124 Author chain O； PDBConstruct 1–103； UniProt 22–124 Author chain P； PDBConstruct 1–103； UniProt 22–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1eef
Deposition date deposition_date	2000-01-31
Structure title title	HEAT-LABILE ENTEROTOXIN B-PENTAMER COMPLEXED WITH BOUND LIGAND PEPG
Keywords keywords	ENTEROTOXIN, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1eef__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1eef__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

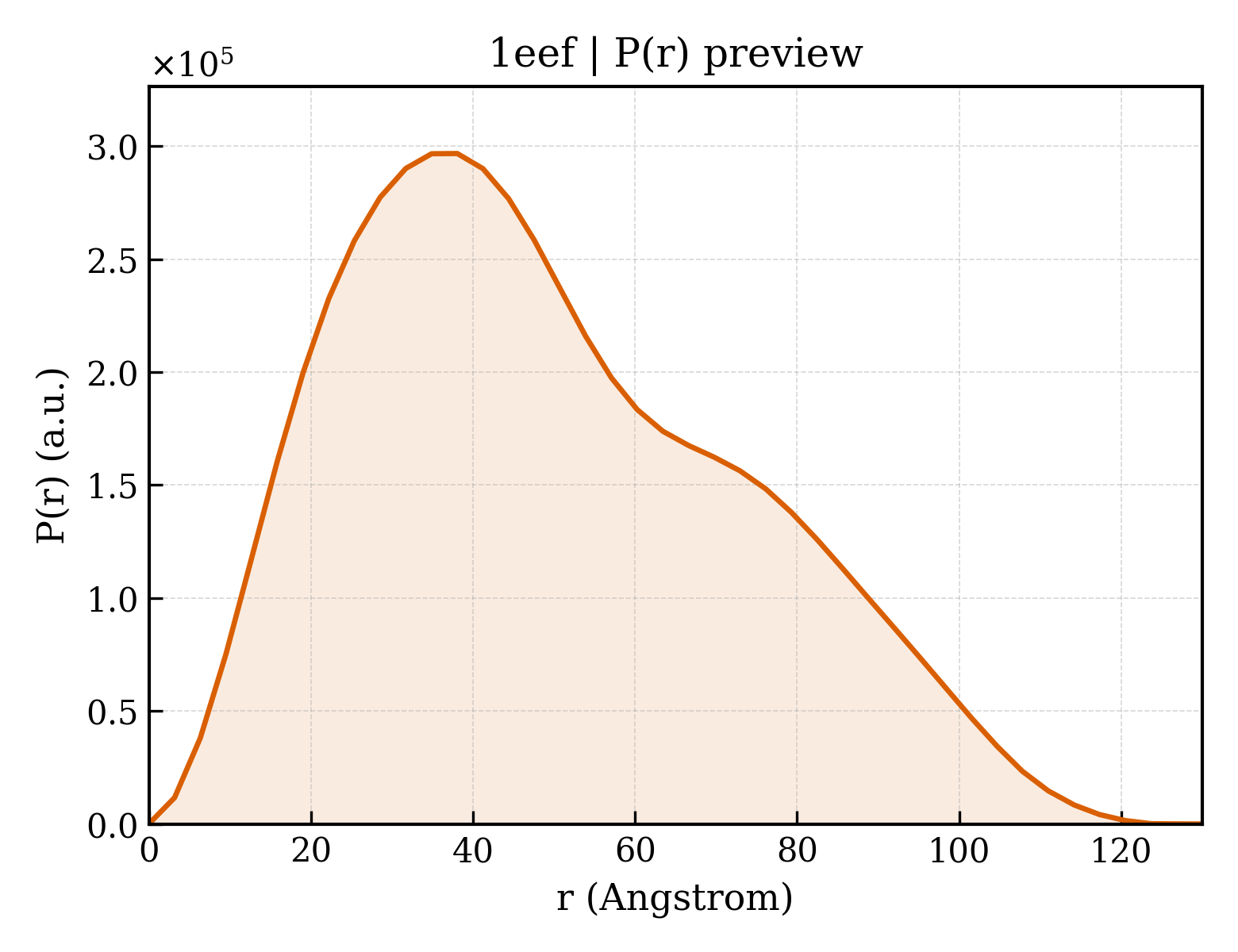

1eef__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.52 Å
Rg (electron density)	23.24 Å
Total Rg	24.00 Å
Atom count	4220
Residues	515
Excluded volume	75714 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1eef__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1eef__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (HEAT-LABILE ENTEROTOXIN B CHAIN)
Molecular weight formula_weight	11807.5 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F,G,H,L,M,N,O,P
Atom count atom_count	9523

APQTITELCSEYRNTQIYTINDKILSYTESMAGKREMVIITFKSGETFQVEVPGSQHIDSQKKAIERMKDTLRITYLTETKIDKLCVWNNKTPNSIAAISMKN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	alpha-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	10

Entity 3 Entity 3 non-polymer

Description description	2-PHENETHYL-2,3-DIHYDRO-PHTHALAZINE-1,4-DIONE
Molecular weight formula_weight	266.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1083

▼

6. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (10 domains)

Domain ID domain_id	d1eefd_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefe_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eeff_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefg_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefh_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefl_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefm_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefn_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefo_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d1eefp_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

CATH v4.4 (10 domains)

Domain ID domain_id	1eefD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefE00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefF00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefG00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefH00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefL00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefM00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefN00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefO00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1eefP00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

▶

Unit-cell length a length_a	88.540 Å
Unit-cell length b length_b	65.020 Å
Unit-cell length c length_c	101.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	115.47 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	22.000 Å
R factor r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2670
