1jqy
HEAT-LABILE ENTEROTOXIN B-PENTAMER WITH LIGAND BMSC-0010
SAXS 散射曲线 SAXS Profile

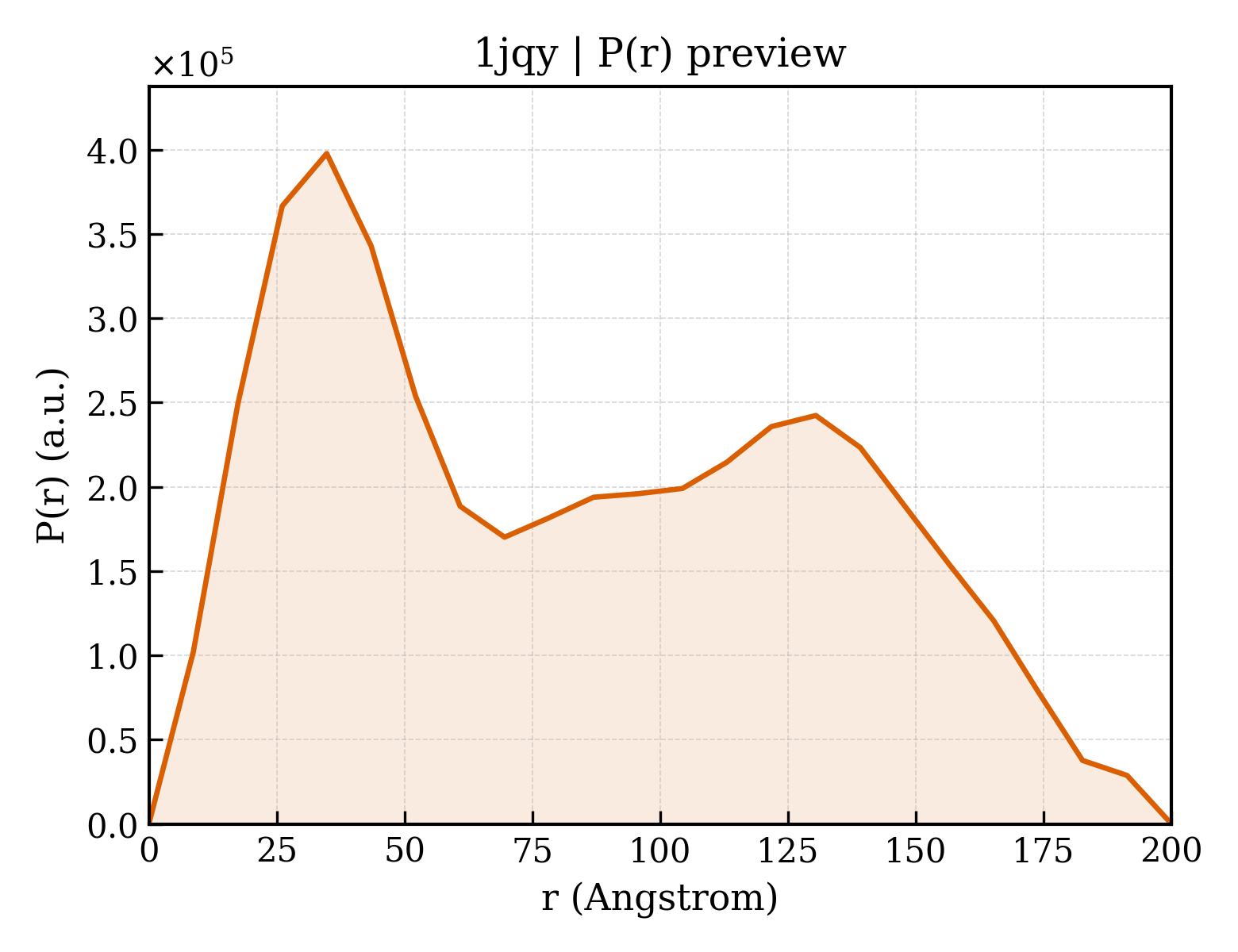

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1jqy |
| 沉积日期 deposition_date | 2001-08-09 |
| 结构标题 title | HEAT-LABILE ENTEROTOXIN B-PENTAMER WITH LIGAND BMSC-0010 |
| 关键词 keywords | ENTEROTOXIN, RECEPTOR, LIGAND, B-PENTAMER, TOXIN; TOXIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 67.91 Å |
| 回转半径 Rg (电子) rg_electron | 68.48 Å |
| 零角强度 I(0) i0 | 477242000.00 |
| 分子量 molecular_weight | 183520.0 kDa |
| 排除体积 excluded_volume | 229830 ų |
| 包络体积 envelope_volume | 353750 ų |
| 水化壳体积 shell_volume | 45907 ų |
| 包络直径 envelope_diameter | 213.4 Å |
| 壳层 Rg shell_rg | 64.15 Å |
| 包络 Rg envelope_rg | 64.68 Å |
| 形状 Rg shape_rg | 68.48 Å |
| 总 Rg total_rg | 68.39 Å |
| 总原子数 total_atoms | 12822 |
| 残基数 n_residues | 1545 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 200.1 Å |
| Rg (实空间) rg_real | 68.37 Å |
| Rg 误差 (实空间) rg_real_error | 2.49 Å |
| I(0) (实空间) i0_real | 4.7720e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.0150e+07 |
| Rg (倒空间) rg_reciprocal | 66.00 Å |
| I(0) (倒空间) i0_reciprocal | 475100000.0000 |
| 解质量估计 total_estimate | 0.5862 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 34.8 Å |
| 偏度 Skewness skewness | 0.258 |
| 峰度 Kurtosis kurtosis | -1.168 |
| 角度范围 angular_range | — – 0.1150 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 8400000.0000 |
| 实空间数据点数 n_real_points | 24 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.162; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.135; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 30 domains
SCOP 2.08 (15 domains)
| 结构域编号 domain_id | d1jqyd_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqye_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyf_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyg_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyh_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyl_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqym_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyn_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyo_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyp_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyv_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyw_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyx_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyy_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
| 结构域编号 domain_id | d1jqyz_ |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.40 — OB-fold |
| 超家族 Superfamily superfamily | b.40.2 — Bacterial enterotoxins |
| 家族 Family family | b.40.2.1 — Bacterial AB5 toxins, B-subunits |
CATH v4.4 (15 domains)
| 结构域编号 domain_id | 1jqyD00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyE00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyF00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyG00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyH00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyL00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyM00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyN00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyO00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyP00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyV00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyW00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyX00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyY00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
| 结构域编号 domain_id | 1jqyZ00 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P) |
| 同源超家族 H-superfamily homologous superfamily | 110 — |
