1eh1
RIBOSOME RECYCLING FACTOR FROM THERMUS THERMOPHILUS
SAXS Profile

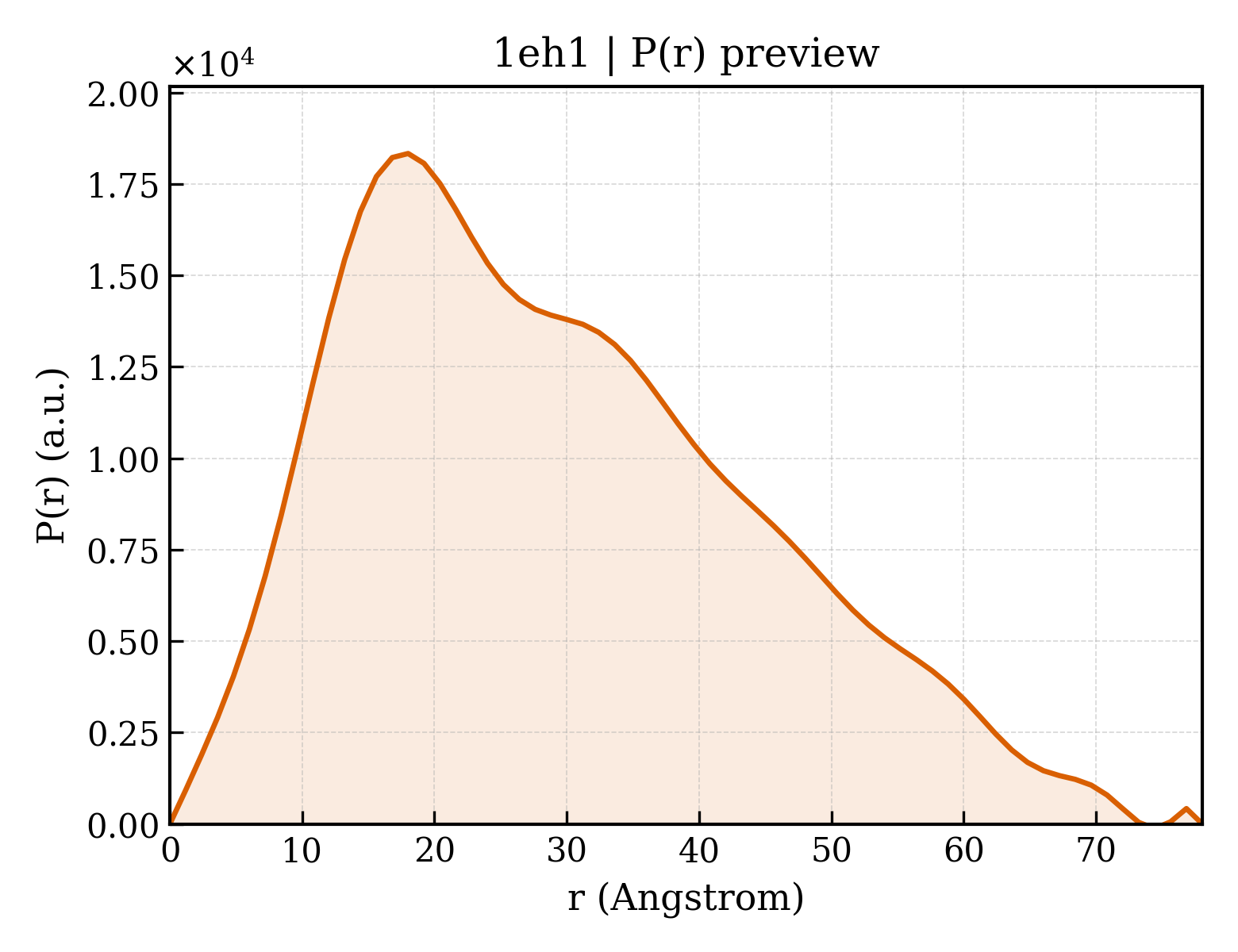

P(r) Distribution
1. Structure Basics
| entry_id | 1eh1 |
| deposition_date | 2000-02-18 |
| title | RIBOSOME RECYCLING FACTOR FROM THERMUS THERMOPHILUS |
| keywords | TRANSLATION, RIBOSOME, HINGE VARIABILITY; RIBOSOME |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.96 Å |
| rg_electron | 22.69 Å |
| i0 | 8012550.00 |
| molecular_weight | 20994.0 kDa |
| excluded_volume | 26349 ų |
| envelope_volume | 33332 ų |
| shell_volume | 13705 ų |
| envelope_diameter | 81.8 Å |
| shell_rg | 26.84 Å |
| envelope_rg | 22.82 Å |
| shape_rg | 22.68 Å |
| total_rg | 23.33 Å |
| total_atoms | 1478 |
| n_residues | 185 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 78.0 Å |
| rg_real | 23.23 Å |
| rg_real_error | 0.66 Å |
| i0_real | 8.0130e+06 |
| i0_real_error | 1.0310e+05 |
| rg_reciprocal | 23.17 Å |
| i0_reciprocal | 8012000.0000 |
| total_estimate | 0.7219 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 18.0 Å |
| skewness | 0.525 |
| kurtosis | -0.419 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2977000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.635; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.477; Smooth: 0.000 |
