1em7
HELIX VARIANT OF THE B1 DOMAIN FROM STREPTOCOCCAL PROTEIN G

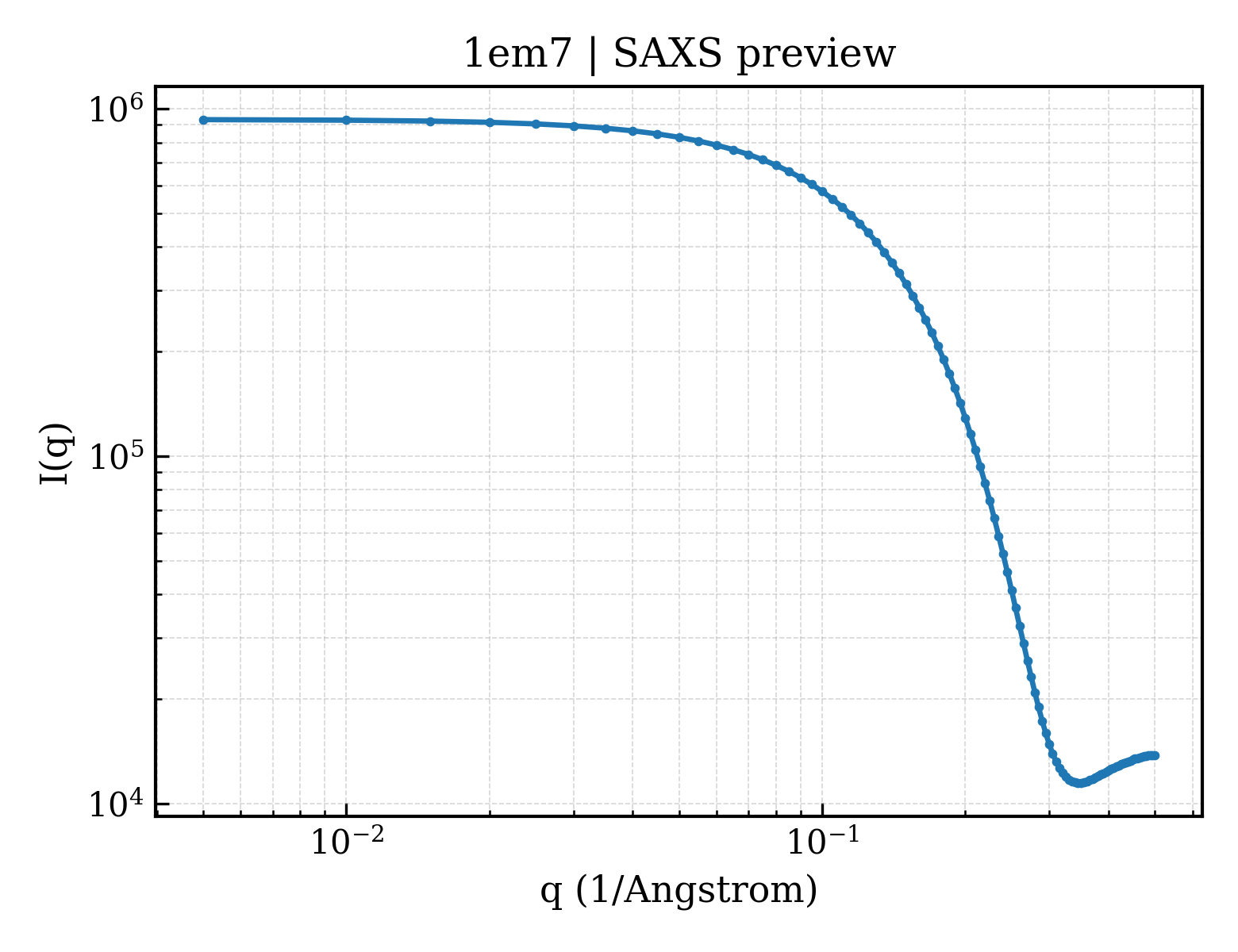

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1em7 |
| deposition_date | 2000-03-16 |
| title | HELIX VARIANT OF THE B1 DOMAIN FROM STREPTOCOCCAL PROTEIN G |
| keywords | helix propensity, helix dipole interaction, protein design, protein G, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.93 Å |
| rg_electron | 10.55 Å |
| i0 | 932165.00 |
| molecular_weight | 6277.0 kDa |
| excluded_volume | 7851 ų |
| envelope_volume | 8537 ų |
| shell_volume | 7264 ų |
| envelope_diameter | 39.6 Å |
| shell_rg | 15.55 Å |
| envelope_rg | 10.93 Å |
| shape_rg | 10.48 Å |
| total_rg | 12.13 Å |
| total_atoms | 443 |
| n_residues | 56 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.6 Å |
| rg_real | 11.88 Å |
| rg_real_error | 0.31 Å |
| i0_real | 9.3220e+05 |
| i0_real_error | 9.5580e+03 |
| rg_reciprocal | 11.88 Å |
| i0_reciprocal | 932200.0000 |
| total_estimate | 0.8520 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.7 Å |
| skewness | 0.205 |
| kurtosis | -0.216 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 174700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.698; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.985 |
